GYTS Single Mode Os1 Os2 G652 G657 Fiber Optic Cable

Minimum Order Quantity : 1000m Packaging Details : wooden drum
Delivery Time : 2-4day Payment Terms : Western Union, MoneyGram, T/T, L/C
Supply Ability : 100km per 2 day
Place of Origin: CHINA Brand Name: jiqian
Certification: ISO Model Number: GYTS

Detail Information

Fiber Type: G657A1/A2/G652D/G657A1/G657A2 Oem: Available
Application: Aerial/duct Number Of Conductors: 72 96
Structure: Stranded Loose Tube Operating Temperature: -40 ~ +60 C
High Light:

G657 Fiber Optic Cable

,

Os2 Fiber Optic Cable

,

G652 Duct Fiber Optic Cable

Product Description

Anti Rodent Armored stranded loose tube Single Mode Outdoor Duct Optical Fiber Cable GYTS









Optical and mechanical characteristics of fiber

MFD(1310nm) 9.2mm±0.4mm
MFD(1550nm) 10.4mm±0.8mm
Cladding diameter 125mm±1.0mm
Fiber diameter 250 ± 15 mm (Colored)
Core/cladding concentricity error £0.6mm
MFD concentricity error £0.8mm
Cladding non circularity £1.0%
Cut off wavelength £1260nm
Attenuation coefficient 1310nm: £0.35dB/km
1550nm: £0.21dB/km
Bending-loss performance of optical fiber £0.05dB
Polarization mode dispersion £0.1ps/Ökm
Zero-dispersion wavelength 1300 – 1324 nm
Zero-dispersion slope £0.092ps/(nm2•km)

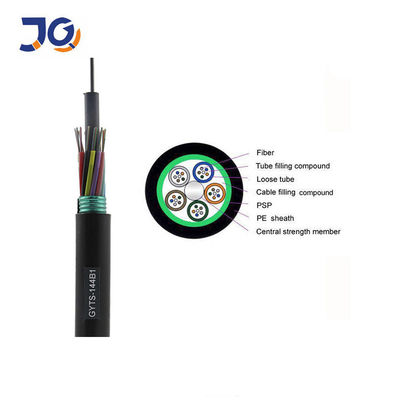

GYTS Single Mode Os1 Os2 G652 G657 Fiber Optic Cable 0

Mechanical requirements and methods of fiber cable

Tensile strength 1500N, conform to IEC 60794-1-E1 while fiber strain is ≤0.33%
Crush 1000N/100mm, conform to IEC 60794-1-E3
Impact conform to IEC 60794-1-E4
Repeated bending conform to IEC 60794-1-E6
Torsion conform to IEC 60794-1-E7
Flexing conform to IEC 60794-1-E8
Kink conform to IEC 60794-1-E10
Cable bend conform to IEC 60794-1-E11
Temperature cycling test conform to IEC 60794-1-F1
Water penetration conform to IEC 60794-1-F5B
Spark test voltage Spark test voltage of cable outer jacket will be no less than 8kV AC

Fiber:

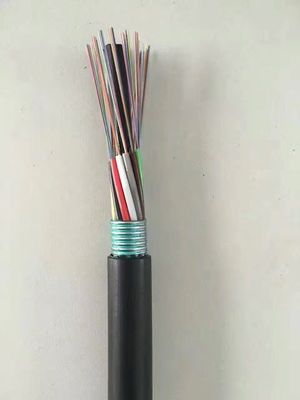

GYTS Single Mode Os1 Os2 G652 G657 Fiber Optic Cable 1

Feature:

1.Good performance under mechanical stress.

2.Loose tube gel-filled construction for superior fiber protection.

3.Longitudinal corrugated steel tape is laminated at both side and bonded to PE outer jacket, it ensures not only radial moisture-proof but also 4.reinforces the crush resistance of fiber optical cable.

5.UV and waterproof design.



GYTS Single Mode Os1 Os2 G652 G657 Fiber Optic Cable 2











GYTS Single Mode Os1 Os2 G652 G657 Fiber Optic Cable 3






COMPANY PROFILE:
Guangzhou jiqian fiber optical cable co., LTD is located in guangzhou city, guangdong province mingying west 2 road industrial zone, xintang town, is a collection of scientific research, development, production, sales for the integration of large-scale specialization of high-tech joint-stock enterprise, specializing in the production of various specifications of 2-288 core cable.

FAQ:

1. Are you the real manufacturer?

Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?

1KM. We support new project of our customers, trial order is available

3.Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.

5.Delivery time?

Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?

Yes, we supply OEM&ODM service, pls feel free to contact.GYTS Single Mode Os1 Os2 G652 G657 Fiber Optic Cable 4
