GYTY53 GYFTY53 48 96 Direct Buried Single Armor Double Jacket Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 1000m | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 2-4day | Payment Terms : | Western Union, MoneyGram, T/T, L/C |
| Supply Ability : | 100km per 2 day |
| Place of Origin: | CHINA | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | ISO9001 ROHS CE-EMC FCC SDOC | Model Number: | GYFTY53 |
|
Detail Information |
|||
| Fiber Type: | G657A1/A2/G652D/G657A1/G657A2 | Oem: | Available |
|---|---|---|---|
| Application: | Direct Bury | Number Of Conductors: | 48 96 72 96 |
| Structure: | Stranded Loose Tube | Operating Temperature: | -40 ~ +60 C |
| Cable Diameter:: | 9.6mm | ||
| High Light: | GYTY53 direct burial fiber optic cable,SDOC direct burial fiber optic cable,9.6mm optical fibre underground cable |
||
Product Description
The Underground Direct Buried Fiber Optic Cable GYFTY53 are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including direct buried. With fiber counts up to 288 and S-Z strand designs.
· Good mechanical and temperature performance
· High strength looes tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· The following measures are taken to ensure the cable watertight:
- Steel wire used as the central strength member
- Loose tube filling compound
- 100% cable core filling- APL moisture barrier
- PSP enhancing moisture-proof Water-blocking materialGYTY53 cable complies with Standard YD/T 901-2001as well as IEC 60794
-40℃ to + 70℃
Application
Underground Direct burial

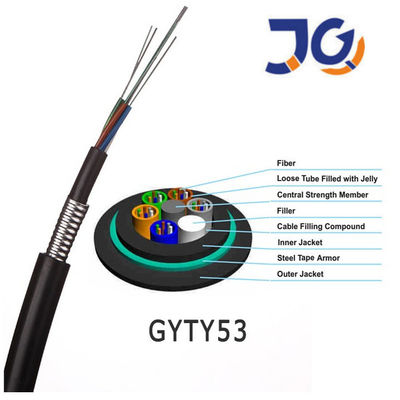

Cable performance
| Item | Parameters | |
|
Loose tube |
Material | PBT |
| Color | All colors display | |
| Filler | Material | PE |
| Color | Black | |
| CSM | Material | Steel wire |
| Inner jacket | Material | MDPE |
| Color | Black | |
| Outer armoured | Material | Plastic coated steel strip |
| Outer jacket | Material | MDPE |
| Color | Black | |
| Min. bending radius | Static | 12.5 times cable diameter |
| Dynamic | 25 times cable diameter | |
|
Repeating bending |
Load:150N;number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage. |
|
| Tensile performance | Short term | 1500N |
| Crush | Short term | 3000N/100mm |
| Torsion | Load:150N; number of cycles:10; twist angle:±180° No obvious addition attenuation, no fiber break and no cable damage. | |
Dimensions of cable constructions
|
Fiber count |
Structure | Fibers per tube |
Loose tube diameter (mm) |
diameter/pad diameter (mm) |
Thickness of Inner jacket (mm) |
Thickness of outer jacket (mm) |
Cable diameter (mm) |
Cable weight (kg/km) |
| 12 | 1+6 | 6 | 1.8 ±0.1 | 2.2 /2.2 | 0.9±0.1 | 1.6±0.1 | 12.4 ±0.5 | 138 |
| 24 | 1+6 | 6 | 1.8 ±0.1 | 2.2 /2.2 | 0.9±0.1 | 1.6±0.1 | 12.4 ±0.5 | 140 |
| 48 | 1+6 | 12 | 2.0±0.1 | 2.3 /2.3 | 0.9±0.1 | 1.6±0.1 | 12.9 ±0.5 | 152 |
| 96 | 1+8 | 12 | 2.0±0.1 | 2.6/3.5 | 0.9±0.1 | 1.6±0.1 | 14.1 ±0.5 | 182 |
| 144 | 1+12 | 12 | 2.0±0.1 | 3.0 /6.3 | 0.9±0.1 | 1.6±0.1 | 16.9 ±0.5 |
256 |
