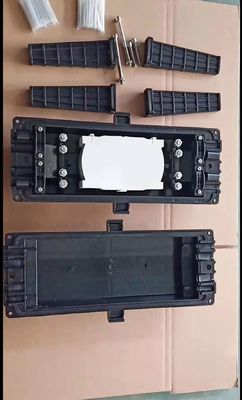

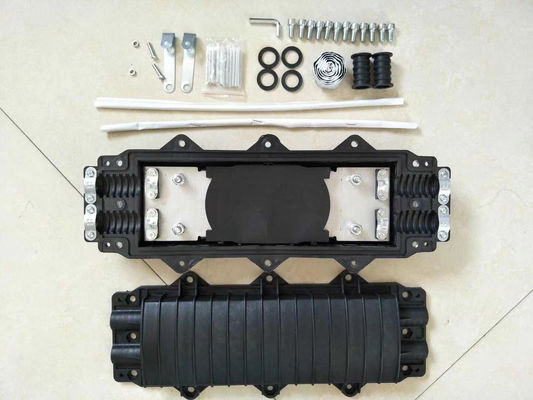

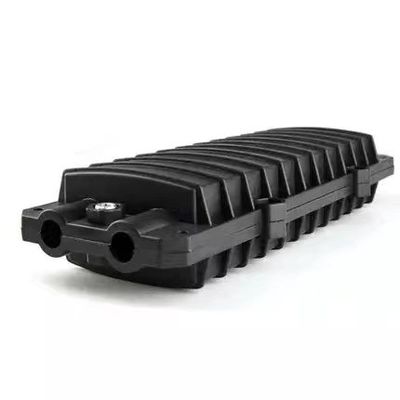

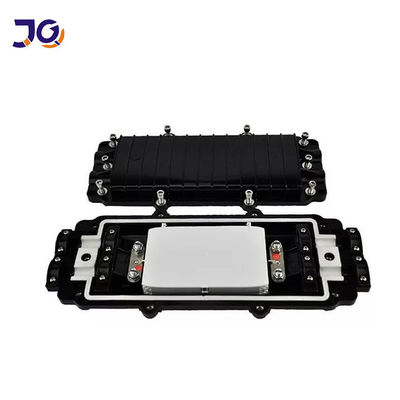

FTTH FTTB FTTX Mechanical Seal Dome Fiber Optic Splice Closure

Product Description

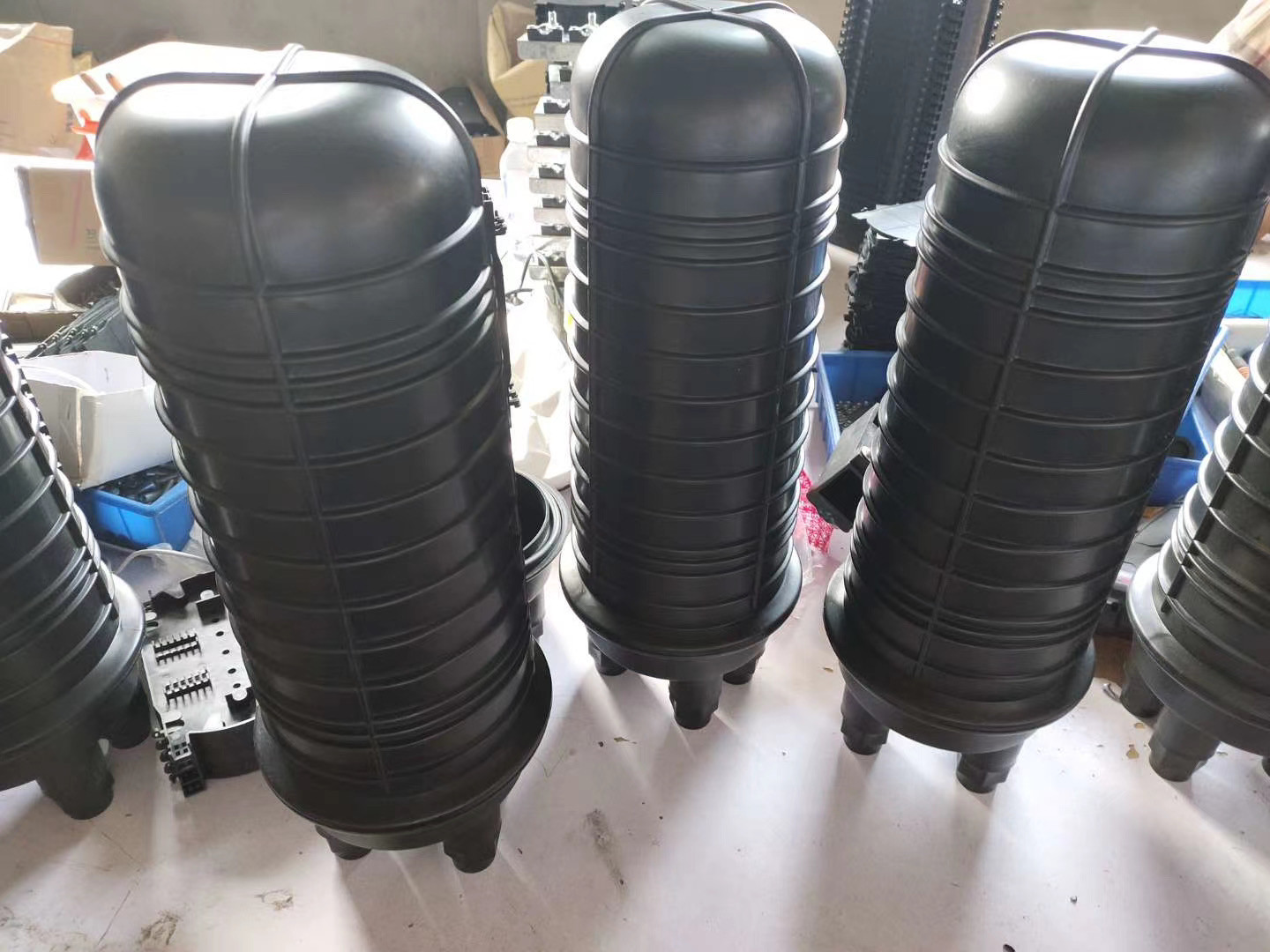

Vertical Type Mechanical Seal Dome Horizontal Type Fiber Optic Splice Closure Box

Fiber Optic Splice Closure Features:

1, Four- way cable entries and exists design

2, Can be reopened

3, Can be fixed by metal work

4, Clear optical fiber cable

5. Closure body is made by Super ABS material, and the bolt was made in stainless steel

6 Great corrosion resistance

7. Suitable for any harsh environment

8. Max capacity:144 cores

9. All the index reach the YD/T814-2004

Fiber Optic Splice Closure Installation procedure:

1. Open the closure

2. Fix the cable and check its length in the closure

3. Strip off the cable and cable jacket

4. Seek out the cable cores and get preparation for cable fixation

5. Fix the strengthen cores and reorganize the extra cores

6. Fix the cable an splice the cable

7. Arrange the splice protective tube and fiber

8. Complete inspection

9. Install the dome.

Fiber Optic Splice Closure Uses and properties:

It is belonged to open structure airproof tie-in system of machine pressure.

It is used for the protective connection between two or more optical cables

Suitable for single core fiber optic cable and ribbon fiber optic cable

Fiber Optic Splice Closure Shipping:

1.Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)

2.Airport to Airport: by air

3. Seaport to Seaport: by sea (our factory is in Guangzhou city.)
