Non-Metal GYFTY53 Underground Fiber Optic Cable

Contact Now

Non-Metal GYFTY53 Underground Fiber Optic Cable

Minimum Order Quantity :	1km	Packaging Details :	wooden drum
Delivery Time :	5-8 work days	Payment Terms :	L/C, T/T, Western Union
Supply Ability :	30km per day

Place of Origin:	Guangzhou,China	Brand Name:	JQ/OEM
Certification:	ISO9001

Detail Information
Model Number:	GYFTY53-24 Core	Fiber Count:	2-288 Cores
Fiber Type:	YOFC,Fiberhome Or Request	Jacket:	PE
Color:	Black	Product Name:	Outdoor Fiber Optic Cable
Structure:	Loose Tube	Installation:	Aerial Or Duct
Strength Member:	FRP	Oem:	Available
Operating Temperature:	-40 ~ +60 C
High Light:	GYFTY53 Underground Fiber Optic Cable , Non-Metallic Underground Fiber Optic Cable , GYFTY53 buried fiber optic cable

Product Description

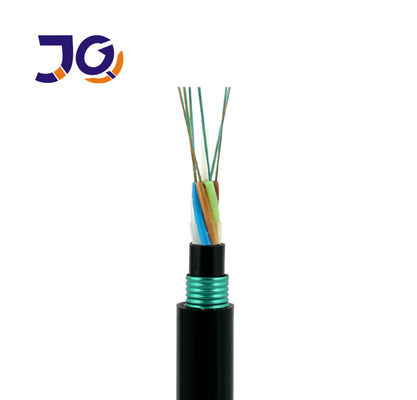

Fiber Optic Cable Outdoor Stranded Loose Tube GYFTY53 Non-Metal Fiber Optic Cable

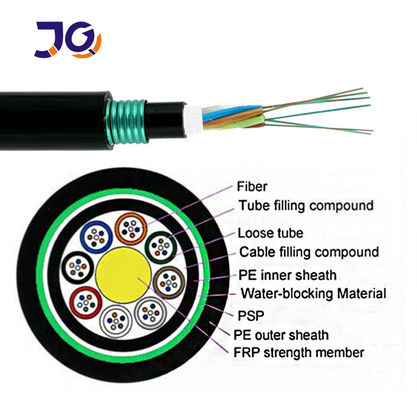

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. Then the cable core is covered with a thin polyethylene (PE) inner sheath, which is filled with jelly to protect it from water ingress. A layer of water-blocking material is applied around the cable core to prevent water ingress all the same. After a corrugated steel tape armor is applied, the cable is completed with a PE outer sheath.

Features

Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
The following measures are taken to ensure the cable watertight:
Single Fiber Reinforced Plastic as the central strength member
Loose tube filling compound
100% cable core filling
PSP enhancing moisture-proof
Water-blocking material

Optical Characteristics

G.652D

50/125um

625/125μm

Attenuation

@850nm

≤3.0dB/km

(+20°C)

@1300nm

≤1.0dB/km

@1310nm

≤0.36dB/km

@1550nm

≤0.22dB/km

Bandwidth(ClassA)

@850nm

2500MHz-km

2200MHz-km

@1300nm

21000MHz-km

2600MHz-km

NumericalAperture

0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelength λcc

≤1260nm

Cable Parameters

Items		Specifications
Fiber Count		24fibers
Colored Coating Fiber	Dimension	250μm+15μm
Colored Coating Fiber	Color	Blue,Orange,Green,Brown,Gray,White
Loose Tube	Dimension	2.0mm±0.05mm
	Material	PBT
	Color	Natural
Strength Member	Diameter	2.0mm±0.2mm
Strength Member	Material	FRP
Double Outer Jacket	Dimension	10.0mm±0.2mm
	Material	PE
	Color	Black

Technical Data

Fiber count

Nominal

Diameter(mm)

Nominal

weight(kg/km)

Max

Fibers per

Tube

No.of

(Tube+fillers)

AllowableTensile Load

(N/100mm)

Allowable Crush

Resistance(N/100mm)

short

Term

long

term

short

Term

long term

2~36

10.2

125

3000

1000

3000

1000

36~72

15.1

212

3000

1000

3000

1000

74~96

16.3

246

3000

1000

3000

1000

98~120

17.8

288

3000

1000

3000

1000

122~144

19.4

336

3000

1000

3000

1000

>144

Design according to the customer request

Application

Used for Interbuilding voice or data communication backbone,Installed in duct,underground conduit.

Packing

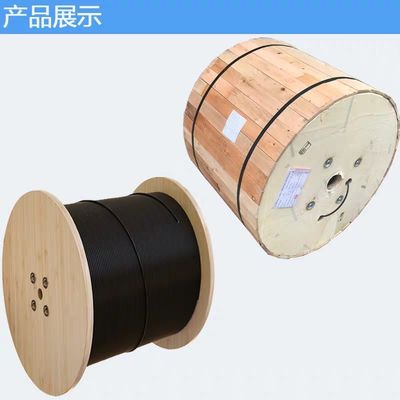

1/2/3/4km or customized length export wooden drum

FAQ

1.Are you tradning company or manufacturer?

We are the manufacturer with 10 years' experience ,we are specialized in research,development and production

for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?

We will delivery before tested every fibers when finished production.

After price confirmation, you can require for free samples to check our quality.

3.Can you accept small order?

Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?

Usually about 3-7days working days,it mainly depend on order quantity.

But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?

Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
