LSZH Self Supporting Figure 8 FTTH Fiber Optic Drop Cable
LSZH Self Supporting Figure 8 FTTH Fiber Optic Drop Cable LSZH Self Supporting Figure 8 FTTH Fiber Optic Drop Cable LSZH Self Supporting Figure 8 FTTH Fiber Optic Drop Cable
Contact Now

LSZH Self Supporting Figure 8 FTTH Fiber Optic Drop Cable

Minimum Order Quantity : 1000m Packaging Details : package carton
Delivery Time : 2-4day Payment Terms : Western Union, MoneyGram, T/T, L/C
Supply Ability : 100km per 2 day
Place of Origin: CHINA Brand Name: jiqian
Certification: ISO Model Number: GJXH GJXCH GJXFXCH

Detail Information
Material: LSZH /PVS Fiber Type: G657A1/A2/G652D/G657A1/G657A2
Color: White /black Central Strength Member: FRP Strength Member/steel Wire
Oem: Available Installation: FTTH
Core: 1 2 4 6
High Light:

Oem LSZH FTTH Fiber Optic Drop Cable

,

Self Supporting FTTH Fiber Optic Drop Cable

,

Figure 8 GJXFXCH optical fiber drop cable

Product Description

FTTH LSZH Self-Supporting Figure 8 Drop FTTH Fiber Optic Drop Cable

1. Soft and bendable, easy to deploy and maintenance.

2. Smaller diameter, Light weight, and high practicability.

3. Fiber reinforced plastic as the strength member ensures excellent anti-electromagnetic performance.

4. Environmental protection- Low smoke, zero halogen and flame retardant sheath.

Applications:

1. Used in access network or as access cable from outdoor to indoor in customer premises network;

2. Used as access building cable in premises distribution system, especially used in indoor or outdoor

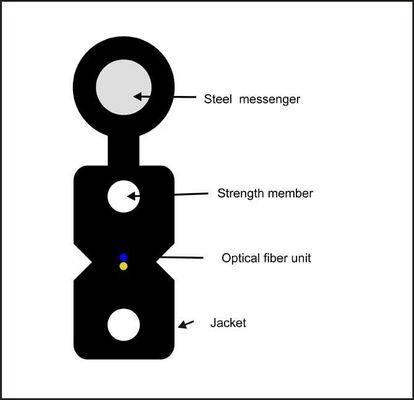

LSZH Self Supporting Figure 8 FTTH Fiber Optic Drop Cable 0



Optical Characteristics:

Item
Technology parameter
Cable type
GJYXCH-1B6
GJYXCH-2B6
GJYXCH-4B6
Cable specification
5.2×2.0
Fiber type
9/125 (G.657A2)
Fiber counts
1
2
4
Fiber color
Red
Blue, orange
Blue, orange, green, brown
Sheath color
Black
Sheath material
LSZH
Cable dimension mm
5.2(±0.2)*2.0(±0.2)
Cable weight Kg/km
Approx. 19.5
Min. bending radius mm
120
Min. bending radius mm
(Excluding messenger wire)
10 (Static)
25 (Dynamic)
Attenuation dB/km
≦ 0.4 at 1310nm, ≦ 0.3 at 1550nm
Short term tensile N
600
Long term tensile N
300
Short term crush N/100mm
2200
Long term crush N/100mm
1100
Operation temperature ℃
-20~+60

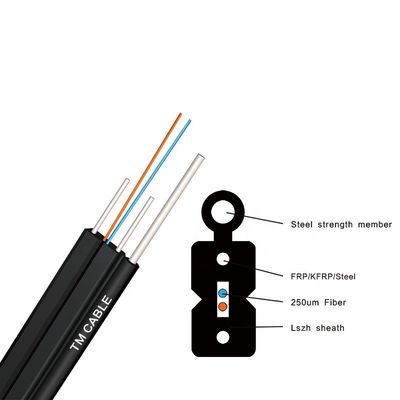

LSZH Self Supporting Figure 8 FTTH Fiber Optic Drop Cable 1

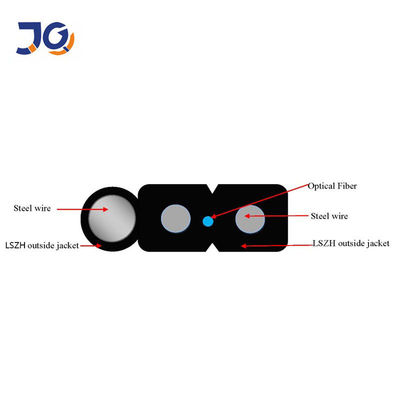

LSZH Self Supporting Figure 8 FTTH Fiber Optic Drop Cable 2
Factory:

LSZH Self Supporting Figure 8 FTTH Fiber Optic Drop Cable 3

Quantity:

LCD Delivery  <10000m <20000m <50000m >100000m
  25days  22days 18days  10days

COMPANY PROFILE:
Guangzhou jiqian fiber optical cable co., LTD is located in guangzhou city, guangdong province mingying west 2 road industrial zone, xintang town, is a collection of scientific research, development, production, sales for the integration of large-scale specialization of high-tech joint-stock enterprise, specializing in the production of various specifications of 2-288 core cable.

FAQ:

1. Are you the real manufacturer?

Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?

1KM. We support new project of our customers, trial order is available

3.Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.

5.Delivery time?

Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?

Yes, we supply OEM&ODM service, pls feel free to contact.
