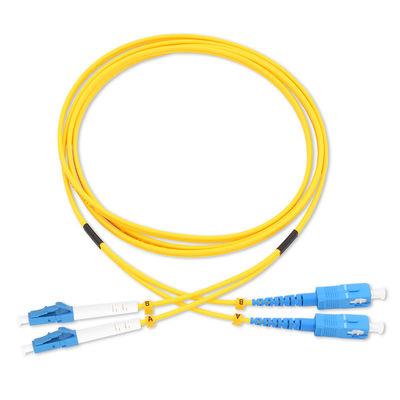

Duplex OS2 9/125um Sc To Lc Single Mode Fiber Optic Patch Cord

Minimum Order Quantity : 1km Packaging Details : Export Cartoon box
Delivery Time : 5-8 work days Payment Terms : Western Union, T/T, L/C,Alipay
Supply Ability : 1000pcs per day
Place of Origin: Guangzhou, China Brand Name: jiqian
Certification: ISO 9001 Model Number: SC-LC Patch Cord

Detail Information

Connector Type: SC-LC Or Hybrid Length: 1m 2m 3m Or Customized
Material: PVC/LSZH Color: Yellow
Item: Optical Fiber Patch Cord Repeatability: ≤ 0.2 DB
Fiber Count: Simplex Or Duplex Fiber Type: SM Or MM
Quality Control: 100% Test Before Shipping Real Factory: Yes
High Light:

9/125um Sc To Lc Single Mode Patch Cord

,

OS2 Sc To Lc Single Mode Patch Cord

,

9/125um sc to lc duplex patch cord

Product Description

Simplex & Duplex SC-LC Patch Cord SM OS2 9/125um PVC/LSZH Fiber Optic Patch Cord





Product Description

LC-SC Singlemode Duplex fiber optic patch cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected toCATV,an optical switch,or other telecommunication equipment. Having a thick layer of protection, it is used to connect the optical transmitter,optical receiver,and terminal box.This is known as "interconnect-style cabling".Fiber Optic Patch cords are ultra reliable components featuring low insertion loss and return loss. They come with your choice of simplex or duplex cable configuration .Extensive range of fiber patch cables are terminated with state of the art connectors and available in any combination of ST, SC, LC and MTRJ with PC, UPC or APC polish types to meet your standard or custom configurations.





Feature

Low Insertion loss

High return loss

Good Repeatability

Good Interchange

Excellent Environmental Adaptability





Optical Characteristics

Mode SM MM
Polish UPC APC APC
Insertion Loss Typical ≤0.2dB Maximum ≤0.3dB ≤0.25dB
Return Loss ≥50dB ≥65dB ≥35dB
Interchangeability ≤0.2dB
Repeatability ≤0.1dB
Durability ≤0.2dB(1000 times mating)
Tensile Strengh >10kg
Temperature ≤0.2dB (-40+85 sustain 100 hours)
Humidity ≤0.2dB(+25+65 93 R.H.100 hours)







Technical Data

Type



Standard,Master



Style



LC,SC,ST,FC.MU,DIN,D4,MPO,SC APC,FC/IAPC,LCIAPC.MU/APC



Fiber



Singlemode/Multimode

50/125,62.5/125 (Multimode) OM2&OM1

50/125,10G(Multimode)OM3



Cable



Simplex,Duplex

Φ3.0mm,Φ20mm,Φ0.9mm

PVC or LSZH



Polishing Manner



UPC,SPC,APC (8°&6°)



Insertion Loss



≤0.1dB(For Singlemode Master)

≤0.25dB(ForSinglemodeStandard)

≤0.25dB(ForMultimode)

Tested by JDSRM3750

ReturnLose (Singlemode)



UPC≥50dB

SPC≥55dB

APC≥60dB(typ.65dB)

Tested by JDSRM3750



Repeatability



±0.1dB



Operating temperature



-400C° to 850 C°



GeometryRequirement (Singlemode)



Ferrule Endface Radius

7mm≤R≤12mm(For APC)

10mm≤R≤25mm(For Standard)

Apex Offset≤30μm(For Master)

Apex Offset≤50μm(For Standard)

Under cut-50nmSU≤50nm

Tested by DORCZX-1



Application

Communication rooms

FTTH (Fiber to The Home)

LAN  (Local Area Network)

FOS(fiber optic sensor)

Fiber Optic Communication System

Optical fiber connected and transmitted equipment



Recommed Products

Duplex OS2 9/125um Sc To Lc Single Mode Fiber Optic Patch Cord 0

Duplex OS2 9/125um Sc To Lc Single Mode Fiber Optic Patch Cord 1

Duplex OS2 9/125um Sc To Lc Single Mode Fiber Optic Patch Cord 2





Packing & Delivery



Packing:100/Pcs in one Carton box or OEM.

Shipment:by Sea,by Air,by Express:DHL/UPS/Fedex/EMS/TNT etc

Deliverty: 3-5 days after payment dowm,According to ur order quantity.

Duplex OS2 9/125um Sc To Lc Single Mode Fiber Optic Patch Cord 3





Duplex OS2 9/125um Sc To Lc Single Mode Fiber Optic Patch Cord 4





Factory Pictures







FAQ

1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.

3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .
