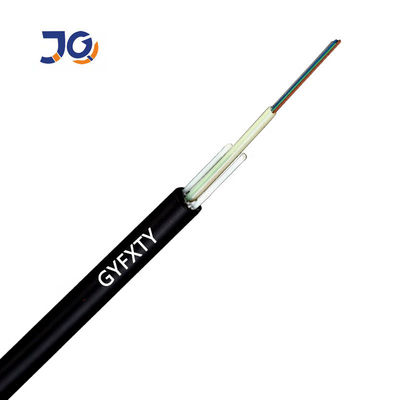

Unit Tube GYFXTY PE Jacket G652D Outdoor Fiber Optic Cable

Minimum Order Quantity : 1km Packaging Details : wooden drum
Delivery Time : 5-8 work days Payment Terms : L/C, T/T
Supply Ability : 30KM Per days
Place of Origin: Guangzhou,China Brand Name: JQ/OEM
Certification: ISO9001 Model Number: GYFXTY

Detail Information

Fiber Type: Single Mode G652D Jacket Material: PE
Strength Member: FRP Cable Diameter: 5.5-9.0 Mm
Color: Black Application: Aerial/Duct
Fiber Count: 2/4/6/8/12 Core Length: 2km Or Customized Length
High Light:

Unit Tube Outdoor Fiber Optic Cable

,

Unit Tube g652d fiber optic cable

,

GYFXTY g652d fiber optic cable

Product Description

Unit Tube PE Jacket Outdoor Fiber Optic Cable GYFXTY Non-Metallic Ethernet Os2 Fiber Optic Cable

Product Description

Unit Tube Outdoor Aerial Cable GYFXTY Non-Metallic Optic Fiber Cable.The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of water blocking system. Two parallel FRP are placed at the two sides.

The cable is completed with a polyethylene (PE) sheath.



Features

Good mechanical and temperature resistant performance.
Uni-tube gel-filled construction for superior fiber protection.
Two parallel steel wires ensure tensile strength.
PE sheath protects cable from ultraviolet radiation.
Light weight and small diameter, easy to installation and operation.



Optical Characteristics:













G.652



G.655



50/125μm



62.5/125μm



Attenuation(+20C)



@850nm











3.0dB/km



≤3.0dB/km



@1300nm











≤1.0dB/km



≤1.0dB/km



@1310nm



≤036dB/km



≤0.40dB/km











@1550nm



0.22dB/km



≤0.23dB/km











Bandwidth(ClassA)



@850nm











2500MHz-km



2200MHz.km



@1300nm











1000MHz.km



2600MHz-km



Numerical Aperture











0.200±0.015NA



0.275±0.15NA



CableCut-off Wavelength



1260m



1480nm











Structure and Technical Specification OF GYFXTY

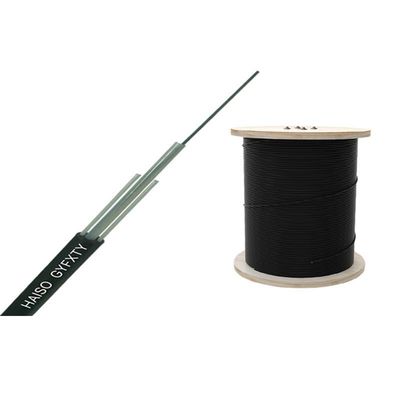

Unit Tube GYFXTY PE Jacket G652D Outdoor Fiber Optic Cable 0

                 Unit Tube GYFXTY PE Jacket G652D Outdoor Fiber Optic Cable 1

Unit Tube GYFXTY PE Jacket G652D Outdoor Fiber Optic Cable 2



GYFXTY Outdoor Fiber Optic Cable



Fiber

count



Cable

diameter(mm)



Nominal

weight(KGS)



AllowableTensileLoad(mm)



AllowableCrushResistance(N/100m)



Short term



Long term



Short term



Long term



2-12



8.0



60



800N



400N



1000N/100m



300N/100m





Package

Packed in enclosed fumigated wooden drum,1/2/3/4/5km per drum ,customer's requirements are also welcomed;

Unit Tube GYFXTY PE Jacket G652D Outdoor Fiber Optic Cable 3



Shipping way

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

Unit Tube GYFXTY PE Jacket G652D Outdoor Fiber Optic Cable 4





FAQ

1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.

3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.

6.Do you offer guarantee for the products?
 Yes, we offer 10-20 years warranty to our formal products.
