LSZH Jacket GJYXCH Fiberhome Outdoor Drop Cable

Minimum Order Quantity : 1km Packaging Details : Wooden drum
Delivery Time : 3-5 days,it depends on order quantity Payment Terms : L/C, T/T, Western Union,Alipay
Supply Ability : 4500 per month
Model Number: GJYXCH

Detail Information

Place Of Origin: Guangzhou,China Brand Name: Jiqian
Certification: ISO 9001 Number Of Conductors: 1/2/4
Application: Outdoor Aerial Fiber Type: G652D/G657A1/G657A2
Manufacturer: Yes Outer Sheath: LSZH
Fiber Brand: Fiberhome/YOFC
High Light:

YOFC fiberhome outdoor drop cable Fiberhome Outdoor Drop Cable

,

ISO9001 GJYXCH Outdoor Drop Cable

,

8kg/km LSZH Jacket Outdoor Drop Cable

Product Description

FTTH LSZH Jacket GJYXCH Outdoor 1/2/4 Core Fiber Drop Cable



Optical Characteristics

  G.652 G.655 50/125μm 62.5/125μm

Attenuation

(+20°C)

@850nm     ≤3.5 dB/km ≤3.5 dB/km
@1300nm     ≤1.5 dB/km ≤1.5 dB/km
@1310nm ≤0.45 dB/km ≤0.50 dB/km
@1550nm ≤0.30 dB/km ≤0.50dB/km



Bandwidth (Class A)

@850nm     ≥500 MHz·km ≥200 MHz·km
@1300nm     ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture     0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm







Technical Parameters


Fiber Count

Cable Diameter
mm

Cable Weight
kg/km

Tensile Strength
Long/Short Term
N
Crush Resistance
Long/Short Term
N/100mm

Bending Radius

Static
/Dynamic
mm
1 (2.0±0.2)×(3.0±0.2) 8 30/60 300/1000 15/30
2 (2.0±0.2)×(3.4±0.2) 8.5 30/60 300/1000 15/30

4 (2.0±0.2)×(4.0±0.2) 10 30/60 300/1000 15/30

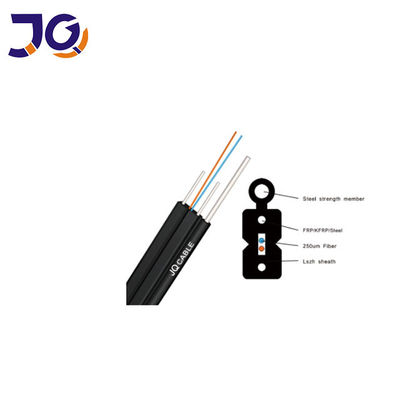

LSZH Jacket GJYXCH Fiberhome Outdoor Drop Cable 0



FAQ



1,Q:Are you a factory or trade company?
A:We are a factory


2,Q:What is the MOQ?

A:The MOQ of Fiber Optic cable is 1km.



3.Q:Which brand of fiber do you use?

A:YOFC,Fiberhome,etc



4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.


5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.



6.Can you supply customized products and logo?

A:Yes. We supply OEM service.



7.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
