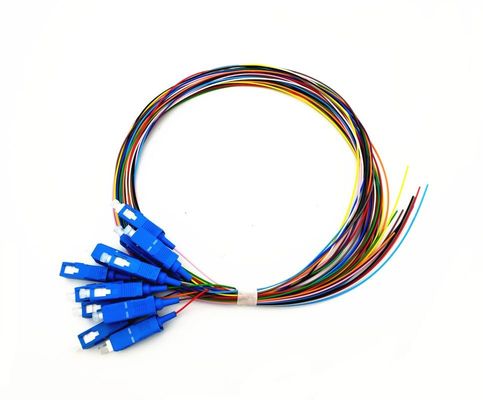

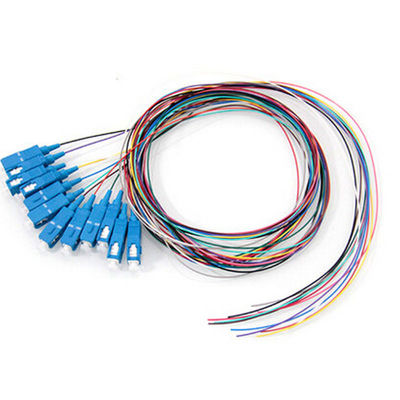

High Quality Customized Patch Cord Optical Fiber LC/FC/SC/ST
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 50PCS | Packaging Details : | PE bag or plastic box and Cartoon box |
|---|---|---|---|
| Delivery Time : | 3-5 work days | Payment Terms : | Western Union,T/T, L/C |
| Supply Ability : | 30000pcs per day |
| Place of Origin: | Guangzhou, China | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | ISO 9001 | Model Number: | Fiber Optic Pigtail |
|
Detail Information |
|||
| Application: | FTTH FTTB FTTX Network | Connector Type: | SC UPC |
|---|---|---|---|
| Length: | Can Be Customized | Color: | Customized |
| Cable Diameter: | 0.9/2.0/3.0mm | Ferrule End-face: | PC/UPC/APC |
| Jacket Material: | PVC/LSZH/PE | Product Name: | Fiber Optic Pigtail |
| High Light: | FTTB 0.9mm Optical Fiber Pigtail,12Cores Optical Fiber Pigtail,FTTB 0.9mm multimode fiber pigtail |
||
Product Description
SC, LC, FC, MU, ST, MT-RJ, E2000 connector available.
Superior qualified standard PC, APC, UPC, SPC polishing.
CSingle mode or multi mode,able size: Φ 0.9mm, Φ2.0mm, Φ3.0mm
Single mode (9125) or multi mode (50/125 or 62.5/125) fiber available.
Available in fiber bunch, ribbon fan-out, pigtail available.
Simplex and duplex connector available.
Applicable connector: FC, SC, ST, LC…
Cable material: PVC or LSZH.OM1, OM2 or OM3 optional
Good exchange ability and good durability.
Customized specifications are welcomed.
Application
Fiber Optic telecommunications
Lan(Local Area network)
FTTH (Fiber to the home)
CATV & CCTV
High Speed transmission systems
Fiber optic sensing
Optical Characteristics
| Item | SM(Single Mode) | MM(Multimode) | |||
| Fiber Cable Type | G652D/G655/G657A1/G657A2 | OM1 | oM2/OM3/OM4 | ||
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
| Cable oD (mm) | 0.9/1.6/1.8/2.0/2.4/3.0 | ||||
| Endface Type | PC | UPC | APC | UPC | UPC |
| Typical Insertion Loss (dB) | <0.2 | <0.15 | <0.2 | <0.1 | <0.1 |
| Return Loss (dB) | >45 | >50 | >60 | / | |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
| nti-tensile Force (N) | >70 | ||||
| remperature Range (c) | -40r+80 | ||||
1.Are you the real manufacturer?
Yes. We are the real manufacturer with 10 years’ history.
2.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
3.What is your warranty period?
25 years for fiber optic cable
4.What is your delivery time?
Usually within 3-5 working days
5.What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 6,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
6.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
