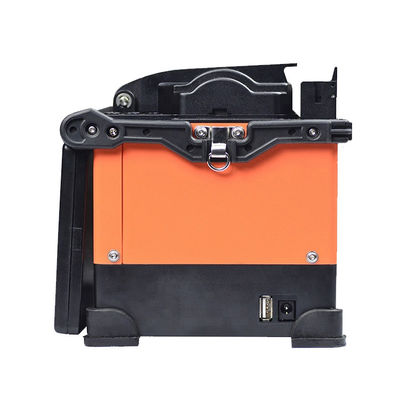

FTTH FFS-80S Touch Screen Fiber Optic Cable Fusion Splicer
FTTH FFS-80S Touch Screen Fiber Optic Cable Fusion Splicer FTTH FFS-80S Touch Screen Fiber Optic Cable Fusion Splicer
Contact Now

FTTH FFS-80S Touch Screen Fiber Optic Cable Fusion Splicer

Minimum Order Quantity : 1 piece Packaging Details : Inside plastic case,outside with cartion
Delivery Time : 3-5 days,it depends on order quantity Payment Terms : L/C, T/T, Western Union,Alipay
Supply Ability : 2000 pieces per month
Place of Origin: China Brand Name: Jiqian
Certification: ISO9001 Model Number: FFS-80S

Detail Information
High Light:

Touch Screen Fusion Splicer

,

ISO9001 FFS-80S Fiber Optic Fusion Splicer

,

FFS-80S fiber optic cable splicing machine

Product Description

FTTH FFS-80S Automatic Touch Screen Machine Splicer Fiber Optic Cable Splicing Fusion

Product Overview
FFS-80S High Precision Fusion Splicer With smart appearance, reliable quality, Fusion Splicer is a special design for the installation, operation and maintenance of optical fiber specially design a precision, durable, convenient optical fiber construction instrument. Widely used in the construction, inspection, maintenance of fiber cable.

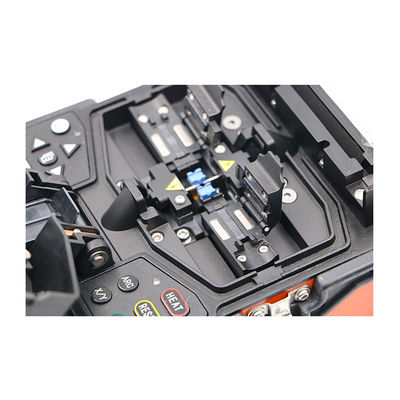

FTTH FFS-80S Touch Screen Fiber Optic Cable Fusion Splicer 0
Product Advantages
* 300 X or Y view, 200 X and Y view.
* Large amplification and clear core.
* Used for FTTH and ordinary fiber project.
* Core to core alignment by PAS technology.
* 9 sec splicing time and 30 sec heat time.
* With 5200 mAh Ultra-large capacity Li battery.
* Small size and light weight, 1.98KG including battery
* Three in one fixture, splicing single fiber, cable indoor and pigtail
* Built in large capacity lithium battery of 200 times splicing and heating
* 5 inch digital high-quality LCD screen, observe X and Y view at same time
* V type high power automatic heater with steel based thick film,high thermal efficiency, fast heating and long life
Construction
Description
Splicing Type
SM, MM, DS, NZDS
Splicing Loss
0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)
Return Loss
>60dB
Splicing Mode
Manual, Half Auto, Auto
Fiber Alignment
Core to Core Alignment by PAS technology
Applicable Fiber
Cable indoor and 0.25mm,0.9mm fiber,SC connector(option)
Splicing Time
≤9s
Heat Time
≤30s Auto Heat
Cleaved Length
12～16mm
Fiber Image/ Magnification
300/200
View Display
5 inch digital high-quality LCD screen
Tension Test
Standard 2N (option)
Heat Shrinkable Sleeve
60mm, 40mm and serials heat Shrinkable Sleeve
Battery Capacity
200 cycles splicing and heating, 3 hours charging time
(splicing and charging at same time)
Battery Life
Cycling charge 300-500 times, easy to replace battery
Electrodes Life
3000, easy to replace electrodes
Power Source
≤20W
Interface
USB Convenient data download and software update
Construction Lighting
Built in high brightness, wide range of lights, easy to operate at night
Power supply
Built in lithium battery 5200mAh 11.1V; external adapter,
input: AC100-240V, output: DC13.5V/4.5A
Operating Condition
0-5000m above sea level, Temperature: -10-60℃,
Humidity:0～95%RH (No dew)
Weight
1.98 KG (including battery)
Dimension (LxWxH)
135mm(L)×158mm(W)×155mm(H)
Name
Qty
Name
Qty
Fusion Splicer
1 set
Li Battery
1 pc
Fiber Cleaver
1 pc
Charger
1 pc
Fiber Stripper
1 pc
Spare Electrodes
1 pair
AC Adatpor
1 pc
Cooling Tray
1 pc
Carrying Case
1 pc




FAQ
1,Q:What is the MOQ?
A:1 piece.
2,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.

3,Q:What’s delivery time?
A:The general delivery time is 2-3 days after order confirmed. It depends on the order quantity.
4.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.small order is 100% of full price in advance
