Water Resistant 48 Core 500m Span OFC ADSS Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 1KM | Packaging Details : | Wooden drum |
|---|---|---|---|
| Delivery Time : | 3-5 days | Payment Terms : | L/C, T/T,Alipay |
| Supply Ability : | 4500km per month |
| Place of Origin: | China |
|---|
|
Detail Information |
|||
| Brand Name: | Jiqian | Certification: | ISO 9001 |
|---|---|---|---|
| Model Number: | ADSS -12B1 | OEM: | Available |
| Fiber Type: | Single Mode | Strength Yarn: | Kevlar Yarn |
| Application: | Overhead | Packing: | Wooden Drum |
| Storage Operating Temperature: | -40 To +70 °C | Manufacturer: | Jiqian |
| Colour: | Black | ||
| High Light: | Span 50m ADSS Optical Cable,Kevlar yarn ADSS Optical Cable,Span 50m 12 core optical fiber cable |
||
Product Description
12 Cores Single Mode Fibra Optica Cable ADSS Dielectric Single Jacket Span 50m

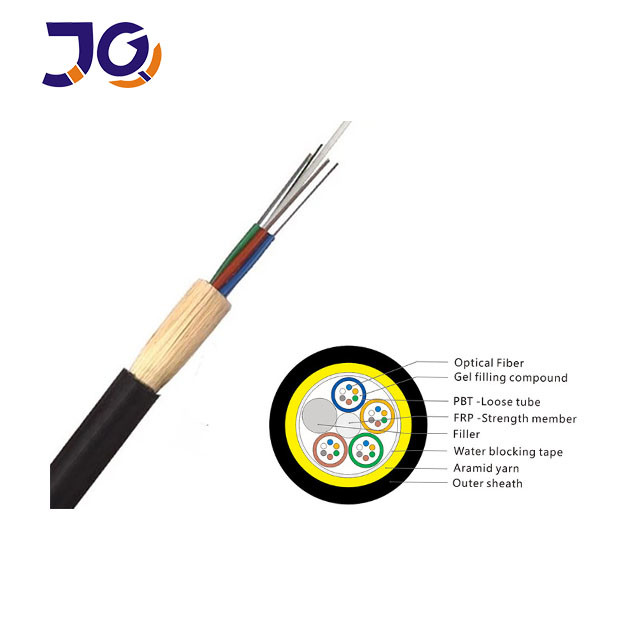

ADSS is one kind of loose tube stranded cable. 250μm's fibers are positioned in the loose tube which is made of high modulus plastics. The tubes are filled with a water-resistant filling compound. And we use the FRP(fiber reinforced plastic) as the central strength member. The loose tube with the fibers and the FRP are stranded together first, and then we use the PE sheath and the aramid yarn to protect the fibers. Because of the structure, ADSS cable have a very excellent performance during the storage, oprating and using.
|
No. of cable
|
12
|
||||
|
Fiber Model
|
G652D
|
||||
|
Design
(StrengthMember+Tube&Filler) |
1+5
|
||||
|
Central Strength
Member |
Material
|
FRP
|
|||
|
Loose Tube
|
Diameter(±0.05)mm
|
1.5
|
|||
|
Material
|
PBT
|
||||
|
Diameter(±0.06)mm
|
1.8
|
||||
|
Thickness(±0.03)mm
|
0.32
|
||||
|
The Max.Core NO./Tube
|
6
|
||||
|
Filler rope
|
Material
|
PE
|
|||
|
Diameter(±0.06)mm
|
1.8
|
||||
|
NO.
|
3
|
||||
|
Water Blocking Layer
|
Flooding Compound
|
||||
|
Additional Strength Member
|
Aramid Yarn
|
||||
|
Outer Sheath
|
Material
|
MDPE
|
|||
|
Thickness(±0.1)mm
|
1.8
|
||||
|
Color
|
Black
|
||||
|
Cable Diameter(±0.2)mm
|
9.2
|
||||
|
Cable Weight(±5)kg/km
|
67
|
||||
|
Cable breaking strength(RTS)
|
5.8Kn
|
||||
|
Working Tension (MAT)
|
2.2Kn
|
||||
|
Wind velocity
|
30m/s
|
||||
|
Icing
|
5mm
|
||||
|
Span
|
80m
|
||||
|
Crush Resistance
|
Short Term
|
2200(N/100mm)
|
|||
|
|
Long Term
|
1100(N/100mm)
|
|||
FAQ
1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
A:The MOQ of Fiber Optic cable is 1km.
3.Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
