GYTS 24core Duct Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 1000m | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 2-4day | Payment Terms : | Western Union, MoneyGram, T/T, L/C |
| Supply Ability : | 100km per 2 day |
| Place of Origin: | CHINA | Brand Name: | jiqian |
|---|---|---|---|
| Certification: | ISO | Model Number: | GYTS |
|
Detail Information |
|||
| Fiber Type: | G657A1/A2/G652D/G657A1/G657A2 | Oem: | Available |
|---|---|---|---|
| Application: | Aerial/duct | Number Of Conductors: | 4 6 8 12 |
| Structure: | Stranded Loose Tube | Operating Temperature: | -40 ~ +60 C |
| Central Strength Member: | Steel Wires | ||
| High Light: | dia10.7mm G657A2 Fiber Optical Cable,ISO G657A2 fiber optic cable duct type,Moisture Resistant Duct Fiber Optical Cable |
||
Product Description
GYTS Moisture Resistant Steel Tape Armoured 12 24 748 72 Core Outdoor Optic Fiber Cable

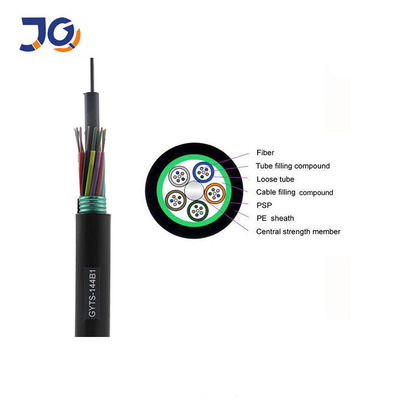

GYTS Armored Loose Tube Single Jacket/Single Armor fiber optic cables are designed to provide high fiber
counts with the flexibility and versatility required for today's most demanding installations, including duct and
underground conduit.
Features:
1.Up to 288 fibers.
2.Loose tube gel-filled construction for superior fiber protection.
3.Corrugated steel tape armor to protect cable from mechanical damage.
4.UV and waterproof design.
Application:
Interbuilding voice or data communication backbone.Installed in duct, underground conduit .
Optical Characteristics:

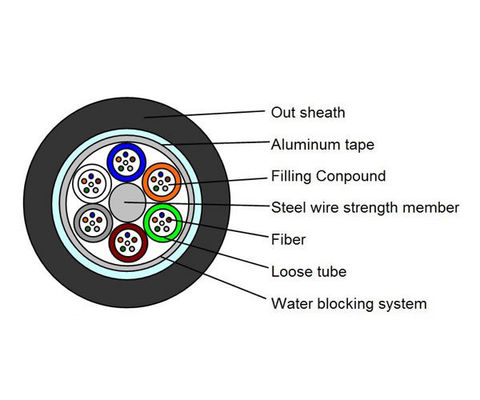

Structure and Technical Specifications:
|
Fiber Count |
Nominal Diameter (mm) |
Nominal Weight (kg/km) |
Max Fiber Per Tube | Max No. of (Tubes+fillers) |
Allowable Tensile Load (N) |
Allowable Crush Resistance (N/100mm) | ||
| Short Term | Long Term | Short Term | Long Term | |||||
| 2~36 | 10.7 | 132 | 6 | 6 | 1500 | 600 | 1000 | 300 |
| 38~72 | 12.0 | 165 | 12 | 6 | 1500 | 600 | 1000 | 300 |
| 74~96 | 13.8 | 204 | 12 | 8 | 2000 | 600 | 1000 | 300 |
| 98~120 | 15.3 | 240 | 12 | 10 | 2000 | 600 | 1000 | 300 |
| 122~144 | 17.0 | 284 | 12 | 12 | 2500 | 600 | 1000 | 300 |
| 146~216 | 17.1 | 285 | 12 | 18(2 layers) | 2500 | 600 | 1000 | 300 |
| 218~288 | 19.5 | 350 | 12 | 24(2 layers) | 3000 | 600 | 1000 | 300 |
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people
for more detailed information.
We produce and test cable comply with following standard:
| Mechanical Performance | |
| Max Tension Performance | IEC 60794–1-2-E |
| Max. Operation Tension | IEC 60794–1-2-E1 |
| Crush Test | IEC 6079 –1-2-E3 |
| Impact Test | IEC 60794–1-2-E4 |
| Repeated Bending | IEC 60794–1-2-E6 |
| Torsion Test | IEC 60794–1-2-E7 |
| Cable bend | IEC 60794–1-2-E11A |
| Attenuation Coefficient | ITU-T G.652 |
| Structural Test | IEC-60793-1-20 |
| Environmental Performance | |
| Temperature Cycling | IEC 60794–1-2-F1 |
| Water Penetration | IEC 60794–1–2-F5B |
| Filing Compound Flow | IEC 60794-1-E14 |
