ADSS G657A1 Aramid Yarn 12 Core Single Mode Fiber Optic Cable

Minimum Order Quantity : 1000m Packaging Details : wooden drum
Delivery Time : 2-4day Payment Terms : Western Union, MoneyGram, T/T, L/C
Supply Ability : 100km per 2 day
Place of Origin: CHINA Brand Name: jiqian
Certification: ISO Model Number: ADSS

Detail Information

Fiber Type: G657A1/A2/G652D/G657A1/G657A2 Oem: Available
Application: Aerial/duct Number Of Conductors: 16 24
Structure: Stranded Loose Tube Operating Temperature: -40 ~ +60 C
Central Strength Member: FRP Jacket: PE
High Light:

Aramid Yarn 12 Core Fiber Optic Cable

,

ADSS aramid yarn fiber optic cable

,

G657A1 Single Mode Fiber Optic Cable

Product Description

ADSS Supply Outdoor Ftth Cable Aramid Yarn 12 Core Single Mode Outdoor Fiber Optic Cable

Cable structure :


ADSS cable is loose tube stranded. Fibers, 250μm, are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

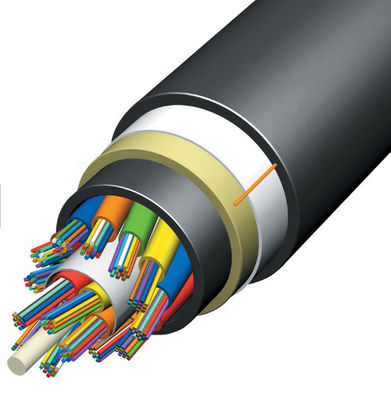

ADSS G657A1 Aramid Yarn 12 Core Single Mode Fiber Optic Cable 0



Applications:

Widely used in self support aerial / overhead.



Features:

Can be installed without shutting off the power.
Excellent mechanical performance.
Good performance of tensile strength and temperature.
Light weight and small diameter reducing the load caused by ice/wind, as well as the load on towers
and backprops.
Long life span time over 30 years.



Cable Parametres:

Model No. ADSS
Fiber count 2-144 hilos
Fiber type SM G652D
Central Strangth member FRP
Loose tube PBT
Type of filling compound Jelly
Water-blocking system Water blocking tape
Strength member Kevlar yarn
Inner sheath PE
Outer sheath PE/AT
Applicantion Overhead;Ariel for telecommunication

Optical Fiber Performance

Fiber Type G.652D,125.0+-1.0μm
Mode Field Diameter 9.2+-0.2μm at 1310 nm
Cladding Diameter 125+-1μm
Cladding Non-Circularity <=1%
Coating Diameter 245+-10μm
Attenuation Coefficient <=0.38dB/km at 1310nm,<=0.22dB/km at 1550nm
Chromatic Dispersion <=3.5ps/nm/km at1285-1330nm,<=18ps/nm/km at 1550nm
Zero Disperson Wavelength 1300-1322nm
PMD Coefficient <=0.2ps/√km

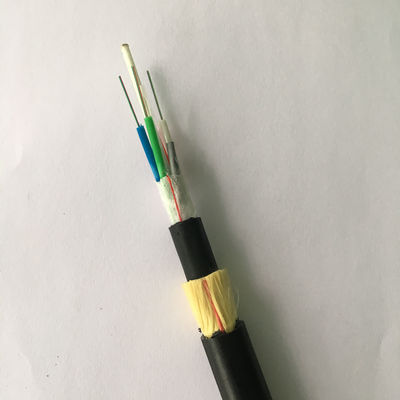

ADSS G657A1 Aramid Yarn 12 Core Single Mode Fiber Optic Cable 1


01

Class A Fiber

The fiber optic cable adopts the well-known brand A-class core, which has high transmission rate, long distance and small
attenuation. The fiber is made of the same material and uniform in thickness.

02

Reinforced Structure

Double PE jacket Corrugated steel tape longitudinally Center strength member Water-blocking gel filled Compressive,
moisture-proof, waterproof, anti-freeze, anti-mouse bite

03

Environmental Protection Materials

The double sheath is made of polyethylene environmentally friendly material, which feels like wax, has excellent low temperature
resistance, good chemical stability, and can withstand the erosion of most acid and alkali. It has small water absorption and
excellent electrical insulation.

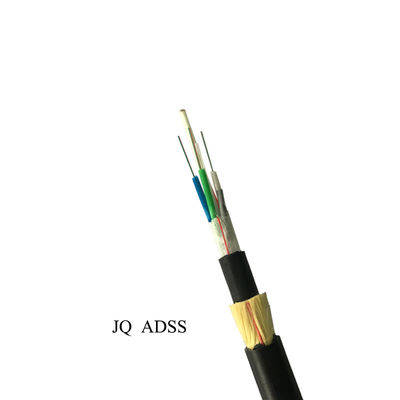

ADSS G657A1 Aramid Yarn 12 Core Single Mode Fiber Optic Cable 2



Features:

Can be installed without shutting off the power.
Excellent mechanical performance.
Good performance of tensile strength and temperature.
Light weight and small diameter reducing the load caused by ice/wind, as well as the load on towers
and backprops.
Long life span time over 30 years.


COMPANY PROFILE
 Guangzhou jiqian fiber optical cable co., LTD is located in guangzhou city, guangdong province mingying west 2 road industrial zone, xintang town, is a collection of scientific research, development, production, sales for the integration of large-scale specialization of high-tech joint-stock enterprise, specializing in the production of various specifications of 2-288 core cable.

FAQ:

1. Are you the real manufacturer?

Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?

1KM. We support new project of our customers, trial order is available

3.Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.

5.Delivery time?

Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?

Yes, we supply OEM&ODM service, pls feel free to contact.ADSS G657A1 Aramid Yarn 12 Core Single Mode Fiber Optic Cable 3
