Length 2km 4-288core Optical Power Ground Wire

Minimum Order Quantity : 1km Packaging Details : Plywood Reel/customized
Delivery Time : 5-8 work days Payment Terms : L/C, T/T, Western Union
Supply Ability : 4500KM Per Month
Place of Origin: Guangzhou,China Brand Name: JQ/OEM
Certification: ISO9001 ROHS CE-EMC FCC SDOC Model Number: OPGW

Detail Information

Fiber Type: Single Mode/multi Mode Jacket: Aluminum
Product Name: Outdoor Fiber Optic Cable Length: 2km Or Customized Length
Structure: Loose Tube Fiber: 4-288core
Operating Temperature: -40 ~ +60 C Installation: Aerial
Fiber Color: Blue,Orange,Brown,Aqua,Grey
High Light:

2km Optical Power Ground Wire

,

288core Optical Power Ground Wire

,

FCC SDOC 2km optical fiber ground wire

Product Description

Composite Overhead Ground Wire Stranded-tube Optical fiber OPGW Fiber Optic Cable



Optical fibre composite overhead ground wire (OPGW) is an overhead ground wire containing optical fibre. It has multiple functions such as overhead ground wire and optical communication. It is mainly used for communication lines of 110KV, 220KV, 500KV, 750KV and new overhead high-voltage transmission system. It can also be used to replace the existing ground lines of the old overhead high voltage transmission system, add the optical communication line, transmit short time current and provide anti lightning protection. Other structures can be customized on request.

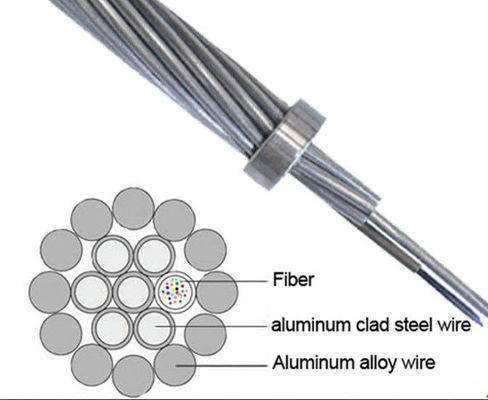

Cross section of OPGW



Length 2km 4-288core Optical Power Ground Wire 0

Characteristics

• Stainless steel tubes filled with hydrophobic gel provide the protection and support of the optical fibres

• Good tensile performance

• Small diameter, light weight, low additional load to the tower

• Appropriate fibre excess length of optical unit easliy to make

• Transport/storage temperature: -40℃ to +65℃

Technical dates

  Classification Material Value







Construction

Optical Fibre G652D/G655 etc. 2 - 48
Protection Tube Stainless steel tube 1.5 - 6mm
Stranded Line AS wire/AA wire/Al Rod 1.5 - 6mm
Max. Diameter 18mm
Max. Cross Section 200mm2









Characteristic

According to the standards as DL/T 832, IEC60794-4-10, IEEE1138
Max. Tensile Strength (RTS ) (kN) 280
Max. Crush Strength(N/100mm) 2200
Max. Short Current Capacity (40℃-200℃)(kA2s) 100
Min. Bending Radius (Dynamic) 20D
Min. Bending Radius (Static) 15D
Environment Performance Installation (℃) -10 to +50
Transportation and Operation (℃) -40 to +65



Optical Characteristics

  Attenuation Bandwidth Polarization Mode Dispersion



@850nm



@1300nm



@1310nm



@1550nm



@850nm



@1300nm

Individual Fibre Design Link Value (M=20, Q=0.01%)
G652D ≤0.35dB/km ≤0.21dB/km ≤0.20ps/ km ≤0.1ps/ km
G655 ≤0.22dB/km ≤0.20ps/ km ≤0.1ps/ km
50/125μm ≤3.0dB/km ≤1.0dB/km ≥600MHz.km ≥1200MHz.km
62.5/125μm ≤3.5dB/km ≤1.0dB/km ≥200MHz.km ≥600MHz.km



Specific Type and Technical Data

No.

Technical Data

Product Type

Structure Type

Max. Fibre
Count

Section of AS Wire
(mm2)

Diameter

(mm)

Cable Weight
(kg/km)

Rate Tensile Strength

(kN)

20℃DC

Resistance

(Ω/km)

Short Time Current Capacity

(40-200℃ kA2.s)



1

OPGW-48B1.3-90- [112;45]

1/2.6/20AS+4/2.5/20AS+

11/2.8/20AS, Optical Unit 2/2.5

48 ≈90 13.2 ≤641 ≥112 ≤0.98 ≥45



2

OPGW-48B1.3-90- [57;67]

1/2.6/40AS+4/2.5/40AS+

11/2.8/40AS, Optical Unit 2/2.5

48 ≈90 13.2 ≤457 ≥57 ≤0.52 ≥67



3

OPGW-24B1.3-100-[118;50]

1/2.6/20AS+5/2.5/20AS+

11/2.8/20AS, Optical Unit 1/2.5

24 ≈100 13.2 ≤674 ≥118 ≤0.93 ≥50



4

OPGW-24B1.3-100-[60;74]

1/2.6/40AS+5/2.5/40AS+

11/2.8/40AS, Optical Unit 1/2.5

24 ≈100 13.2 ≤479 ≥60 ≤0.49 ≥74



5

OPGW-24B1.3-110-[133;63]

1/2.6/20AS+5/2.5/20AS+

10/3.2/20AS, Optical Unit 1/2.5

24 ≈110 14 ≤760 ≥133 ≤0.83 ≥63



6

OPGW-24B1.3-110-[140;68]

1/2.8/20AS+5/2.7/20AS+

11/3.05/20AS, Optical Unit 1/2.6

24 ≈110 14.3 ≤791 ≥140 ≤0.80 ≥68



7

OPGW-24B1.3-110-[67;95]

1/2.9/20AS+5/2.8/20AS+

12/2.8/AA , Optical Unit 1/2.7

24

≈37

≈74(AA)

14.1 ≤473 ≥67 ≤0.40 ≥95



8

OPGW-36B1.3-120-[145;73]

1/3.0/20AS+5/2.9/20AS+

12/2.9/20AS, Optical Unit 1/2.8

36 ≈120 14.6 ≤820 ≥145 ≤0.77 ≥73



9

OPGW-36B1.3-120-[95;98]

1/3.0/30AS+5/2.9/30AS+

12/2.9/30AS, Optical Unit 1/2.8

36 ≈120 14.6 ≤700 ≥95 ≤0.55 ≥98



10

OPGW-36B1.3-120-[74;110]

1/3.0/40AS+5/2.9/40AS+

12/2.9/40AS, Optical Unit 1/2.8

36 ≈120 14.6 ≤582 ≥74 ≤0.42 ≥110



11

OPGW-72B1.3-120-[147;76]

1/3.2/20AS+4/3.0/20AS+

12/3.0/20AS, Optical Unit 2/2.9

72 ≈120 15.2 ≤832 ≥147 ≤0.76 ≥76



12

OPGW-72B1.3-120-2[96;101]

1/3.2/30AS+4/3.0/30AS+

12/3.0/30AS, Optical Unit 2/2.9

72 ≈120 15.2 ≤711 ≥96 ≤0.53 ≥101



13

OPGW-72B1.3-120-[74;114]

1/3.2/40AS+4/3.0/40AS+

12/3.0/40AS, Optical Unit 2/2.9

72 ≈120 15.2 ≤591 ≥74 ≤0.40 ≥114



14

OPGW-36B1.3-130-[155;85]

1/3.2/20AS+5/3.0/20AS+

12/3.0/20AS, Optical Unit 1/2.9

36 ≈130 15.2 ≤879 ≥155 ≤0.72 ≥85



15

OPGW-36B1.3-130-[102;114]

1/3.2/30AS+5/3.0/30AS+

12/3.0/30AS, Optical Unit 1/2.9

36 ≈130 15.2 ≤751 ≥102 ≤0.50 ≥114



16

OPGW-36B1.3-130-[79;137]

1/3.2/40AS+5/3.0/40AS+

12/3.0/40AS, Optical Unit 1/2.9

36 ≈130 15.2 ≤624 ≥79 ≤0.40 ≥137



17

OPGW-36B1.3-140-[175;100]

1/3.3/20AS+5/3.2/20AS+

12/3.2/20AS, Optical Unit 1/3.1

36 ≈140 16.1 ≤995 ≥175 ≤0.65 ≥100



18

OPGW-36B1.3-140-[115;140]

1/3.3/30AS+5/3.2/30AS+

12/3.2/30AS, Optical Unit 1/3.1

36 ≈140 16.1 ≤850 ≥115 ≤0.45 ≥140



19

OPGW-36B1.3-145-[86;170]

1/3.3/20AS+5/3.2/20AS+

12/3.2/AA, Optical Unit 1/3.1

36

≈49

≈96(AA)

16.1 ≤611 ≥86 ≤0.31 ≥170



20

OPGW-48B1.3-150-[182;123]

1/3.4/20AS+5/3.3/20AS+

12/3.3/20AS, Optical Unit 1/3.2

48 ≈150 16.6 ≤1055 ≥182 ≤0.60 ≥123



21

OPGW-48B1.3-150-[122;165]

1/3.4/30AS+5/3.3/30AS+

12/3.3/30AS, Optical Unit 1/3.2

48 ≈150 16.6 ≤901 ≥122 ≤0.42 ≥165



22

OPGW-48B1.3-150-[95;195]

1/3.4/40AS+5/3.3/40AS+

12/3.3/40AS, Optical Unit 1/3.2

48 ≈150 16.6 ≤747 ≥95 ≤0.33 ≥195



23

OPGW-72B1.3-150-[172;110]

1/3.4/20AS+4/3.3/20AS+

12/3.3/20AS, Optical Unit 2/3.2

72 ≈150 16.6 ≤998 ≥172 ≤0.64 ≥110



24

OPGW-72B1.3-150-[116;147]

1/3.4/30AS+4/3.3/30AS+

12/3.3/30AS, Optical Unit 2/3.2

72 ≈150 16.6 ≤853 ≥116 ≤0.45 ≥147



25

OPGW-48B1.3-170-[198;150]

1/3.6/20AS+5/3.5/20AS+

12/3.5/20AS, Optical Unit 1/3.4

48 ≈170 17.6 ≤1190 ≥198 ≤0.54 ≥150



26

OPGW-72B1.3-170-[199;156]

1/3.8/20AS+4/3.6/20AS+

12/3.6/20AS, Optical Unit 2/3.5

72 ≈170 18.2 ≤1187 ≥199 ≤0.54 ≥156



27

OPGW-48B1.3-180-[252;125]

1/3.8/14AS+5/3.6/14AS+

12/3.6/14AS, Optical Unit 1/3.5

48 ≈180 18.2 ≤1372 ≥252 ≤0.72 ≥125



28

OPGW-48B1.3-180-[211;175]

1/3.8/20AS+5/3.6/20AS+

12/3.6/20AS, Optical Unit 1/3.5

48 ≈180 18.2 ≤1255 ≥211 ≤0.50 ≥175



29

OPGW-48B1.3-180-[147;234]

1/3.8/30AS+5/3.6/30AS+

12/3.6/30AS, Optical Unit 1/3.5

48 ≈180 18.2 ≤1071 ≥147 ≤0.35 ≥234



30

OPGW-48B1.3-180-[113,262]

1/3.8/40AS+5/3.6/40AS+

12/3.6/40AS, Optical Unit 1/3.5

48 ≈180 18.2 ≤888 ≥113 ≤0.28 ≥262



31



OPGW-48B1.3-235-[268;243.4]

1/2.7/20AS+4/2.5/20AS+

12/2.5/20AS+13/3.8/20AS,

Optical Unit 1/3.5



48



≈235



20.3



≤1594



≥268



≤0.38



≥243.4

Other optical fibre type and count, stranded wire are available om request.





Test Characteristics

Item

Test Method

Requirements







Tension

IEC 60794-1-2-E1

Load: according to cable structure

Sample length: no less than 10m, linked length no less than100m

Duration time: 1min



40%RTS no additional fibre strain(0.01%), no additional attenuation (0.03dB).

60%RTS fibre strain≤0.25%,additional attenuation≤0.05dB

(No additional attenuation after test).





Crush

IEC 60794-1-2-E3

Load: according to above table, three points

Duration time: 10min



Additional attenuation at 1550nm ≤0.05dB/fibre; No damage to the elements





Water Penetration

IEC 60794-1-2-F5B

Time : 1 hour Sample length: 0.5m

Water height: 1m

No water leakage.







Temperature Cycling

IEC 60794-1-2-F1

Sample length: No less than 500m

Temperature range: -40℃ to +65℃

Cycles: 2

Temperature cycling test dwell time: 12h

The change in attenuation coefficient shall be less than 0.1dB/km at 1550nm.



Packing & Shipping



• Standard Cable Drum

• Standard reel length: 2/3km/reel, other length is also available

The OPGW shall be tightly and uniformly wound on a strong wood-iron reel which conforms to ANSI/AA 53-1981 or equal. The reel shall be lagged with stout wood-iron battens so as to prevent the OPGW from damage in ordinary shipping, handling, storage and stringing operations.



According to length of cable, we choose different type reel (D,d,b,w1,w2) for loading cable.

Length 2km 4-288core Optical Power Ground Wire 1





FAQ

1.Are you tradning company or manufacturer?
 We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
 for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?
 We will delivery before tested every fibers when finished production.
 After price confirmation, you can require for free samples to check our quality.

3.Can you accept small order?
   Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
