Hybrid 24 Core GYXTW Fiber Optic Cable With Two Copper Power Wires

Minimum Order Quantity : 1km Packaging Details : 1/2/3/4/5 km in one wooden drum
Delivery Time : 3-5dyas Payment Terms : L/C, T/T, Western Union
Supply Ability : 30km Per day
Place of Origin: Guangzhou China Brand Name: JQ/OEM
Certification: ISO9001 ROHS CE FCC Model Number: GDXTW

Detail Information

Jacket Material: PE Outer Diameter: 10mm
Steel Wire: 1.0mm Fiber Count: 2/4/6/8/12Core
Structure: Unit Tube Strength Member: Two Steel Wire
Product Name: Outdoor Optic Fiber Cable Fiber Type: YOFC Or As Request
Application: Aerial,Duct Color: Black
Type: Fiber Optic Hybrid Cable Length: 2km Or Customized Length
High Light:

GYXTW Fiber Optic Cable

,

10mm Fiber Optic Cable

Product Description

2-24 Core OPLC Fiber Optic 2 Copper Power Wires Hybrid Cable GYDTW/GYDTS



Hybrid Cable 2-24 Core GYXTW With Two Copper Power Wires



Composite Fiber Optic Cables that have a number of different components laid up within the bundle. These types of cables allow for multiple transmission paths by various components, whether they be metal conductors or fibre optics, and allow the user to have a single cable, therefore reducing the overall cost and lead time for installation.The 250μm fiber is positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The parallel steel wires are placed at the two sides tape. The cable is completed with a polyethylene (PE) sheath.

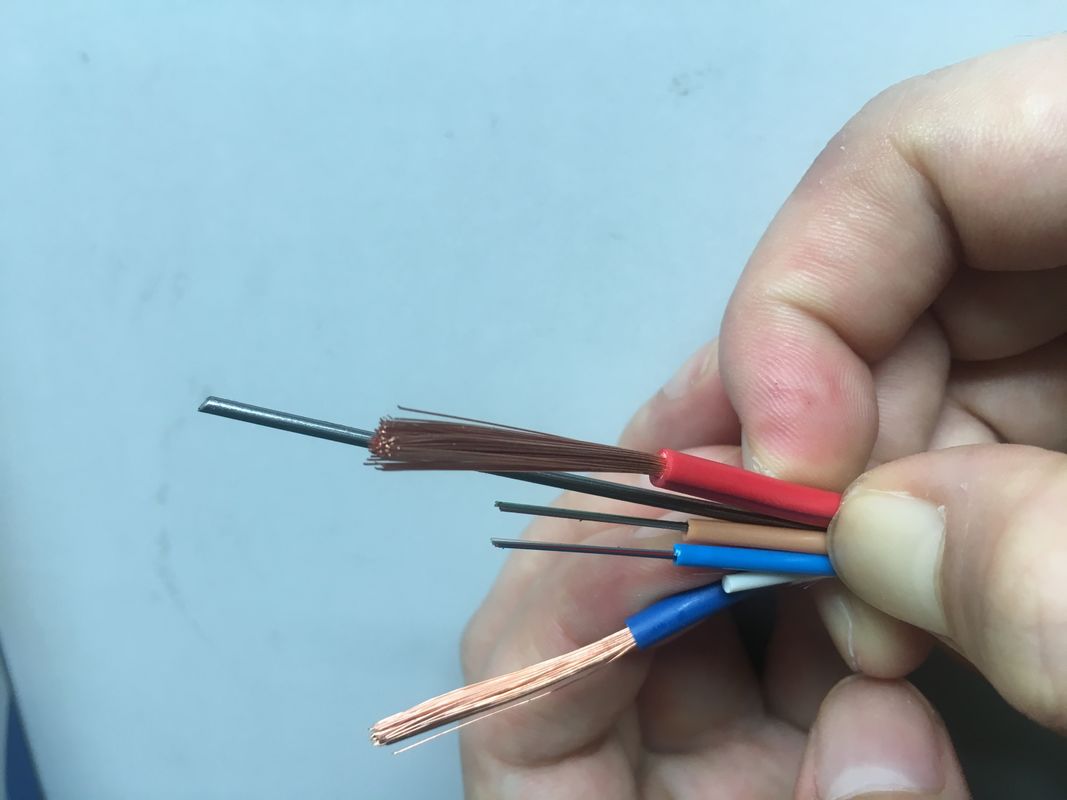

Hybrid 24 Core GYXTW Fiber Optic Cable With Two Copper Power Wires 0





Features



Good mechanical and temperature performance

High strength loose tube that is hydrolysis resistant

Special tube filling compound ensure a critical protection of fiber

Compact structure and lightness, flexible and good bend-resistant performance

Low dispersion and attenuation.Proper design, precise control for fiber excess length and distinct stranding process render the excellent mechanical and enviromental properties.The armoring of steel wire and corrugate steel tape make cable have nice properties of moisture resistance and crush resistance



Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity %  0.7
Core-Cladding Concentricity Error um  0.5
Coating Diameter um 245±5
Coating Non-Circularity %  6.0
Cladding-Coating Concentricity Error um  12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km 0.36
1550nm dBkm 0.22







Cable Parameters

Items Specifications
Fiber Count 2~12
Colored Coating Fiber Dimension 250μm+15μm
Color Blue,Orange,Green,Brown,Gray,White
Loose Tube Dimension 2.0mm±0.05mm
Material PBT
Color Natural
Strength Member Diameter 1.0mm
Material Steel
Outer Jacket Dimension 8.0mm±0.1mm
Material PE
Color Black





Technical Parameters

Range of Temperature -20c~ +60c
Riser Type OFNR/OFN FT4
Plenum Type OFNR/OFN FT6
Jacket LSZH or PE
Code name cable
cores
Diameter
(mm)
Copper
Wire
(mm)
Linear
mass
(kgk
m)
Tensile Crush Bending
radius
Short
Term
(N)
Long
Term
(N)
Short
lerm
N)
Long
Term
(N)
short
Term
N)
Long
Term
(N)
OPLC-2*0.5 6~24 10 2*0.5 125 1500 600 1000 300 20D 10D
OPLC-4*0.5 6-~24 10 4*0.5 130 1500 600 1000 300 20D 10D
OPLC-2*0.75 6~24 10 2*0.75 128 1500 600 1000 300 20D 10D
OPLC-4*0.75 6~24 10 4*0.75 135 1500 600 1000 300 20D 10D
oPLC-2*1.0 6~24 10 2*1.0 130 1500 600 1000 300 20D 10D
OPLC-4*1.0 6-~24 12 4*1.0 150 1500 600 1000 300 20D 10D
OPLC-2*1.5 6~24 12 2*1.5 140 1500 600 1000 300 20D 10D
OPLC-4*1.5 6~24 12 4*1.5 160 1500 600 1000 300 20D 10D
OPLC-2*2.5 6~-24 12 2*2.5 150 1500 600 1000 300 20D 10D
OPLC-4*2.5 6-~24 14.5 4*2.5 180 1500 600 1000 300 20D 10D





Product Image

Hybrid 24 Core GYXTW Fiber Optic Cable With Two Copper Power Wires 1

Hybrid 24 Core GYXTW Fiber Optic Cable With Two Copper Power Wires 2





Application

Used for outdoor distribution box to the building's pipeline,overhead,buried.
Used in optical communication equipment room,
Used for tail fiber and jump in line.
Used for buildings surrounding into cable.





Packing&Delivery

1/2/3/4/km in one wooden drum,deliver days:5-8work days





Hybrid 24 Core GYXTW Fiber Optic Cable With Two Copper Power Wires 3



FAQ

1.Are you tradning company or manufacturer?
 We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
 for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?
 We will delivery before tested every fibers when finished production.
 After price confirmation, you can require for free samples to check our quality.

3.Can you accept small order?
   Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
