72 96 144 Core Air Blown Micro Fiber Optic Cable GCYFY

Minimum Order Quantity : 1km Packaging Details : wooden drum
Delivery Time : 5-8 work days Payment Terms : L/C, T/T, Western Union
Supply Ability : 30km per day
Place of Origin: Guangzhou,China Brand Name: JQ/OEM
Certification: ISO9001 ROHS CE-EMC FCC SDOC

Detail Information

Model Number: GCYFY/GCYFTY Fiber Count: 2-288 Cores
Fiber Type: Single Mode/multi Mode Jacket: PE/PVC/LSZH
Color: Black Product Name: Air-blown Micro Cable
Length: 2km Or Customized Length Structure: Micro Cable
Installation: Aerial Or Duct Number Of Conductors: ≥ 10
High Light:

144 Core Fiber Optic Cable

,

LSZH Micro Fiber Optic Cable

Product Description

Outdoor duct micro optical fiber cable GCYFY/GCYFTY air blown fiber cable



Product Description

1. Model: GCYFY

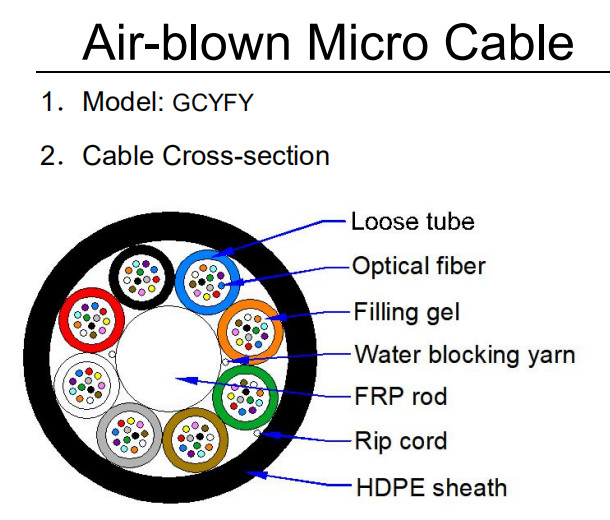

2. Cable Cross-section





72 96 144 Core Air Blown Micro Fiber Optic Cable GCYFY 0







Optical Characteristics

Item Specification
Fiber type G.652D
Attenuation
@ 1310 nm ≤0.36 dB/km
@ 1383 nm ≤0.35 dB/km
@ 1550 nm ≤0.22 dB/km
@ 1625 nm ≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc) ≤1260 nm
Zero Dispersion Wavelength(nm) 1300 ~ 1324 nm
Zero Dispersion Slope ≤0.092 ps/(nm2.km)
Chromatic Dispersion
@ 1288 ~ 1339 nm ≤3.5 ps/(nm. km)
@ 1550 nm ≤18 ps/(nm. km)
@ 1625 nm ≤22 ps/(nm. km)
PMDQ ≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm 9.2±0.4 um
Core Concentricity Error ≤0.6 um
Cladding Diameter 125.0±0.7 um
Cladding Non-circularity ≤1.0%
Coating Diameter 245±10 um
Proof Test 100 kpsi (=0.69 Gpa), 1%





Fiber & Tube Color


72 96 144 Core Air Blown Micro Fiber Optic Cable GCYFY 1

Features
GCYFY loose-shell twisted air-blown micro-cable adopts non-metallic reinforcement and no armor structure, which can be hauled or air-blown micro-pipe in the outer protective tube that has been laid, and then air-blown The laying method breaks through the limitation of the existing pipeline cable laying technology, improves the utilization efficiency of the pipeline, and is easy to expand


72 96 144 Core Air Blown Micro Fiber Optic Cable GCYFY 2







Cable Parameters





Cores



Cores/tube



FRP diameter (mm)



Sheath thickness (mm)

Approx. overall diameter

(mm)

Approx.

weight (kg/km)

12 12 1.5 0.5±0.1 5.6 24
24 12 1.5 0.5±0.1 5.6 24
48 12 1.5 0.5±0.1 5.6 24
72 12 1.5 0.5±0.1 5.6 24
96 12 2.5 0.5±0.1 6.6 38





Working temperature -35oC ~ +70oC
Storage and transportation temperature -35oC~ +70oC
Installation temperature -15oC~ +60oC



Product Detail

72 96 144 Core Air Blown Micro Fiber Optic Cable GCYFY 3



FAQ

1.Are you tradning company or manufacturer?
 We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
 for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?
 We will delivery before tested every fibers when finished production.
 After price confirmation, you can require for free samples to check our quality.

3.Can you accept small order?
   Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
