Single Mode 12 Core Outdoor Fiber Optic Cable For Telecommunication

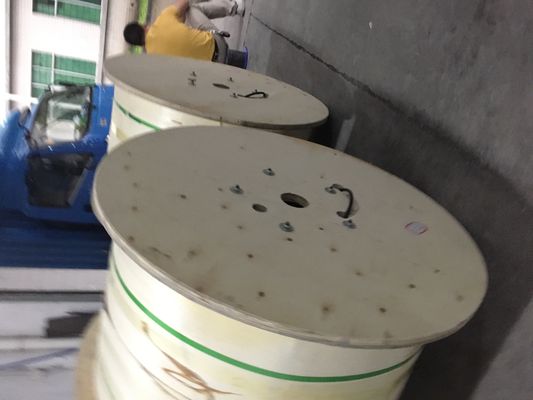

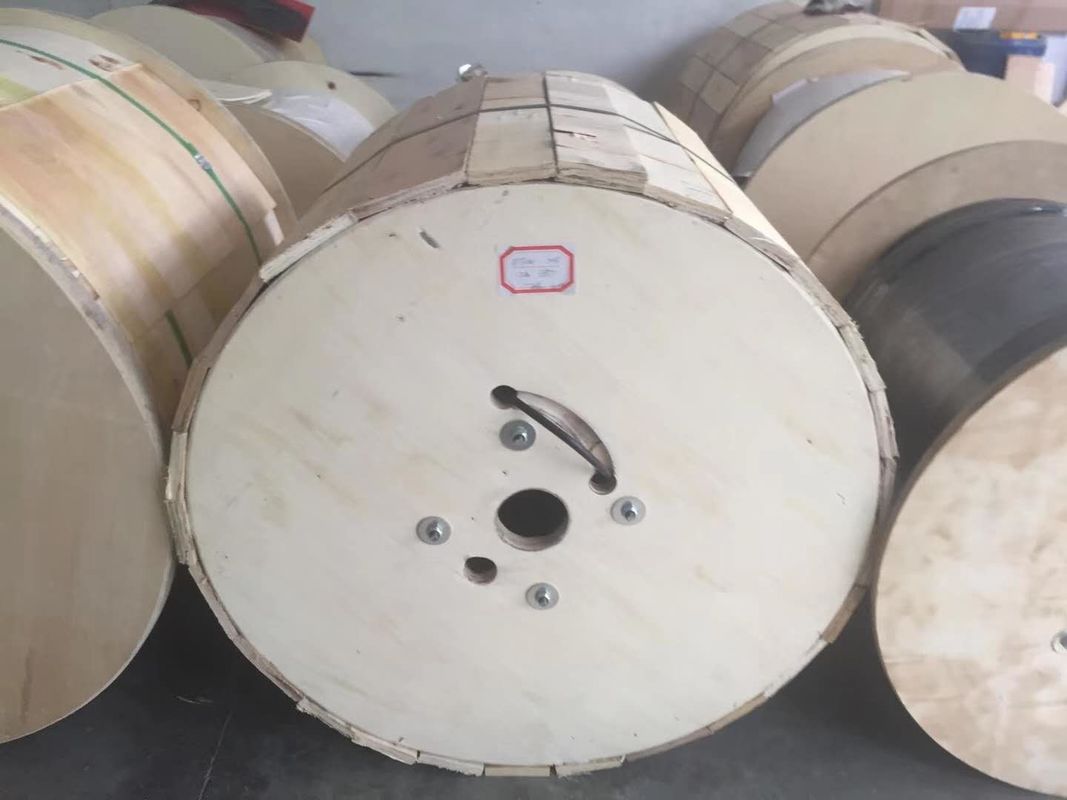

Minimum Order Quantity : 1000m Packaging Details : wooden drum
Delivery Time : 2-4day Payment Terms : Western Union, MoneyGram, T/T, L/C
Supply Ability : 100km per 2 day
Place of Origin: CHINA Brand Name: jiqian
Certification: ISO Model Number: GYFXTY

Detail Information

Fiber Type: G657A1/A2/G652D/G657A1/G657A2 Oem: Available
Application: Aerial Structure: Unitube
Operating Temperature: -40 ~ +60 C Sheath Material: HDPE/MDPE
Installation: Aerial CORE: 4 6 8 12
High Light:

Aerial Outdoor Fiber Optic Cable

,

MDPE Outdoor Fiber Optic Cable

Product Description

telecommunication Use outdoor GYFXTY Single Mode G652D 12 Core Fiber optic cable

Manufacturing 2 4 6 8 12 Core Fiber Optic Cable Gyfxty Optical Outdoor Cable

Optical Characteristics:



G.652
G.655
50/125μm
62.5/125μm
Attenuation (+20℃)
@850nm


≤3.0dB/km
≤3.0dB/km
@1300nm


≤1.0dB/km
≤1.0dB/km
@1310nm
≤0.36dB/km
≤0.40dB/km


@1550nm
≤0.22dB/km
≤0.23dB/km


Bandwidth(Class A)
@850nm


≥500MHz·km
≥200MHz·km
@1300nm


≥1000MHz·km
≥600MHz·km
Numerical Aperture


0.200±0.015NA
0.275±0.15NA
Cable Cut-off Wave length
≤1260nm
≤1480nm





Single Mode 12 Core Outdoor Fiber Optic Cable For Telecommunication 0

Single Mode 12 Core Outdoor Fiber Optic Cable For Telecommunication 1

Single Mode 12 Core Outdoor Fiber Optic Cable For Telecommunication 2



Structure and Technical Specifications OF GYFXTY :

Fiber count
Cable diameter(mm)
Nominal weight(KGS)
Allowable Tensile Load(mm)
Allowable Crush Resistance(N/100m)
Short term
Long term
Short term
Long term
2-12
6.0-9.0
60
1500
600
1500
600

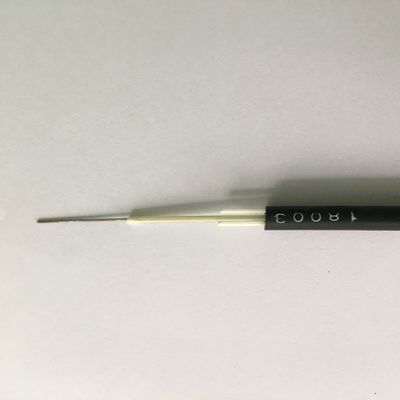

Feature:

1.Good mechanical and temperature resistant performance.
2.Uni-tube gel-filled construction for superior fiber protection.
3.Two parallel steel wires ensure tensile strength.
4.PE sheath protects cable from ultraviolet radiation.
5.Light weight and small diameter, easy to installation and operation.

Single Mode 12 Core Outdoor Fiber Optic Cable For Telecommunication 3

Single Mode 12 Core Outdoor Fiber Optic Cable For Telecommunication 4



FAQ:

1. Are you the real manufacturer?
Yes, we are factory in guangzhou china, welcome to visit us

2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is available

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.

5.Delivery time?
Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.Single Mode 12 Core Outdoor Fiber Optic Cable For Telecommunication 5
