Water Resistant 48 Core 500m Span OFC ADSS Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 1km | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 5-8 work days | Payment Terms : | L/C, T/T, Western Union |
| Place of Origin: | Guangzhou | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | ISO9001 ROHS CE FCC | Model Number: | ADSS-DJ |
|
Detail Information |
|||
| Color: | Black,Customized | Length: | 2km Or Customized Length |
|---|---|---|---|
| Jacket Material: | PE | Name: | ADSS Optical Fiber Cable |
| Strength Member: | FRP | Application: | Aerial |
| Operating Temperature: | -40 ~ +60 C | Type: | ADSS,S-Z Stranded Type |
| High Light: | Overhead ADSS Fiber Optic Cable,HDPE ADSS Fiber Optic Cable,2km Length ADSS Fiber Optic Cable |
||
Product Description
12 24 48 76 92 fibers AT/PE Jacket Overhead ADSS Fiber Optic Cable
Aramid ,Non-metal FRP Strenghth
1. High quality Import Aramid Yarn
2.Center FRP Strength,Anti-electromagnetic interference
3.Span 80m 100M 150m 300M 400M to 500M
Fiber G652D
1.The fiber optic cable adopts the well-known brand A-class core, which has high transmission rate,long distance and small attenuation.
2. Single Mode/Muli Mode Options
3. 12 different Colors Option, can do as your request
Features
* Single Fiber Reinforced Plastic as the central strength member,Loose tube filling compound
* Can be installed without shutting off the power
* Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
* Large span lengths 100m/200m/300m/400m
* Good performance of tensile strength and temperature
* The design life span is 30 years,special tube filling compound ensure a critical protection of fiber.
* Package : 2~4km/ Export wooden drum
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Data
|
Span : 100m |

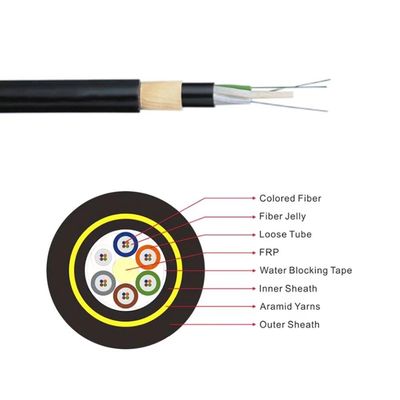

Cable type |
48 core Double Jacket ADSS |
|

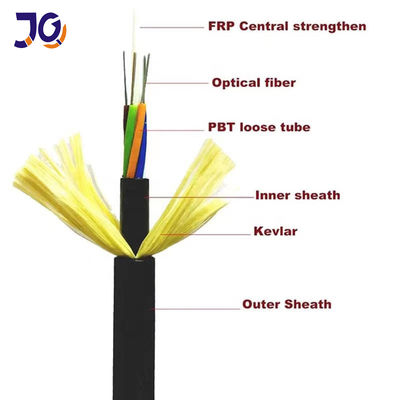

structural parameter |
Central strength components : FRP |
Diameter : 2.1mm |
|
Loose tube (jelly filled ) |
Outer diameter :1.8mm |
|
|
Inner sheath PE |
Thickness : 0.9mm |
|
|
outer sheath PE |
Thickness :1.8mm |
|
|
Technical parameter |
outer diameter of Cable |
12.5mm |
|
cable cross-sectional area |
95.03 mm2 |
|
|
Fiber model |
G.652D |
|
|
Weight of cable |
135kg/km |
|
|
Rated tensile strength (RTS) |
10 kn |
|
|
Minmum allowed tension(MAT) |
4kn |
|
|
EDS |
3.2kn |
|
|
E-modulus |
12.1 kn/mm2 |
|
|
Coefficient of thermal expansion |
1.9 10-6/°C |
|
|
Cruss resistance |
Long term :1100 n/100mm |
|
|
short term:2200 n/100mm |
||
|
Permission bent radius |
Long term (when running) 220 mm |
|
|
Short term (when laying) 360 mm |

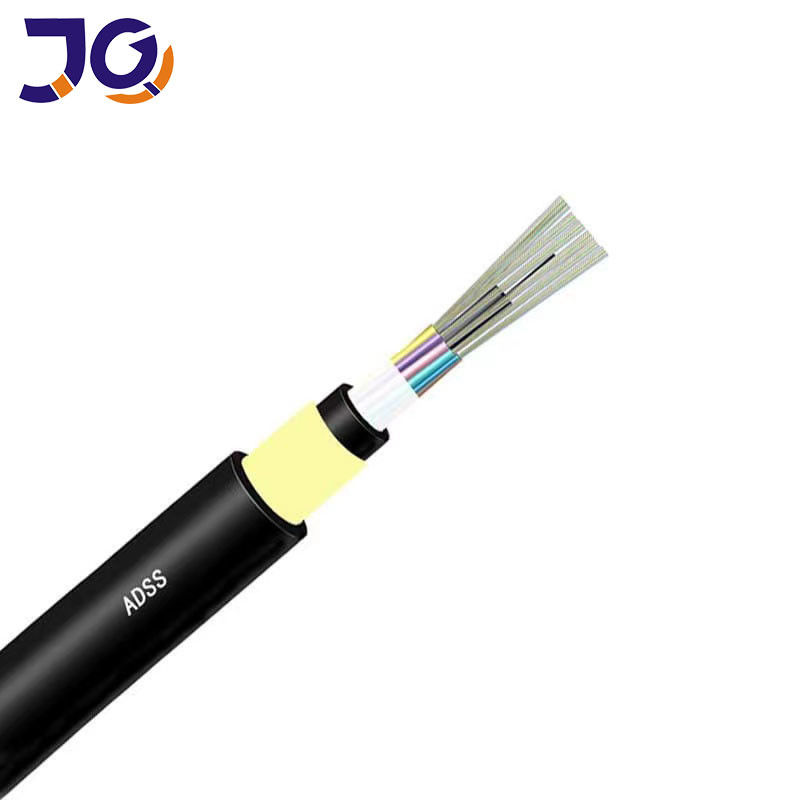

Product Show
Application
Suitable for Aerial Laying method
Storage / Operating Temperature: -40℃~+70℃
Package Detail
A.Company Name
B.Gross/Net Weight
C.Fiber Type
D.Cable Length
Packaing detail:
1km/2km/3km/4km per wooden drum
Shipping:
By sea/by air or express delivery,it depends on the order quantity
Lead time:
| Quantity(km) | 1-300 | Above 300 |
| Earliest time(day) | 7-10 | Negotiable |
