Underground Armored Optical Fiber Cable Central Loose Tube 12 Core

Minimum Order Quantity : 1000m Packaging Details : wooden drum
Delivery Time : 2-4day Payment Terms : Western Union, MoneyGram, T/T, L/C
Supply Ability : 100km per 2 day
Place of Origin: CHINA Brand Name: jiqian
Certification: ISO Model Number: GYXTW

Detail Information

Fiber Type: G657A1/A2/G652D/G657A1/G657A2 Oem: Available
Application: Aerial Number Of Conductors: ≥ 10
Structure: Loose Tube,Unitube Operating Temperature: -40 ~ +60 C
High Light:

Armored Optical Fiber Cable

,

Central Loose Optical Fiber Cable

,

G657A1 Optical Fiber Cable

Product Description

central loose tube cable 4 6 8 12 Core Underground Armored optical fiber cable Outdoor




Name
 JIQIAN GYXTW Cable
Fiber
2-24 Core
Material
Fiber---G652D
Sheath---PE or customized
Installation way
Aerial
Package
Wooden accessory
Delivery
Within 20 days
By sea, careful ship to your address!

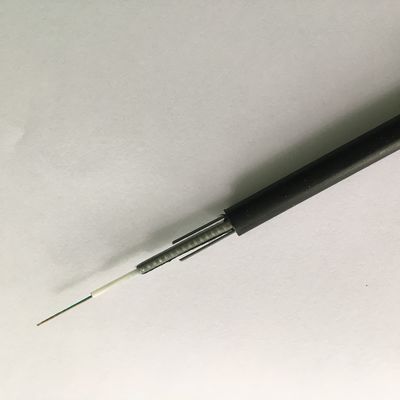

Underground Armored Optical Fiber Cable Central Loose Tube 12  Core 0

Underground Armored Optical Fiber Cable Central Loose Tube 12  Core 1

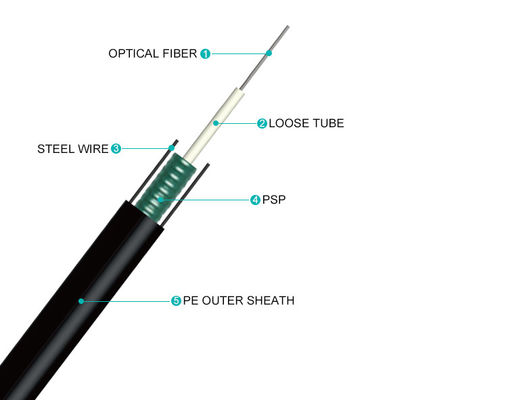

GYTXW 250μm's fibers are positioned in the central of a loose tube which is made of high modulus plastics and filled with water-resistant filling compound. The tube is wrapped with a layer of the plastic coated steel strip(PSP). Except the tube filling compound, PSP, water-blocking material and the PE sheath, it also has two steel wires in two sides to enhance the crush resistance and flexibility.



Feature:

Material of loose tube has good mechanical properties and temperature characteristics

• Material of loose tube has good hydrolysis resistance and high strength

• The tube is filled with special filler to provide critical protection for the fiber

• Good lateral pressure resistance and softness

• Double chrome plating plastic-coated steel tape (PSP) improves the moisture resistance of optical cables

• The two parallel steel wires provides enough tensile strength

• Small diameter, light weight, easy for laying



Applications

• Outdoor Duct, overhead



Optical Techology:



Cable

Count

Out

sheath

Diameter

Weight

Minimum

allowable

TensileStrength

(N)

Minimum

allowable

Crush Load

(N/100nm)

Minimum

Bending

Radius(MM)

Storage

Temperature

(MM) (kg) Short term Long term Short term Long term Short term Long term (°C)
12 8.3 78 1500 600 1000 300 20D 10D -40+60



LCD Delivery  <10000m <20000m <50000m >100000m
  25days  22days 18days  10days


Underground Armored Optical Fiber Cable Central Loose Tube 12  Core 2Underground Armored Optical Fiber Cable Central Loose Tube 12  Core 3

FAQ:

1. Are you the real manufacturer?

Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?

1KM. We support new project of our customers, trial order is available

3.Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.

5.Delivery time?

Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?

Yes, we supply OEM&ODM service, pls feel free to contact.
Underground Armored Optical Fiber Cable Central Loose Tube 12  Core 4
