48 Core GYTC8S Figure 8 Fiber Optic Cable For Communication
48 Core GYTC8S Figure 8 Fiber Optic Cable For Communication 48 Core GYTC8S Figure 8 Fiber Optic Cable For Communication 48 Core GYTC8S Figure 8 Fiber Optic Cable For Communication 48 Core GYTC8S Figure 8 Fiber Optic Cable For Communication
Contact Now

48 Core GYTC8S Figure 8 Fiber Optic Cable For Communication

Minimum Order Quantity : 1000m Packaging Details : wooden drum
Delivery Time : 2-4day Payment Terms : Western Union, MoneyGram, T/T, L/C
Supply Ability : 100km per 2 day
Place of Origin: CHINA Brand Name: jiqian
Certification: ISO Model Number: GYTC8S

Detail Information
Fiber Type: Single Mode & Multi Mode Oem: Available
Application: Aerial Number Of Conductors: 12 24 48
Structure: Stranded Loose Tube Operating Temperature: -40 ~ +60 C
Length: 1KM OR 2KM OR 500M
High Light:

GYTC8S Figure 8 Fiber Optic Cable

,

Aerial Figure 8 Fiber Optic Cable

,

2KM Figure 8 Fiber Optic Cable

Product Description

GYTC8S Figure 12 24 Stranded Loose Tube Messenger Wire Aerial outdoor Fiber Optic cable

Self-Supporting Aerial 48 Core GYTC8S Outdoor Fiber Optical Communication Cable

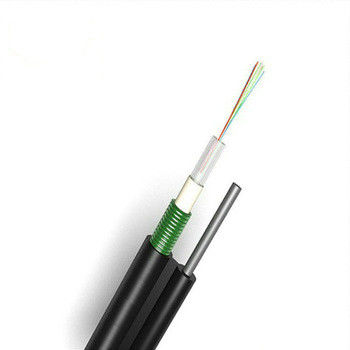

figure-8 optical fiber cable with metallic central strength member of steel wire/strand and moisture barrier inner sheath incorporating steel messenger wire suitable for overhead installation as pole-to-pole or pole-topremises.Tubes contain optical single-mode or multimode fibers color coded as per the color coding scheme.
48 Core GYTC8S Figure 8 Fiber Optic Cable For Communication 0
48 Core GYTC8S Figure 8 Fiber Optic Cable For Communication 1




Optical Characteristics:

  G.652D 50/125μm 62.5/125μm
Attenuation (+20℃) @850nm   ≤3.0 dB/km ≤3.0 dB/km
@1300nm   ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km
@1550nm ≤0.22 dB/km
Bandwidth (Class A) @850nm   ≥500 MHz·km ≥200 MHz·km
@1300nm   ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture   0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm

48 Core GYTC8S Figure 8 Fiber Optic Cable For Communication 2

48 Core GYTC8S Figure 8 Fiber Optic Cable For Communication 3

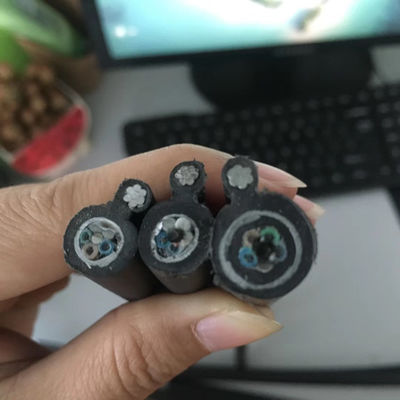

Structure:

Figure 8 non armoured fiber cable consists of :

1.Stranded loose tube

2.Steel wire strength member

3.Core filler compound

4.Fillers

5.Phosphating or Galvanized steel wire

6.PE sheath



Standards and Certificate:

Fiber optical cable complies with Standard YD/T 769-2003,IEC60794-1

Certificate: ISO9001



Characteristics
1 Good mechanical and temperature performance
2.High strength loose tube that is hydrolysis resistant
3.Special tube filling compound ensure a critical protection of fiber
48 Core GYTC8S Figure 8 Fiber Optic Cable For Communication 4





48 Core GYTC8S Figure 8 Fiber Optic Cable For Communication 5



FAQ:

1. Are you the real manufacturer?

Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?

1KM. We support new project of our customers, trial order is available

3.Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.

5.Delivery time?

Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?

Yes, we supply OEM&ODM service, pls feel free to contact.48 Core GYTC8S Figure 8 Fiber Optic Cable For Communication 6
