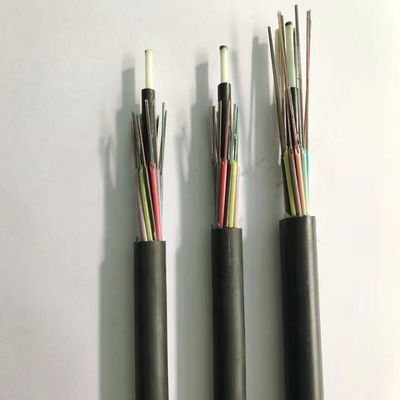

All Dielectric Anti Rodent Non Metallic Fiber Optic Cable GYFTY
All Dielectric Anti Rodent Non Metallic Fiber Optic Cable GYFTY All Dielectric Anti Rodent Non Metallic Fiber Optic Cable GYFTY All Dielectric Anti Rodent Non Metallic Fiber Optic Cable GYFTY
Contact Now

All Dielectric Anti Rodent Non Metallic Fiber Optic Cable GYFTY

Minimum Order Quantity : 1km Packaging Details : wooden drum
Delivery Time : 5-8 work days Payment Terms : L/C, T/T, Western Union
Supply Ability : 30km per day
Place of Origin: Guangzhou,China Brand Name: JQ/OEM
Certification: ISO9001 ROHS CE-EMC FCC SDOC

Detail Information
Model Number: GYFTY Fiber Count: 4-288 Cores
Fiber Type: Single Mode Jacket: PE
Color: Black Product Name: Outdoor Fiber Optic Cable
Length: 2km Or Customized Length Structure: Loose Tube
Installation: Aerial & Duct Number Of Conductors: ≥ 10
High Light:

Anti Rodent Fiber Optic Cable

,

GYFTY Fiber Optic Cable

,

2km Length Fiber Optic Cable

Product Description

All Dielectric Anti Rodent Cable Non-Metallic Fiber Optic Cable GYFTY



Features

1. small diameter, lighter and softness;
2. reasoning designation,excellent water-blocking performance;
3. FRP as non-metallic central strength member;
4. good electromagnetism resistance ability.
5. jelly-filled, fiber contained loose tube and PP filler
6. water blocking tape, PE outer sheath


Application

Long-distance communication, local trunk line, CATV & computer networks system
Adopted to Outdoor distribution
Suitable for aerial duct and Direct Buried method


Optical Characteristics











G.652D



50/125um



625/125μm



Attenuation



@850nm







≤3.0dB/km



≤3.0dB/km



(+20°C)



@1300nm







≤1.0dB/km



≤1.0dB/km







@1310nm



≤0.36dB/km















@1550nm



≤0.22dB/km











Bandwidth(ClassA)



@850nm







2500MHzkm



2200MHz:km







@1300nm







21000MHz-km



2600MHzkm



NumericalAperture











0.200+0.015NA



0.275+0.015NA



CableCut-

offWavelengthλcc







≤1260nm

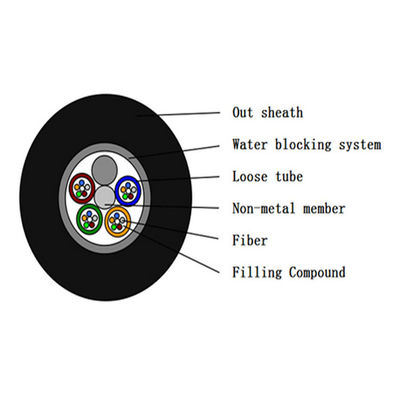

Cable Parameters



Fiber count Structure Fibers per tube

Loose tube diameter

(mm)

CSM diameter/pad diameter

(mm)

Nominal Thickness of outer jacket

(mm)

Cable diameter/

Height

(mm)

Cable weight

(kg/km)
4 1+5 4 1.8±0.1 1.4/1.4 1.6 8.8±0.2 62
6 1+5 6 1.9±0.1 1.4/1.4 1.6 8.8±0.2 62
8 1+5 8 1.9±0.1 1.4/1.4 1.6 8.8±0.2 62
12 1+5 6 1.9±0.1 1.4/1.4 1.6 9.0±0.2 65
24 1+5 6 1.9±0.3 1.4/1.4 1.6 9.2±0.2 68
36 1+6 12 2.2±0.1 1.6/1.6 1.6 9.2±0.2 68
48 1+5 12 2.2±0.1 1.6/1.6 1.6 9.2±0.2 68
72 1+6 12 2.2±0.1 2.0/2.0 1.6 10.6 80
96 1+8 12 2.2±0.1 2.2/3.5 1.6 12.0 103
144 1+12 12 2.2±0.1 2.2/6.4 1.8 15.0 180



All Dielectric Anti Rodent Non Metallic Fiber Optic Cable GYFTY 0

Producion line



All Dielectric Anti Rodent Non Metallic Fiber Optic Cable GYFTY 1



Packing detail

All Dielectric Anti Rodent Non Metallic Fiber Optic Cable GYFTY 2

All Dielectric Anti Rodent Non Metallic Fiber Optic Cable GYFTY 3



FAQ

1.Are you tradning company or manufacturer?
 We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
 for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?
 We will delivery before tested every fibers when finished production.
 After price confirmation, you can require for free samples to check our quality.

3.Can you accept small order?
   Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
