Unitube Armored Aerial Fiber Optic Cable 7.0mm 8.0mm Diameter
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 2km | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 5-8 work days | Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 4500KM Per Month |
| Place of Origin: | Guangzhou,China | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | ISO9001 ROHS CE-EMC FCC SDOC | Model Number: | ASU Cable/GYFFY |
|
Detail Information |
|||
| Fiber Count: | 2-24core | Type: | Aerial |
|---|---|---|---|
| Span Length: | 80m Or 100m | Fiber Model: | G652D |
| Sheath: | PE | Strength Member: | FRP |
| Sheath Color: | Black | Keyword: | Mini ADSS |
| High Light: | G652D Aerial Fiber Optic Cable,ADSS Aerial Fiber Optic Cable,SDOC Aerial Fiber Optic Cable |
||
Product Description

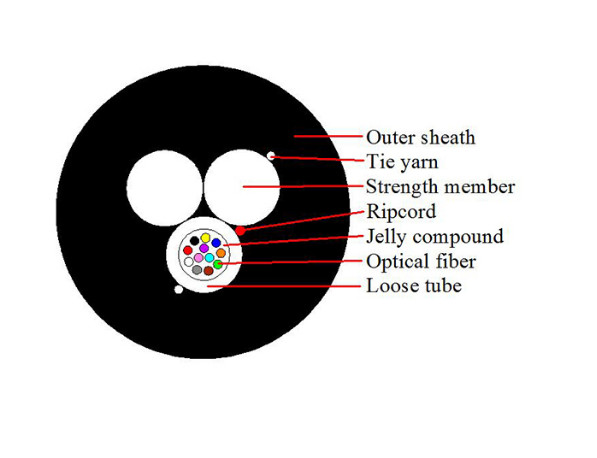

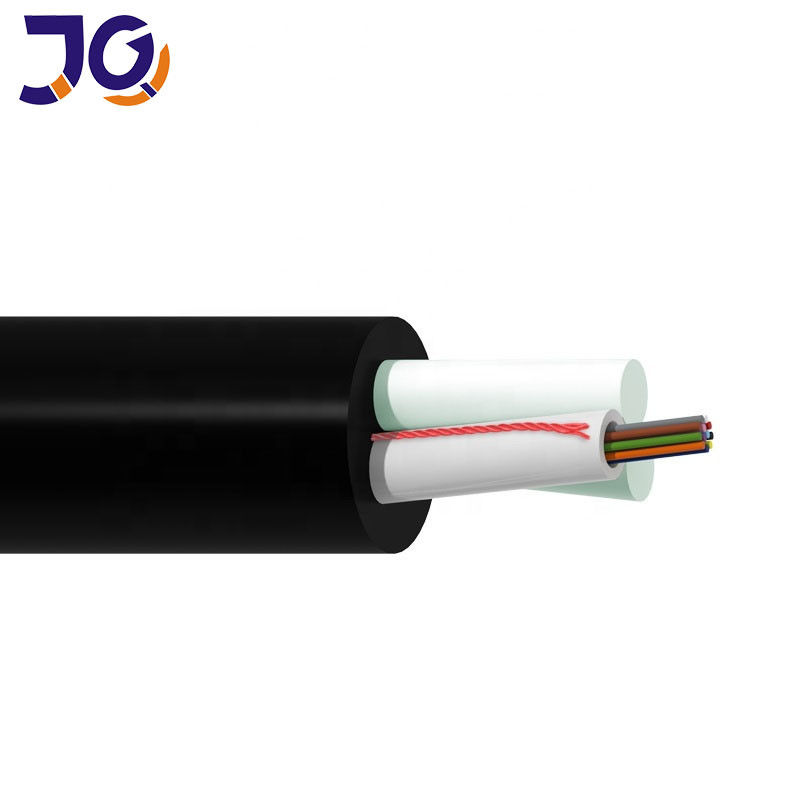

ASU cable is one loose tube stranded. Fibers, 250um , are positioned into a loose tube made of high modulus plastics. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath.
Feature
Small Size and Ligth Weight
Two FRP as strength member to provide good tensile performance
Gel Filled or gel free , good waterproof performance
Low price ,high fiber capacity
applicable for short span aerial and duct installation
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical parameter
Cable Core |
Unit | 2F | 4F | 6F | 8F | 10F | 12F |
| No. Of Tubes | 1 | 1 | 1 | 1 | 1 | 1 | |
| No. Of fibers | core | 2 | 4 | 6 | 8 | 10 | 12 |
| Fiber Counts in tube | core | 2 | 4 | 6 | 8 | 10 | 12 |
| Cable Diameter | mm | 6.6±0.5 | 6.8±0.5 | ||||
| Cable Weight | Kg/km | 40±10 | 45±10 | ||||
| Allowable tensile Strength | N | Span=80,1.5*P | |||||
| Allowable crush resistance | N | 1000N | |||||
| Operation temperature | ℃ | -20℃ to +65℃ | |||||
