All Dielectric Aireal Single Mode FRP Strength 24 Core ADSS OFC Fiber

Minimum Order Quantity : 1km Packaging Details : wooden drum/customized
Delivery Time : 2-4days Payment Terms : Western Union, MoneyGram, T/T, L/C
Supply Ability : 100km per Month
Place of Origin: CHINA Brand Name: jiqian
Certification: ISO9001 Model Number: ADSS 12core

Detail Information

Fiber Type: G652D Application: Aerial
Number Of Conductors: 12 Core 24 Core 48 Core Structure: Stranded Loose Tube
Operating Temperature: -40 ~ +60 C Central Strength Member: FRP
Span: 100m 200m
High Light:

24 Core ADSS OFC Fiber

,

Single Mode ADSS OFC Fiber

,

ADSS all dielectric fiber optic cable

Product Description

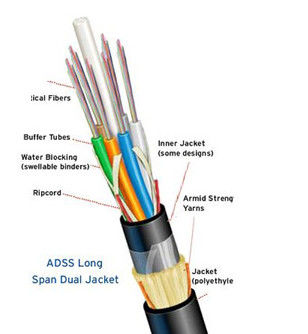

ADSS single-sheathed fiber optic cable adopts stranded Loose tube structure. The optical fiber is inserted into the loose tube made of high-modulus polyester material, and the waterproof compound is filled in the tube.The loose tube (and fillers) is twisted around the non-metallic strengthen member (FRP3) to form a compact cable core. The cable core is wrapped by water blocking tape and stranded with Kevlar Aramid fiber with reinforcing effect. Finally, a PE jacket or an AT)jacket is extruded.


All Dielectric Aireal Single Mode FRP Strength 24 Core ADSS OFC Fiber 0


Features:

1.Can be installed without shutting off the power.
2.Excellent mechanical performance.
3.Good performance of tensile strength and temperature.
4.Light weight and small diameter reducing the load caused by ice/wind, as well as the load on towers
  and backprops.
5.Long life span time over 25 years.



Applications:

Widely used in self support aerial / overhead.

All Dielectric Aireal Single Mode FRP Strength 24 Core ADSS OFC Fiber 1

Optical Performance:



Fiber Type

G.652D,125.0+-1.0μm

Mode Field Diameter

9.2+-0.2μm at 1310 nm

Cladding Diameter

125+-1μm

Cladding Non-Circularity

<=1%

Coating Diameter

245+-10μm

Attenuation Coefficient

<=0.38dB/km at 1310nm,<=0.22dB/km at 1550nm

Chromatic Dispersion

<=3.5ps/nm/km at1285-1330nm,<=18ps/nm/km at 1550nm

Zero Disperson Wavelength

1300-1322nm

PMD Coefficient

<=0.2ps/√km





Cable Parametres:



Model No.

ADSS

Fiber count

2-144 cores

Fiber type

SM G652D

Central Strangth member

FRP

Loose tube

PBT

Type of filling compound

Jelly

Water-blocking system

Water blocking tape

Strength member

Kevlar yarn

Inner sheath

PE

Outer sheath

PE/AT

Applicantion

Overhead;Ariel for telecommunication





Packing:



1.Each single length of cable shall be reeled on Fumigated Wooden Drum suitable for long distance shipment.

Covered by plastic buffer sheet.

2.Sealed by strong wooden battens.

3.At least 1 meter inside end of cable will  be reserved for testing.



All Dielectric Aireal Single Mode FRP Strength 24 Core ADSS OFC Fiber 2





FAQ:

1. Are you the real manufacturer?
Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is available


3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.


4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.


5.Delivery time?

Generally 3-7 working days, also it is according to qty.


6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.



7.Which brand of fiber do you use?

Corning,YOFC,Fiberhome,etc
