OEM 144 Core Outdoor Duct GYFTY Aerial Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 1km | Price : | 118 |
|---|---|---|---|
| Packaging Details : | Plywood drum | Delivery Time : | 3-5 days,it depends on order quantity |
| Payment Terms : | L/C, T/T, Western Union,Alipay | Supply Ability : | 4500 per month |
| Place of Origin: | China | Brand Name: | Jiqian |
|---|---|---|---|
| Certification: | FCC/ROHS/ISO9001/CE | Model Number: | Mini ADSS |
|
Detail Information |
|||
| High Light: | ASU Outdoor Fiber Optic Cable,6 Cores Outdoor Fiber Optic Cable,All dielectric ASU Cable |
||
|---|---|---|---|
Product Description
All-dielectric Mini ADSS 6 Cores 12 Cores Fiber Cable ASU 80 Fiber Optic Cable
Specification:
Fiber parameter
| Item | Unit | Specification | |
| Fiber Type | G.652D | ||
| Mode field diameter | 1310nm | mm | 9.2±0.4 |
| 1550nm | mm | 10.4±0.8 | |
| Cladding diameter | mm | 125.0±1 | |
| Cladding non-circularity | % | £1.0 | |
| Core/cladding concentricity error | mm | £0.5 | |
| Coating diameter | mm | 245±5 | |
| Coating non-Circularity | % | £6.0 | |
| Coating/cladding concentricity error | mm | £12.0 | |
| Cable cut-off wavelength | nm | £1260 | |
| Attenuation Coefficient | 1310nm | dB/km | £0.36 |
| 1550nm | dB/km | £0.22 | |
| Proof stress level | kpsi | ≥100 | |

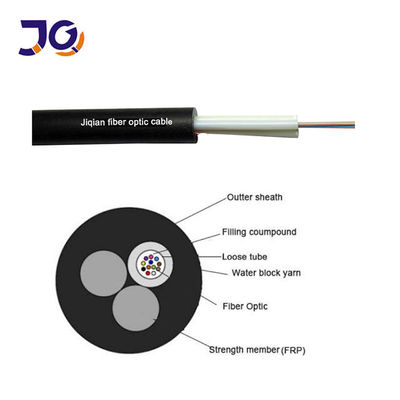

Cable parameter
| Item | Parameters | |
| Fiber Count | 8 | |
| Water blocking material | Water block yarn | |
| Span | 100m | |
| Colored coated fiber | Dimension | 250µm±15µm |
| Color | Blue,Orange,Green,Brown,Gray,White,Blown.Pink | |
| Loose tube | Diameter | 2.0mm±0.1mm |
| Material | PBT | |
| Color | blue | |
|
Filling compound in loose tube
|
Gel | |
| Strength Member | FRP | 1.5mm |
| Armoured | Non-armoured | |
|
Outer sheath
|
Material | PE |
| 6.8mm | ||
Packing&Delivery:
2km/3km/4km per wooden drum or customized
Port:Shenzhen/Guangzhou
Lead time:
| Quantity(km) | 100-200 | >200 |
| Est time(day) | 3-5 days | negotiable |
FAQ:
1.Are you a manufacturer or trade company?
Yes. We are a factory in Guangzhou,China
2.Do you provide samples? is it free or charched?
Yes, sample is available, It's free,just need to pay for the freight
3.Do you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5.Which kind of certification you have ?
ISO9001-2000
6.What is your delivery time?
Usually within 3-5 working days
7.What is your fiber brand?
Corning,YOFC ,Fiberhome
8.What is your payment way?
T/T, L/C, Western Union and Paypal.
9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your requirements
