ASU80 Single Losse Tube Self Supporting Fiber Optic Cable

Minimum Order Quantity : 2km Packaging Details : wooden drum
Delivery Time : 5-8 work days Payment Terms : L/C, T/T, Western Union
Supply Ability : 4500KM Per Month
Place of Origin: Guangzhou,China Brand Name: JQ/OEM
Certification: ISO9001 ROHS CE-EMC FCC SDOC Model Number: ASU 80

Detail Information

Fiber Count: 2-12core Type: Aerial
Span Length: 80m Or 100m Fiber Model: G652D
Sheath: PE Strength Member: 2*FRP
Sheath Color: Black OD: 7.0mm
Spam: 80m
High Light:

ASU80 Self Supporting Fiber Optic Cable

,

ASU80 Single Losse Tube Cable

,

FRP Self Supporting Fiber Optic Cable

Product Description

ASU80 Self-Supporting Single Losse Tube Fiber Optic Cable

Non-Armored Uni-Tube optical cable with fibers placed in loose buffer tube.The cable core is protected with jelly to prevent water intrusion and migration, and coverwith a black polyethylene out jacket. Two embedded FRP or metallic wire provide desire tension.

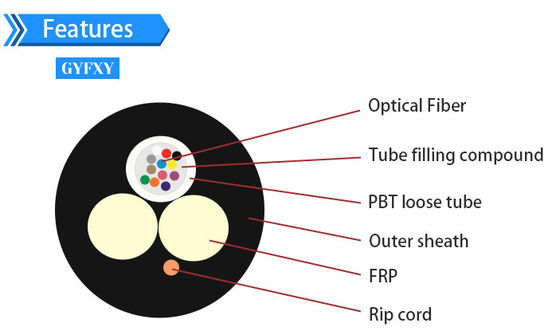

ASU80 Single Losse Tube Self Supporting Fiber Optic Cable 0

Feature

Small Size and Ligth Weight

Two FRP as strength member to provide good tensile performance

Gel Filled or gel free , good waterproof performance

Low price ,high fiber capacity

applicable for short span aerial and duct installation

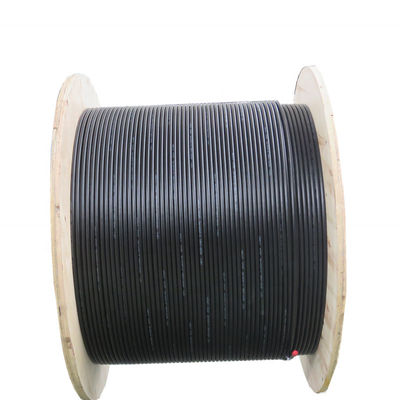

ASU80 Single Losse Tube Self Supporting Fiber Optic Cable 1



Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % 0.7
Core-Cladding Concentricity Error um 0.5
Coating Diameter um 245±5
Coating Non-Circularity % 6.0
Cladding-Coating Concentricity Error um 12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km 0.36
1550nm dBkm 0.22





Technical parameter


Cable Core
Unit 2F 4F 6F 8F 10F 12F
No. Of Tubes   1 1 1 1 1 1
No. Of fibers core 2 4 6 8 10 12
Fiber Counts in tube core 2 4 6 8 10 12
Cable Diameter mm 7.0mm±0.2 0.8±0.2
Cable Weight Kg/km 40±10 45±10
Allowable tensile Strength N Span=80,1.5*P
Allowable crush resistance N 1000N
Operation temperature -20℃ to +65℃





Real Factory

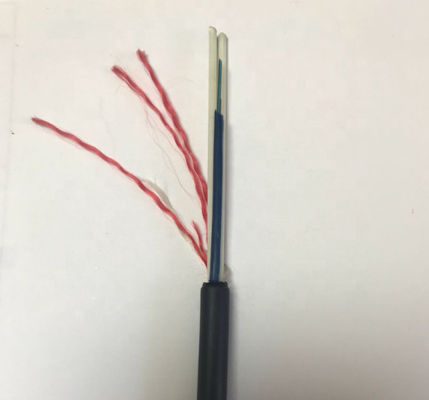

ASU80 Single Losse Tube Self Supporting Fiber Optic Cable 2

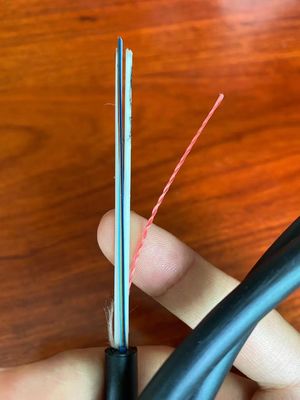

ASU80 Single Losse Tube Self Supporting Fiber Optic Cable 3

ASU80 Single Losse Tube Self Supporting Fiber Optic Cable 4



What does the acronym ASU stand for?
When you find this abbreviation in the nomenclature of an optical cable, it means that it is a self-supporting (AS) cable with a single loose tube (U) through which all the optical fibers pass.

The number that accompanies the acronym refers to the number of meters in which that cable model can support itself, that is, in spans of up to 80m, spans of 100m or spans of 120. This span is nothing more than the distance between the posts you will install the support system for the cable.





ASU 80
The ASU80 optical cables are self-supporting in spans of up to 80 meters, therefore, they are indicated for cable passage in urban centers, as within cities the poles are usually, on average, 40 meters apart, which guarantees a good support for this cable.



ASU 100
ASU100 optical cables are self-supporting in spans of up to 100meters, therefore, they are indicated for cable routing in rural areas, where the poles are usually between 90 and 100 meters apart.



ASU 120
ASU120 optical cables are self-supporting in spans of up to 120 meters, therefore, they are indicated for the passage of cables in environments where the poles are far apart, such as on roads and crossings over rivers and bridges.

We still have self-supporting cables for longer distances on the market, such as the ASU500, but the 80, 100 and 120 are the most commonly used due to their applicability.
