Double Jacket Direct Buried GYFTY53 Underground Fiber Optic Cable

Minimum Order Quantity : 1KM Packaging Details : wooden drum
Delivery Time : 3-5 working days ,it depends on your order Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 60000KM/month
Place of Origin: Guangdong, China Brand Name: Jiqian
Certification: ISO9001/CE Model Number: GYFTY53

Detail Information

Fiber Count: 2-144 Jacket Material: PE
Jacket Color: Black Lift Time: More Than 25years
Fiber Type: G652D,G652B,G657A Application: Underground
Factory: Yes Fiber Brand: YOFC
High Light:

GYFTY53 Direct Buried Underground Cable

,

GYFTY53 DoubYOFC Direct Buried Fiber Optic Cablele Jacket Underground Cable

,

FRP Direct Buried Fiber Optic Cable

Product Description

Outdoor Fiber Optic Cable Manufacturers Double Jacket Direct Buried Gyfty53 Fiber Optical Cable 1km Price

Double Jacket Direct Buried GYFTY53 Underground Fiber Optic Cable 0


Product Description

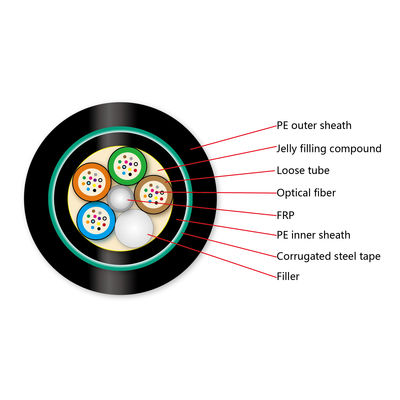

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic.

The tubes are filled with a water-resistant filling compound.

A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member.

The tubes (and fillers) are stranded around the strength member into a compact and circular core.

Then the cable core is covered with a thin polyethylene (PE) inner sheath, which is filled with jelly to protect it from water ingress.

A layer of water-blocking material is applied around the cable core to prevent water ingress all the same.

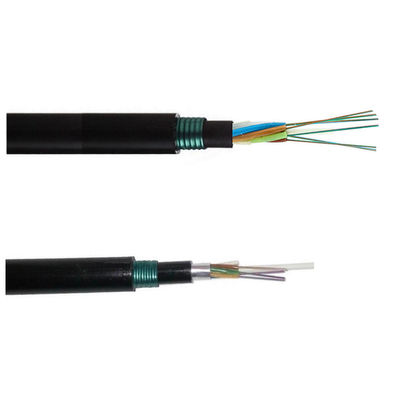

After a corrugated steel tape armor is applied. the cable is completed with a PE outer sheath.

Double Jacket Direct Buried GYFTY53 Underground Fiber Optic Cable 1

Features:

  • 1.Good mechanical and temperature performance
    2.High strength loose tube that is hydrolysis resistant
    3.Special tube filling compound ensure a critical protection of fiber
    4.Crush resistance and flexibility
Double Jacket Direct Buried GYFTY53 Underground Fiber Optic Cable 2

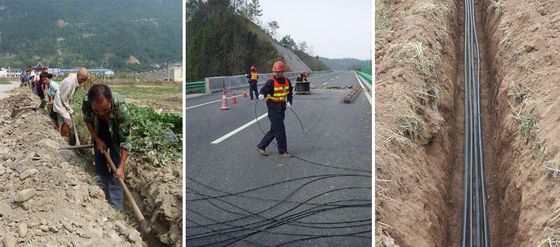

Applicable fields:
Direct buried
Double Jacket Direct Buried GYFTY53 Underground Fiber Optic Cable 3







Optical Parameters:

    50/125µm 62.5/125µm G.652 G.655
Attenuation(+20°C) @850nm ≤3.0dB/km 3.3dB/km
  @1300nm 1.0dB/km 1.0dB/km
  @1310nm     0.36dB/km 0.4dB/km
  @1550nm     0.22dB/km 0.23dB/km
Bandwidth (Class A) @850nm ≥ 500MHz.km ≥ 200MHz.km
  @1300nm ≥ 1000MHz.km ≥ 600MHz.km
Numerical Aperture   0.200 ±0.015NA 0.275 ±0.015NA
Cable Cut-off Wavelength λcc       ≤ 1260nm ≤ 1450nm




Double Jacket Direct Buried GYFTY53 Underground Fiber Optic Cable 4

·Technical Parameters

Cable Type Fiber Count Tubes Fillers

Cable Diameter

mm

Cable Weight kg/km

Tensile Strength

Long/Short Term N

Crush Resistance

Long/Short Term

N/100mm

Bending Radius

Static
/Dynamic

mm

GYFTY53-2~6 2~6 1 7 15.8 230 1000/3000 1000/3000 10D/20D
GYFTY53-8~12 8~12 2 6 15.8 230 1000/3000 1000/3000 10D/20D
GYFTY53-14~18 14~18 3 5 15.8 230 1000/3000 1000/3000 10D/20D
GYFTY53-20~24 20~24 4 4 15.8 230 1000/3000 1000/3000 10D/20D
GYFTY53-26~30 26~30 5 3 15.8 230 1000/3000 1000/3000 10D/20D
GYFTY53-32~36 32~36 6 2 15.8 230 1000/3000 1000/3000 10D/20D
GYFTY53-38~42 38~42 7 1 15.8 230 1000/3000 1000/3000 10D/20D
GYFTY53-44~48 44~48 8 0 15.8 230 1000/3000 1000/3000 10D/20D
GYFTY53-50~60 50~60 5 3 16.8 255 1000/3000 1000/3000 10D/20D
GYFT Y53-62~72 62~72 6 2 16.8 255 1000/3000 1000/3000 10D/20D
GYFTY53-74~84 74~84 7 1 16.8 255 1000/3000 1000/3000 10D/20D
GYFTY53-86~96 86~96 8 0 16.8 255 1000/3000 1000/3000 10D/20D
GYFTY53-98~108 98~108 9 1 19.2 320 1000/3000 1000/3000 10D/20D
GYFTY53-110~120 110~120 10 0 19.2 320 1000/3000 1000/3000 10D/20D
GYFTY53-122~132 122~132 11 1 21.2 380 1000/3000 1000/3000 10D/20D
GYFTY53-134~144 134~144 12 0 21.2 380 1000/3000 1000/3000 10D/20D
Storage/Operating Temperature : -40℃ to + 70℃







Double Jacket Direct Buried GYFTY53 Underground Fiber Optic Cable 5



There are twelve fiber color code.They are A grade fiber.

Double Jacket Direct Buried GYFTY53 Underground Fiber Optic Cable 6



Double Jacket Direct Buried GYFTY53 Underground Fiber Optic Cable 7




Double Jacket Direct Buried GYFTY53 Underground Fiber Optic Cable 8

We are the factory, having quality control.

We privide you factory price.You can save costs, having good quality.



Double Jacket Direct Buried GYFTY53 Underground Fiber Optic Cable 9

Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed



Double Jacket Direct Buried GYFTY53 Underground Fiber Optic Cable 10

We go to exhibitions. We have rich foreign trade experience, you can save purchasing time.

Don't hesitate to contact me. Whatsapp:+86 18122383351





FQA



Q1.Are you the real manufacturer?
We are the real manufacturer with 10 year’s history.


Q2.What’s the MOQ?
The MOQ of Fiber Optic cable is 1km.


Q3.What’s delivery time?
The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.


Q4.How to Store the Optical Fiber Cable Properly?

Store the drum indoor before using, the drum should place sideways not on the end.


Q5. Can you supply customized products and logo?
Yes. We supply OEM service.


Q6.What’s your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
