Aerial ADSS 24 Fibers 100m Span Single Mode Fiber Optic Cable Outdoor
Aerial ADSS 24 Fibers 100m Span Single Mode Fiber Optic Cable Outdoor Aerial ADSS 24 Fibers 100m Span Single Mode Fiber Optic Cable Outdoor Aerial ADSS 24 Fibers 100m Span Single Mode Fiber Optic Cable Outdoor Aerial ADSS 24 Fibers 100m Span Single Mode Fiber Optic Cable Outdoor
Contact Now

Aerial ADSS 24 Fibers 100m Span Single Mode Fiber Optic Cable Outdoor

Minimum Order Quantity : 1KM Packaging Details : wooden drum
Delivery Time : 3-5 working days ,it depends on your order Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 60000KM/month
Place of Origin: Guangdong, China Brand Name: Jiqian
Certification: ISO9001/CE Model Number: ADSS

Detail Information
Fiber Count: 2-144 Lift Time: More Than 25years
Fiber Type: G652D,G652B,G657A Application: Overhead
Factory: Yes Fiber Brand: YOFC
High Light:

100m Single Mode Fiber Optic Cable

,

24 Fiber Single Mode ADSS Cable

,

100m Aerial ADSS Cable

Product Description

Outdoor 48 96 144 Core Aramid Yarn Pe At Sheath Non-metallic 100m SpanFibre Optic Cable

Aerial ADSS 24 Fibers 100m Span Single Mode Fiber Optic Cable Outdoor 0

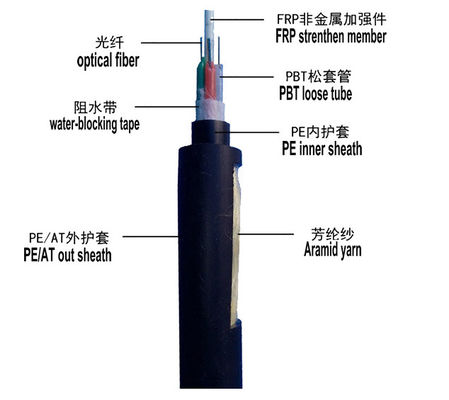

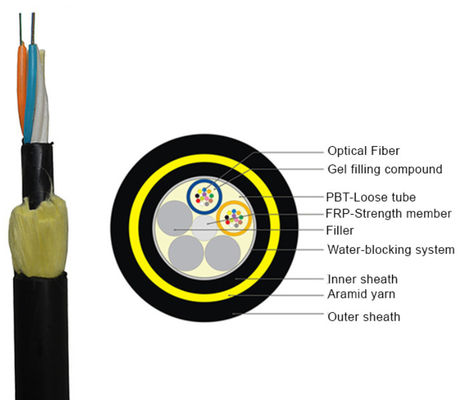

Structure Feature:

1.ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics.
2.The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP(Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.
3.After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath.

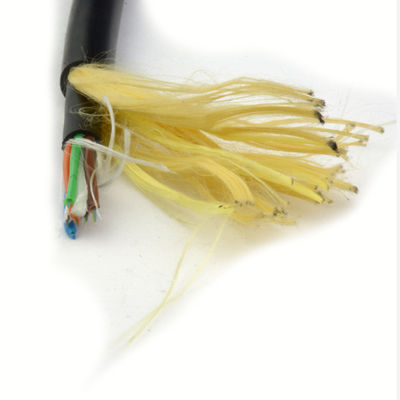

4.After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
Aerial ADSS 24 Fibers 100m Span Single Mode Fiber Optic Cable Outdoor 1

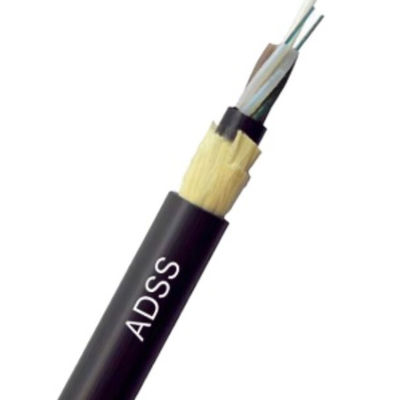

Product Feature

---Can be installed without shutting off the power
---Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
---Large span lengths
---Good performance of tensile strength and temperature
--- Arc-erosion-resistant AT jecket
---The design life span is 30 years





Aerial ADSS 24 Fibers 100m Span Single Mode Fiber Optic Cable Outdoor 2



Application



Aerial ADSS 24 Fibers 100m Span Single Mode Fiber Optic Cable Outdoor 3



ADSS Data Sheet
Fiber quantity
/
2~30
32~60
62~72
74~96
98~120
122~144
Structure
/
1+5
1+5
1+6
1+8
1+10
1+12
Optical fiber type
/
G.652D
Central strength member
Material
mm
FRP
Diameter
(average value)
1.5
1.5
2.1
2.1
2.1
2.1
Cushion layer
Material
mm
MDPE
Thickness
(average value)



3.4
4.7
6.2
Loose tube
Material
/
PBT
Diameter
(average value)
mm
1.8
2.1
2.1
2.1
2.1
2.1
Thickness
(average value)
0.32
0.35
0.35
0.35
0.35
0.35
Max.fiber qty
6
12
12
12
12
12
Loose tube color
Full color
Fiber excess length
%
0.7~0.8
Water-resistant
Material
/
Jelly
Inner sheath
Material
mm
MDPE
Thickness
(average value)
Standard value:1.0/ min:0.8/ average value:0.9
Non-metallic
component
Material
/
Glass yarn
Outer sheath
Material
mm
MDPE
Thickness
(average value)
Standard value:1.8/ min:1.5/ average value:1.6
Cable diameter (average value)
mm
11.0
11.6
12.2
13.5
14.8
16.3
Cable weight (about)
kg/km
105
115
130
160
195
235
Max.Attenuation coefficien
1310mm
dB/km
0.35
1550mm
0.21
Pull tension strength
Long time
N
1000
Short time
3000
Crush pressure
Long time
N/
100
mm
1000
Short time
3000
Bending radius
Static
mm
12.5O.D.
Dynamic
25 O.D.
Temperature
Installing
°C
-20~+60
Storage & shipping
-40~+70
Working
-40~+70





Aerial ADSS 24 Fibers 100m Span Single Mode Fiber Optic Cable Outdoor 4



There are twelve fiber color code.They are A grade fiber.

Aerial ADSS 24 Fibers 100m Span Single Mode Fiber Optic Cable Outdoor 5

Aerial ADSS 24 Fibers 100m Span Single Mode Fiber Optic Cable Outdoor 6



More Products

Aerial ADSS 24 Fibers 100m Span Single Mode Fiber Optic Cable Outdoor 7

Aerial ADSS 24 Fibers 100m Span Single Mode Fiber Optic Cable Outdoor 8

We are the factory, having quality control.

We privide you factory price.You can save costs, having good quality.



Aerial ADSS 24 Fibers 100m Span Single Mode Fiber Optic Cable Outdoor 9

Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed



Aerial ADSS 24 Fibers 100m Span Single Mode Fiber Optic Cable Outdoor 10

We go to exhibitions. We have rich foreign trade experience, you can save purchasing time.

Don't hesitate to contact me. Whatsapp:+86 18122383351





FQA



Q1.Are you the real manufacturer?
We are the real manufacturer with 10 year’s history.


Q2.What’s the MOQ?
The MOQ of Fiber Optic cable is 1km.


Q3.What’s delivery time?
The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.


Q4.How to Store the Optical Fiber Cable Properly?

Store the drum indoor before using, the drum should place sideways not on the end.


Q5. Can you supply customized products and logo?
Yes. We supply OEM service.


Q6.What’s your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
