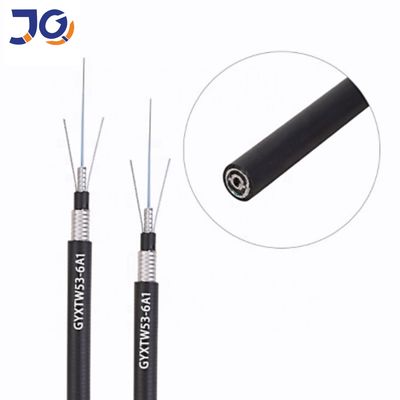

Steel Tape Double Armored Fiber Optic Cable G657A Type For Duct

Minimum Order Quantity : 1KM Packaging Details : wooden drum
Delivery Time : 3-5 working days ,it depends on your order Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 60000KM/month
Place of Origin: Guangdong, China Brand Name: Jiqian
Certification: ISO9001/CE Model Number: GYXTW53

Detail Information

Fiber Count: 2-24 Lift Time: More Than 25years
Fiber Type: G652D,G652B,G657A Application: Aerial,Duct,Direct Burial
Fiber Brand: YOFC OEM: Yes
Color: Black
High Light:

Steel Tape Armored Fiber Optic Cable

,

G657A duct fiber optic cable

,

G657A microduct cable

Product Description

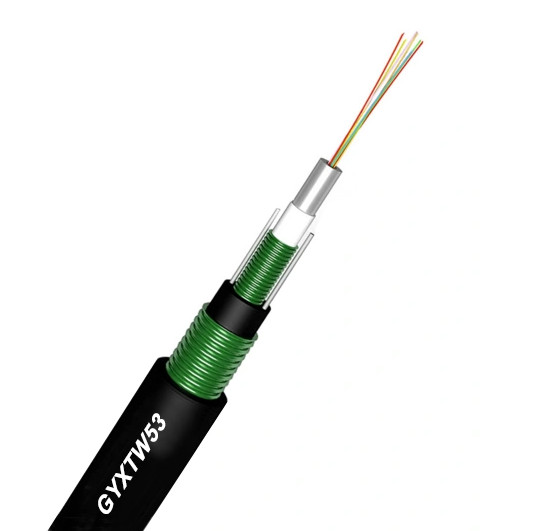

2 4 6 8 12 24 Cores Steel Tape Double Armored Gyxtw53 Outdoor Fiber Optic Cable For Duct



Steel Tape Double Armored Fiber Optic Cable G657A Type For Duct 0



·Product description
1.250μm's fibers are positioned in the central of a loose tube which is made of high modulus plastics and filled with water-resistant filling compound.

2.The tube is wrapped with a layer of the plastic coated steel strip(PSP).

3.Except the tube filling compound, PSP, water-blocking material, it also has two steel wires in two sides to enhance the crush resistance and flexibility.

4.At last, the cable core is covered with a thin PE inner sheath.

5.After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.



Steel Tape Double Armored Fiber Optic Cable G657A Type For Duct 1


·Product Features



1. Good mechanical and temperature performance

2.Metallic armor to protect cable from rodent attack and mechanical damage.

3.Embedded steel wire provide desirable tensile strength and crush resistance.

4.Compact, easy to install.

5.UV and waterproof design.



Steel Tape Double Armored Fiber Optic Cable G657A Type For Duct 2





Mechanical & Environmental Characteristics



Characteristics Short Term Long Term
Max. Tensile Load 3000 N 1000 N
Max. Crush Load 1500 N/100mm 500 N/100 mm
Operating Temp. -20 °C to +60°C
Storage Temp. -40 °C to +85°C
Sheath Material

Standard: PE; Optional: LSZH, PVC or other



Steel Tape Double Armored Fiber Optic Cable G657A Type For Duct 3





Steel Tape Double Armored Fiber Optic Cable G657A Type For Duct 4



There are twelve fiber color code.They are A grade fiber.

Steel Tape Double Armored Fiber Optic Cable G657A Type For Duct 5








Steel Tape Double Armored Fiber Optic Cable G657A Type For Duct 6

We are fiber cable manufacturer.We have a factory.



Steel Tape Double Armored Fiber Optic Cable G657A Type For Duct 7

Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed



Steel Tape Double Armored Fiber Optic Cable G657A Type For Duct 8

We go to exhibitions. We have rich foreign trade experience, you can save purchasing time.

Don't hesitate to contact me. Whatsapp:+86 18122383351





FQA



Q1.Are you the real manufacturer?
We are the real manufacturer with 10 year’s history.


Q2.What’s the MOQ?
The MOQ of Fiber Optic cable is 1km.


Q3.What’s delivery time?
The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.


Q4.How to Store the Optical Fiber Cable Properly?

Store the drum indoor before using, the drum should place sideways not on the end.


Q5. Can you supply customized products and logo?
Yes. We supply OEM service.


Q6.What’s your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
