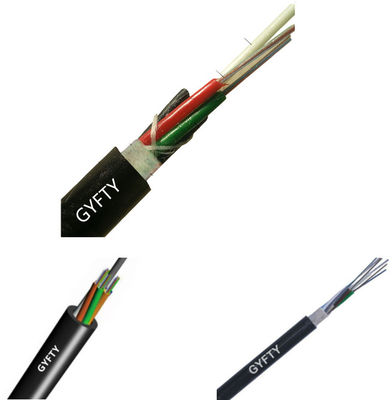

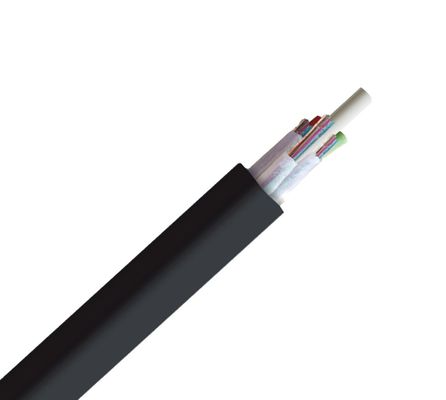

Pipeline Gyfty Single Mode Duct Fiber Optic Cable

Product Description

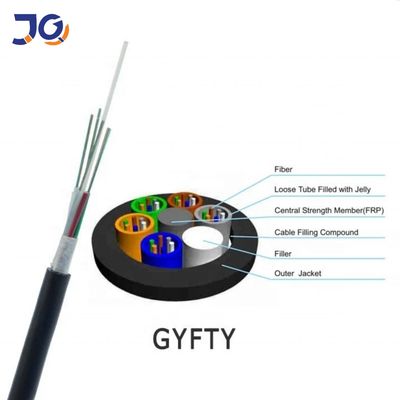

Pipeline Gyfty Single Mode 2-144 Core Communication Fiber Optic Cable

Feature
Non-metallic structure providing excellent anti-electromagnetism. anti thunder and anti-static performances.

Applicable fields:
Long-distance telecom, LAN in high-voltage area or access to telecom network
Especially for power transmission system. excessive thunder areas and high electromagnetic interference.
Recommended layings methods
High-voltage area, Aerial

Advantages:
1. Low dispersion and attenuation.
2. Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and
environmental characteristics.
3. Anti-electromagnetism ability.
4. Small cable diameter, light cable weight, easily to install.

Performance :
Max attenuation : 0.35dB @ 1310nm and 0.21dB/Km @1550nm
Fiber : G652D
Installation: Suitable for aerial or duct
Application: Apply to Long distance communication system, Local area network system and Subscriber network system
Lifetime: above 30 years
Operating temperature : -40°C~+70°C
Permisson bent radius Static : 10 times O.D.
Dynamic : 20 times O.D.

Packaging Details
1.Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed;
2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet, then sealed by strong wooden battens.
