OEM 144 Core Outdoor Duct GYFTY Aerial Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 1kilometer | Packaging Details : | Wooden Drum |
|---|---|---|---|
| Delivery Time : | 3-5days | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 8000 kilometers per month |
| Place of Origin: | Guangdong,China | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | CE/ISO9001 | Model Number: | GYTA |
|
Detail Information |
|||
| Place Of Origin:: | Guangzhou,China | Fiber Count: | 2-288cores |
|---|---|---|---|
| Material Of Jacket: | PE | Application: | Aerial And Duct |
| Fiber Brand: | YOFC | Length: | 2000m/customized |
| Strength Member: | Steel | ||
| High Light: | GYTA Adss Fiber Optic Cable,Armored Adss Fiber Optic Cable,288 fibers self supporting fiber cable |
||
Product Description

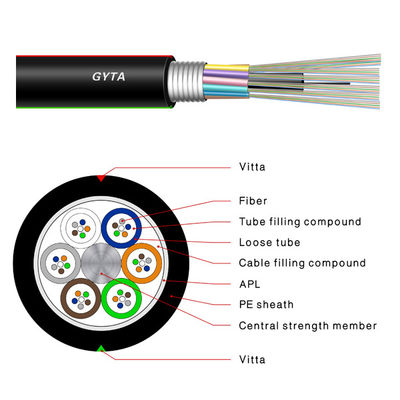

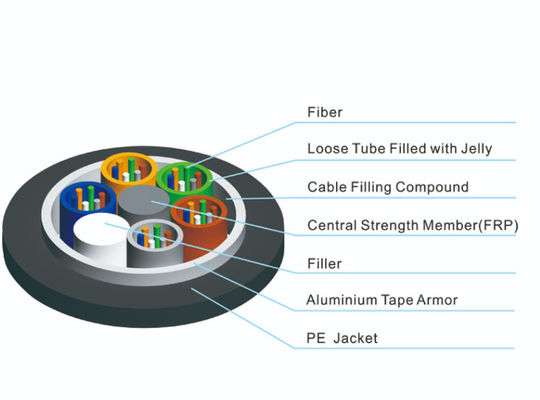

Cable Structure
Features:
Up to 288 fibers
Loose tube gel-filled construction for superior fiber protection.
Corrugated steel tape armor to protect cable from mechanical damage.
UV and waterproof design.
Fiber parameter
| Item | Unit | Specification | |
| Fiber Type | G.652D | ||
|
Mode field diameter |
1310nm | mm | 9.2±0.4 |
| 1550nm | mm | 10.4±0.8 | |
| Cladding diameter | mm | 125.0±1 | |
| Cladding non-circularity | % | ≤1.0 | |
| Core/cladding concentricity error | mm | ≤0.5 | |
| Coating diameter | mm | 245±5 | |
| Coating non-Circularity | % | ≤6.0 | |
| Coating/cladding concentricity error | mm | ≤12.0 | |
| Cable cut-off wavelength | nm | ≤1260 | |
|
Attenuation Coefficient |
1310nm | dB/km | ≤0.36 |
| 1550nm | dB/km | ≤0.22 | |
| Proof stress level | kpsi | ≥100 | |
|
Fiber count |
Structure |
Fibers per tube |
Loose tube diameter (mm) |
CSM diameter/pad diameter (mm) |
Nominal Thickness of outer jacket (mm) |
Cable diameter/ Height (mm) |
Cable weight (kg/km) |
| 4 | 1+5 | 4 | 1.8±0.1 | 1.4/1.4 | 1.4 | 8.5±0.3 | 75 |
| 6 | 1+5 | 6 | 1.85±0.1 | 1.4/1.4 | 1.4 | 8.5±0.3 | 75 |
| 8 | 1+5 | 8 | 1.9±0.1 | 1.4/1.4 | 1.4 | 8.5±0.3 | 75 |
| 12 | 1+5 | 6 | 1.85±0.1 | 1.4/1.4 | 1.4 | 8.5±0.3 | 75 |
| 24 | 1+5 | 6 | 1.85±0.1 | 1.4/1.4 | 1.4 | 8.5±0.3 | 75 |
| 36 | 1+6 | 12 | 1.95±0.1 | 1.5/1.5 | 1.6 | 8.8±0.3 | 85 |
| 48 | 1+5 | 12 | 1.95±0.1 | 1.5/1.5 | 1.6 | 9.3±0.3 | 90 |
| 60 | 1+5 | 12 | 1.95±0.1 | 1.6/1.6 | 1.6 | 9.3±0.3 | 90 |
| 72 | 1+6 | 12 | 1.95±0.1 | 2.0/2.0 | 1.6 | 9.6±0.3 | 95 |
| 96 | 1+8 | 12 | 1.95±0.1 | 1.4/3.2 | 1.6 | 11.5±0.3 | 120 |
| 144 | 1+12 | 12 | 1.95±0.1 | 2.0/5.7 | 1.8 | 14.2±0.3 | 185 |
| 216 | 1+6+12 | 12 | 1.95±0.1 | 2.0/2.0 | 1.8 | 14.5±0.3 | 200 |
| 288 | 1+9+15 | 12 | 1.95±0.1 | 2.0/3.7 | 1.8 | 16.2±0.3 | 240 |
We produce and test cable comply with following standard:
| Mechanical Performance | |
| Max Tension Performance | IEC 60794–1-2-E |
| Max. Operation Tension | IEC 60794–1-2-E1 |
| Crush Test | IEC 6079 –1-2-E3 |
| Impact Test | IEC 60794–1-2-E4 |
| Repeated Bending | IEC 60794–1-2-E6 |
| Torsion Test | IEC 60794–1-2-E7 |
| Cable bend | IEC 60794–1-2-E11A |
| Attenuation Coefficient | ITU-T G.652 |
| Structural Test | IEC-60793-1-20 |
| Environmental Performance | |
| Temperature Cycling | IEC 60794–1-2-F1 |
| Water Penetration | IEC 60794–1–2-F5B |
| Filing Compound Flow |
IEC 60794-1-E14 |
Packing
FAQ
1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable.Our factory is in Guangzhou city,welcome to visit us!
2.About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.
3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .
5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
