Fig 8 Fiber Optical Cable GYXTC8S Armored 6 Core Single Mode Fiber Optic Cable

Minimum Order Quantity : 1kilometer Packaging Details : Wooden Drum
Delivery Time : 2-4 days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 80000kilometers per month
Place of Origin: China Brand Name: JQ/OEM
Certification: CE/ISO9001 Model Number: GYTC8S

Detail Information

Type: Fiber Optic Cable, Gytc8s Color: Black
Jacket: PE Cores: 2-288
Laying Method: Overhead Aerial Fiber Mode: Single Mode & Multi Mode
Fiber Brand: YOFC
High Light:

Fig 8 Fiber Optical Cable

,

Armored 6 Core Fiber Optical Cable

,

GYXTC8S Single Mode Fiber Optic Cable

Product Description

Outdoor aerial self supporting 24core 48core g652d g657a fiber optical figure8 cable gytc8s gyxtc8s gytc8a ftth flat drop cable

Specification
Item
Description
Fiber
ITU G.652 fiber
Tube filling
Tube filling compound
Loose tube
Material
PBT
Diameter
1.95mm±0.1mm
Outer sheath
Material
PE
Color
Black
Wire messager
steel wires
Wire diameter
7*0.1mm
Tension(Long Term)
2500N
Tension(Short Term)
5000N
Crush(Long Term)
300N/10cm
Crush(Short Term)
1000N/10cm
Min. Bend Radius(Dynamic)
20D mm
Min.Bend Radius(Static)
10D mm
Tube color
blue, orange, green, brown, slate, white, red, black, yellow, violet, pink and aqua

Characteristics

Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility

Structure:

Figure 8 non armoured fiber cable consists of :

1.Stranded loose tube

2.Steel wire strength member

3.Core filler compound

4.Fillers

5.Phosphating or Galvanized steel wire

6.PE sheath

Standards and Certificate:

Fiber optical cable complies with Standard YD/T 769-2003,IEC60794-1

Certificate:CE ROHS ISO9001

Product description

1.Low dispersion and attenuation
2.Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
3.Compact structure and lightness, flexible and good bend-resistant performance
4.With small cable diameter, light cable weight, self-supporting
5.Operating Temperature : -40~+60°C

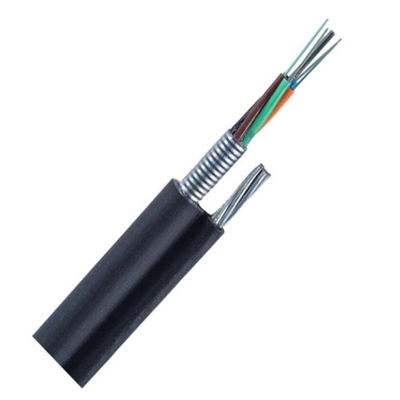

Fig 8 Fiber Optical Cable GYXTC8S Armored 6 Core Single Mode Fiber Optic Cable 0

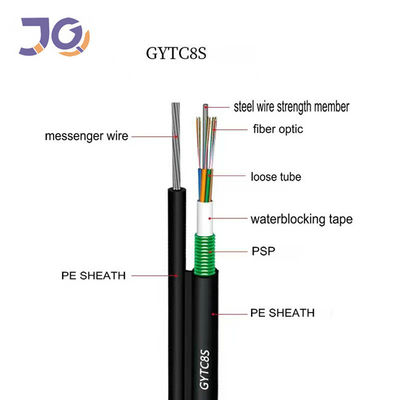

Cable Structure

Fig 8 Fiber Optical Cable GYXTC8S Armored 6 Core Single Mode Fiber Optic Cable 1

FAQ

1.Are you tradning company or manufacturer?

We are the manufacturer with 10 years' experience ,we are specialized in research,development and production

for fiber optic cable. Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?

We will delivery before tested every fibers when finished production.

After price confirmation, you can require for free samples to check our quality.

3.Can you accept small order?

Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?

Usually about 3-7days working days,it mainly depend on order quantity.

But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?

Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
