Product Description
FTTH optical fiber cables G652 G657A fibre 1 2 core single mode GJYXCH drop fiber optic cable
Products Description

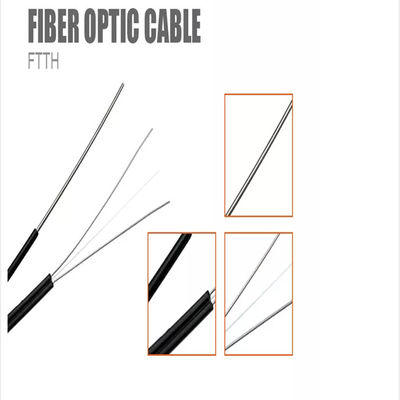

Self-support indoor/outdoor drop cable FTTH fiber optic cable

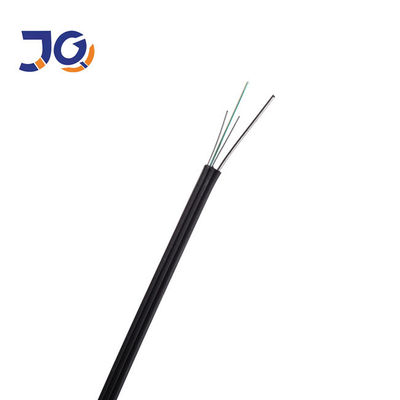

Fiber Optic Drop Cable access to the use of dish-shaped optical cable (indoor wiring) is the optical communication unit (fiber) in
the center, placed on both sides of two parallel non-metallic reinforcement (FRP) or metal reinforcing member, and finally
extrusion black or color poly Vinyl chloride (PVC) or LSZH (LSZH, low smoke, halogen-free, flame retardant) jacket.
Characteristic:
Flex durable fiber to provide greater bandwidth and enhance network transmission characteristics
Two parallel metallic strength member to protect the fiber and provide adequate tension and pressure
single metallic strength member makes optical cable having good tensile performance
Optical cable has simple structure, light weight and strong practicability
unique groove design, Easy peeled off and splice, simplify the installation and maintenance
Low smoke halogen-free flame-retardant sheath, pro-environment
Optical Characteristic:
Model
|
142 |
242 |
342 |
442 |
| Type |
G.652D |
G.657A |
50/125 μm |
62.5/125 μm |
Attenuation(+20 ℃) |
850nm |
|
|
≤3.0dB/km |
≤3.2dB/km |
| 1300nm |
|
|
≤1.0dB/km |
≤1.2dB/km |
| 1310nm |
≤0.36dB/km |
≤0.4dB/km |
|
|
| 1550nm |
≤0.22dB/km |
≤0.23dB/km |
|
|
| Brandwidth(Class A) |
850nm |
|
|
≥500MHz.km |
≥200MHz.km |
| 1300nm |
|
|
≥1000MHz.km |
≥600MHz.km |
| Numerical Aperture |
|
|
0.200 ±0.015NA |
0.275 ±0.015NA |
| Cable Cut-off Wave length |
≤1260nm |
≤1450nm |
|
|
Fiber parameter
| Item |
Unit |
Specification |
| Fiber Type |
G.652D |
|
Mode field diameter
|
1310nm |
mm |
9.2±0.4 |
| 1550nm |
mm |
10.4±0.8 |
| Cladding diameter |
mm |
125.0±1 |
| Cladding non-circularity |
% |
≤1.0 |
| Core/cladding concentricity error |
mm |
≤0.5 |
| Coating diameter |
mm |
245±5 |
| Coating non-Circularity |
% |
≤6.0 |
| Coating/cladding concentricity error |
mm |
≤12.0 |
| Cable cut-off wavelength |
nm |
≤1260 |
|
Attenuation Coefficient
|
1310nm |
dB/km |
≤0.36 |
| 1550nm |
dB/km |
≤0.22 |
| Proof stress level |
kpsi |
≥100 |

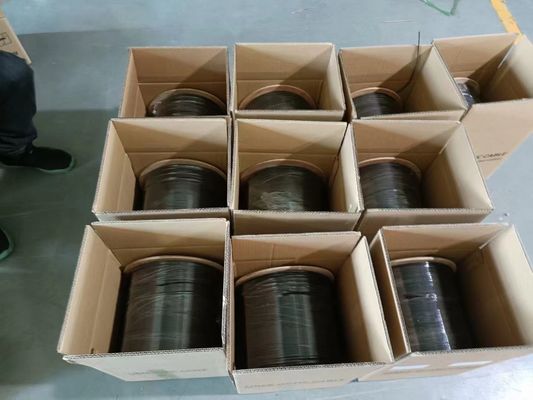

Packing

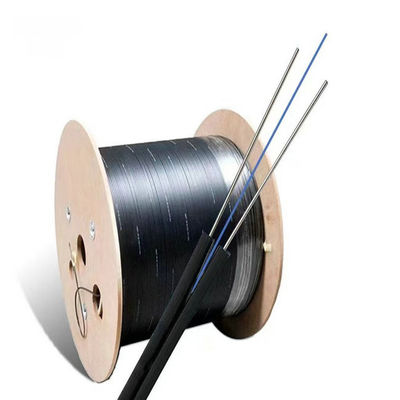

1/2/3/4km or customized length export carton
FAQ
1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable,drop cable. Our factory is in Guangzhou city,welcome to visit us!
2.About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.
3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .
5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
