GYXTC8Y Outdoor Fiber Optical PE Jacket

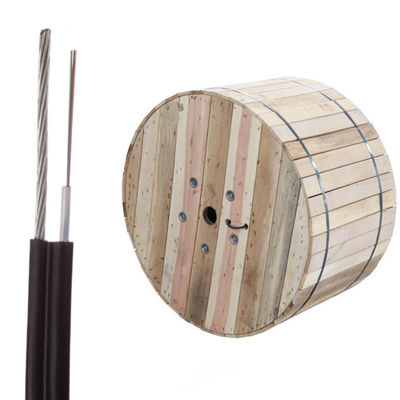

Minimum Order Quantity : 1kilometer Packaging Details : Wooden Drum
Delivery Time : 4-6 work days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 8000 kilometers per month
Place of Origin: Guangdong China Brand Name: JQ
Certification: ISO9001/ ROHS/ CE/ FCC Model Number: gyxtc8y

Detail Information

Type: Fiber Optic Cable Suspension Wire Material: Steel Wire
Sheath Material: PE Applicaion: Aerial
Product Name: Outdoor Aerial GYXTC8Y 12 Core Figure 8 Optical Fiber Cable Temperature Range: -20°~70°C
Fiber Type: G.652D Life Span: More Than 30 Years
High Light:

GYXTC8Y Outdoor Fiber Optic Cable

,

1.3MM Diameter Outdoor Fiber Optic Cable

,

PVC Jacket Outdoor Fiber Optic Cable

Product Description

Introduction:

The type of this fiber with single-mode G652d with a loose tube which is made of high modulus plastic .2-12 fibers, jelly filled, fiber contained central loose tube, water blocking jelly,copolymer coated PSP or APL, PE outer sheath, fig 8 type, one steel wire suspension line.This cable is light, flexible, easy for the laying and it is one of products for FTTH solution

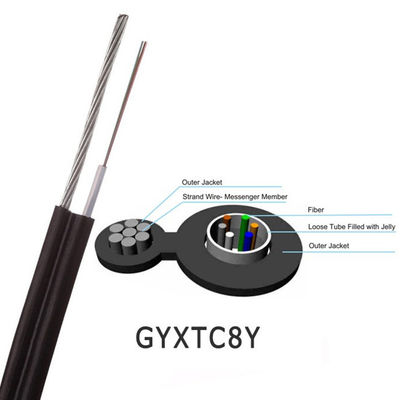

The loose tube is made of high modulus plastics (PBT), which are filled with water resistant gel. The corrugated steel tape is applied which provide for crush resistant. Outer sheath is made of UV resistance PE jacket. Figure-8 self-supporting structure provides high tensile strength and enables easy and cost saving aerial installations.
Characteristics:

1. Low attenuation, low dispersion
2. Outstanding mechanical and environmental performance due to proper design, accurate excess length and cabling process
3. Stranded steel tape armor ensures better moisture resistance and side pressure resistance
4. Compact construction, light weight, suitable for self-supporting.

Standards:

Comply with Standard YD/T 1155-2001 as well as IEC60794-1.

Tempeature:

Operating /Storage:-20°c +70°c

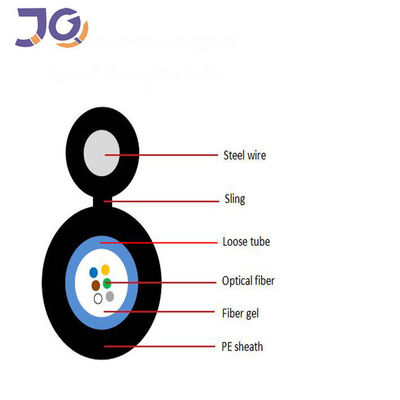

Cable Dimensions and Constructions

Items
Descriptions

Fiber
Fiber type
G.652D
Fiber count
2~12
Color
Green/Yellow/White/Blue/Red//Violet/Brown/
Pink/Black/Grey/Orange/Aqua

Loose tube
Material
PBT
Diameter
2- 6cores:2.3 ±0.1mm
8-12 cores: 2.5 ±0.1mm
Water-blocking material
Gel-filled

Strength Member
Material
Aramid yarn/ Glass Yarn
Material
Water-blocking aramid yarn
Messenger Wire
Material
Phosphatizing/Galvanized Steel wire
Diameter
1.2mm/1.0MM/1.3MM


Outer jacket
Material
PE
Color
Black
Thickness
2-12 cores: 0.8 ±0.2mm
Diameter
1-12cores:7.2±0.3mm×17.8mm±0.3mm
GYXTC8Y Self-Supporting Fiber Optic Cable Price Per KM Fiber Optic Cable ManufacturersGYXTC8Y Outdoor Fiber Optical PE Jacket 0
