OEM 144 Core Outdoor Duct GYFTY Aerial Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 1kilometer | Packaging Details : | Wooden Drum |
|---|---|---|---|
| Delivery Time : | 3-5days | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 8000 kilometers per month |
| Place of Origin: | Guangdong,China | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | CE/ISO9001 | Model Number: | GYTA53 |
|
Detail Information |
|||
| Place Of Origin:: | Guangzhou,China | Fiber Count: | 2-288cores |
|---|---|---|---|
| Material Of Jacket: | PE | Application: | Direct Buried |
| Fiber Brand: | YOFC | Structure: | Loose Tube Stranded |
| Strength Member: | Steel | Product Type: | Fiber Optic Cable |
| Cable Color: | Black | Fiber Mode: | Single Mode |
| High Light: | moisture - resistant Singlemode Fiber Optic Cable,Gyta53 Singlemode Fiber Optic Cable,Fiber Optic Cable Gyxtc8S |
||
Product Description

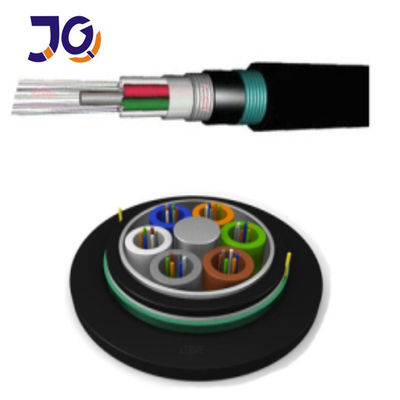

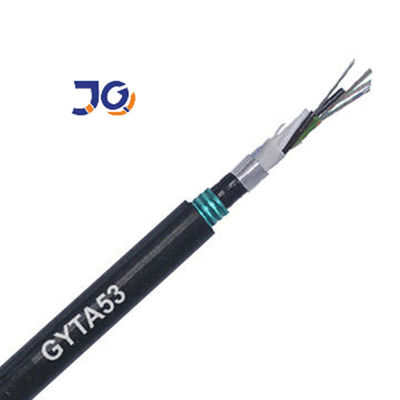

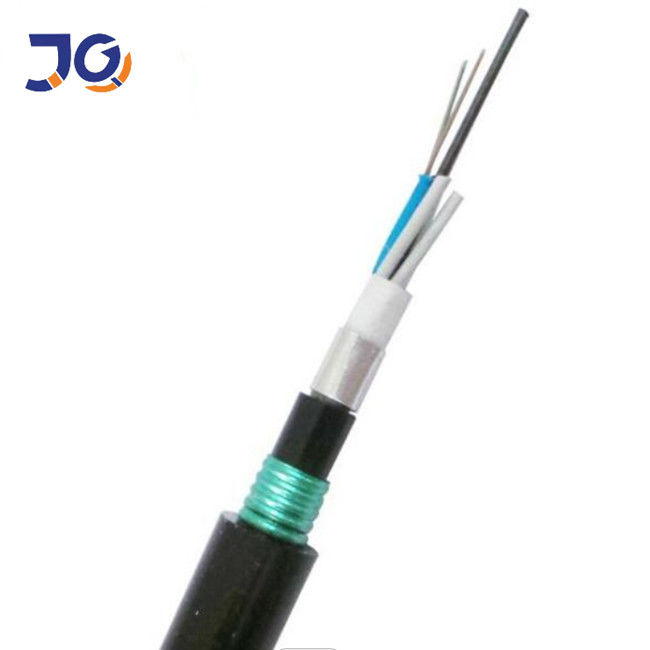

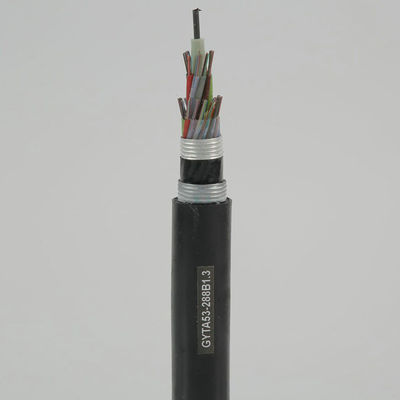

Hot Sale Singlemode Fiber Optic Cable fibra optica Gyta53 communication cable

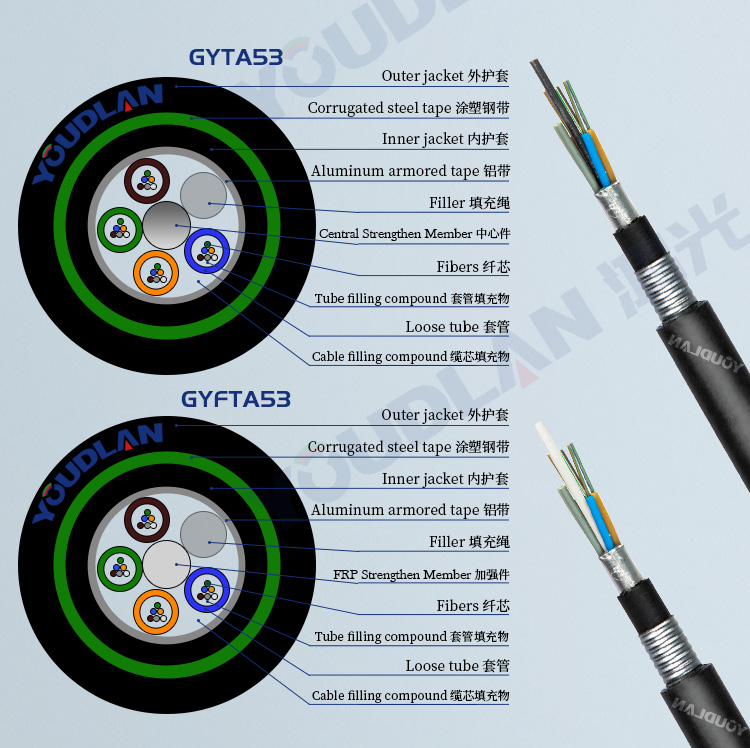

Dimensions of Cable Constructions
|
Fiber count |
Structure |
Fibers per tube |
Loose tube diameter (mm) |
CSM diameter/pad diameter (mm) |
Nominal Thickness of outer jacket (mm) |
Cable diameter/ Height (mm) |
Cable weight (kg/km) |
| 4 | 1+5 | 4 | 1.8±0.1 | 1.4/1.4 | 1.6 | 11.5±0.2 | 140 |
| 6 | 1+5 | 6 | 1.85±0.1 | 1.4/1.4 | 1.6 | 11.5±0.2 | 140 |
| 8 | 1+5 | 8 | 1.9±0.1 | 1.4/1.4 | 1.6 | 11.5±0.2 | 140 |
| 12 | 1+5 | 6 | 1.85±0.1 | 1.4/1.4 | 1.6 | 11.5±0.2 | 140 |
| 24 | 1+5 | 6 | 1.85±0.1 | 1.4/1.4 | 1.6 | 11.5±0.2 | 140 |
| 36 | 1+5 | 12 | 1.9±0.1 | 1.6/1.6 | 1.6 | 11.5±0.2 | 140 |
| 48 | 1+5 | 12 | 1.95±0.1 | 1.6/1.6 | 1.6 | 12.2±0.2 | 145 |
| 60 | 1+5 | 12 | 1.95±0.1 | 1.6/1.6 | 1.6 | 12.2±0.2 | 150 |
| 72 | 1+6 | 12 | 1.95±0.1 | 2.0/2.0 | 1.6 | 12.2±0.2 | 160 |
| 96 | 1+8 | 12 | 1.95±0.1 | 1.4/3.2 | 1.6 | 13.8±0.2 | 180 |
| 144 | 1+12 | 12 | 1.95±0.1 | 2.0/5.7 | 1.6 | 16.7±0.3 | 245 |
Feature
Loose tube gel-filled construction for superiorfiber protection.
Double jacket single armored(GYTA53) and Double jacket double armored
(GYTA53) for rodent pr.otection and direct burial.
UV and moisture-resistant design
Applications
Directburied, Duct Underground conduits.

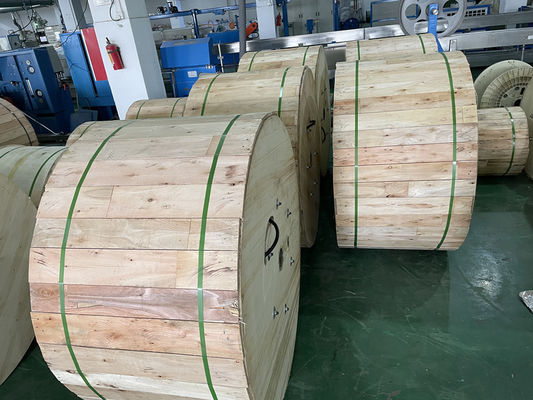

Packing
Iron-wooden drum or fumugated wooden drum,normal wooden drum
Drum size can be designed,details will calculation for suitable for containers
FAQ
1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production for fiber optic cable. Our factory is in Guangzhou city,welcome to visit us!
2.About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.
3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .
5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
