Product Description
GYXTW Armored Single Mode Outdoor Fiber Optic Cable 2 4 6 8 12 Core
Outdoor GYXTW 4B1 Armored Optical Fiber Cable

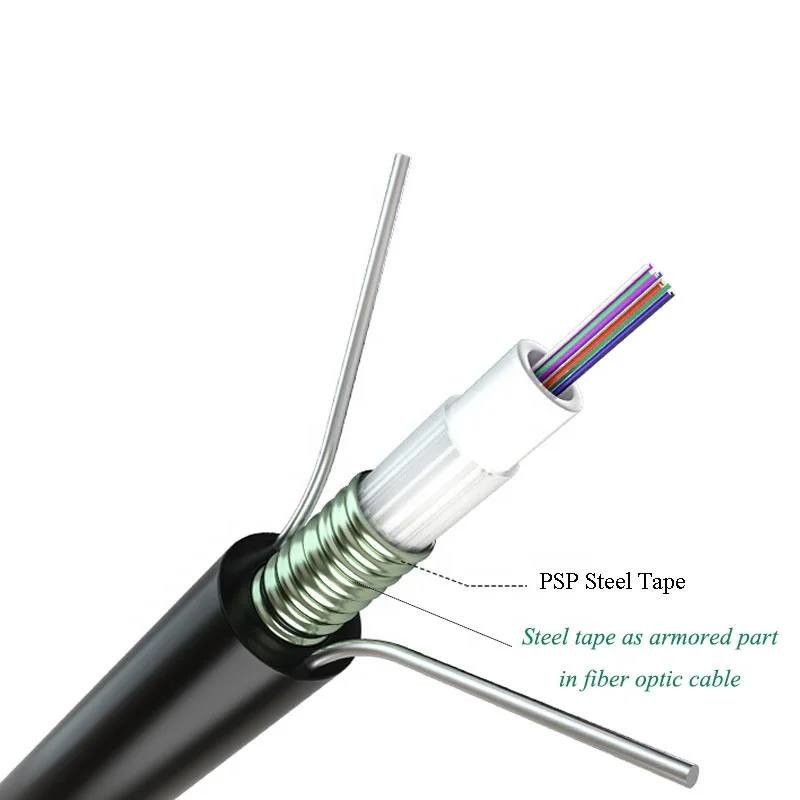

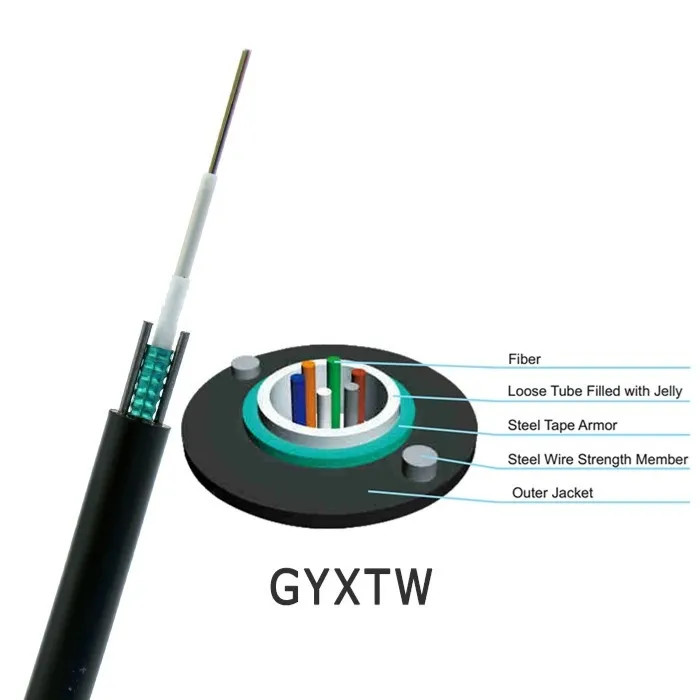

GYXTW fiber cables adopt single-mode or multi-mode fibers housed in a loose tube made of high-strength plastic, filled with a water-resistant gel. A PSP layer is wrapped longitudinally around the tube, while water-blocking materials fill the gaps to ensure compact structure and reliable water resistance. Two parallel steel wires reinforce the cable core, and the entire structure is protected by a PE outer sheath.
Technical Parameters
| Part NO:Increased by 2 fiber |
Fiber Count |
Tubes |
Fillers |
Cable OD(mm) |
Cable Weight(kg/km) |
Tensile Strength Long/Shot Term(N) |
Crush Resistance Long/Short Term(N) |
| GYXTM-2~12 |
2~12 |
1 |
0 |
7.6 |
87 |
600/1500 |
300/1000 |
| GYXTM-14~24 |
14~24 |
1 |
0 |
8.5 |
120 |
600/1500 |
300/1000 |
| GYXTM-2~12 |
2~12 |
1 |
0 |
8.8 |
116 |
600/1500 |
300/1000 |
| GYXTM-14~24 |
14~24 |
1 |
0 |
9.6 |
134 |
600/1500 |
300/1000 |
Storage/Operating Temperature:-40℃ to +70℃
Bend Radius (Static/Dynamic):10D/20D
Optical Characteristics
| |
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
|
Attenuation
(+20°C)
|
@850nm |
|
|
≤3.0 dB/km |
≤3.0 dB/km |
|
|
| @1300nm |
|
|
≤1.0 dB/km |
≤1.0 dB/km |
|
|
| @1310nm |
≤0.36 dB/km |
≤0.40 dB/km |
|
|
|
|
| @1550nm |
≤0.22 dB/km |
≤0.23dB/km |
|
|
|
|
| Bandwidth (Class A) |
@850nm |
|
|
≥500 MHz·km |
≥200 MHz·km |
|
|
| @1300nm |
|
|
≥1000 MHz·km |
≥600 MHz·km |
|
|
| Numerical Aperture |
|
|
0.200±0.015NA |
0.275±0.015NA |
|
|
| Cable Cut-off Wavelength λcc |
≤1260nm |
≤1480nm |
|
|
Feature
-
Excellent mechanical strength and temperature stability
-
Hydrolysis-resistant high-strength loose tube
-
Special filling compound for reliable fiber protection
-
Strong crush resistance with good flexibility
-
Multiple measures for water-blocking:
-
Loose tube filling gel and full core filling
-
PSP/PAP layer for moisture protection
-
Central strength provided by steel wire
Standard Fiber Colour Identification
NOTE:
a. Fiber colors in the loose tube are arranged sequentially from No.1.
b. Other color options available upon request.
Tube Full Colour Identification
NOTE:
a. Tube colors in the cable are arranged sequentially from No.1.
Application Scope:
♥ Designed for outdoor cable distribution
♥ Suitable for aerial and duct installations
♥ Applicable for long-haul and local area networks
Fiber Optic Cable Price per Meter
Features:

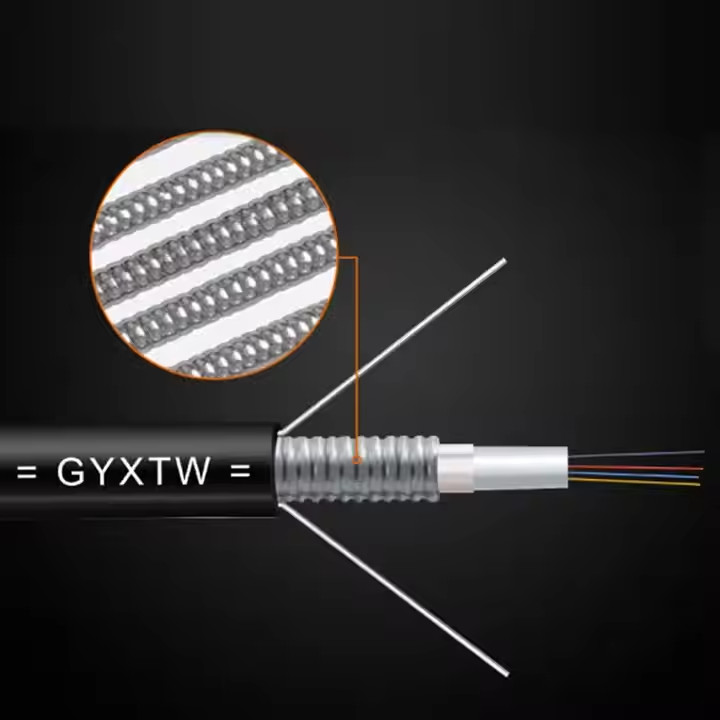

♥ Corrugated Steel Armor – Provides extra mechanical protection
♥ Two Parallel Steel Wires – Enhance tensile strength
♥ Medium Density PE Jacket – Ensures smooth installation and environmental protection
♥ Sheath Markings – Enable clear identification and length verification (custom printing and optical stripe available)
♥ Cable Water-Blocking – PSP layer and loose tube filling compound for moisture resistance
COMPANY PROFILE
Guangzhou Jiqian Fiber Optical Cable Co., Ltd., located in Xintang Town, Guangzhou, Guangdong Province, is a high-tech joint-stock enterprise integrating R&D, production, and sales. We specialize in manufacturing fiber optic cables ranging from 2 to 288 cores, serving global communication needs.
FAQ:
1. Are you a manufacturer?
Yes, we are a factory based in Guangzhou, China. You are welcome to visit us anytime.
2. What is your minimum order quantity?
Our MOQ is 1km. Trial orders are accepted to support new projects.
3. Can I request a sample?
Yes, we provide free samples; customers only need to cover the courier cost.
4. What payment methods do you accept?
We accept L/C, T/T, Western Union, and PayPal.
5. How long is the delivery time?
Normally 3–7 working days, depending on the order quantity.
6. Do you offer customized products and logos?
Yes, we provide OEM & ODM services. Please contact us for details.
