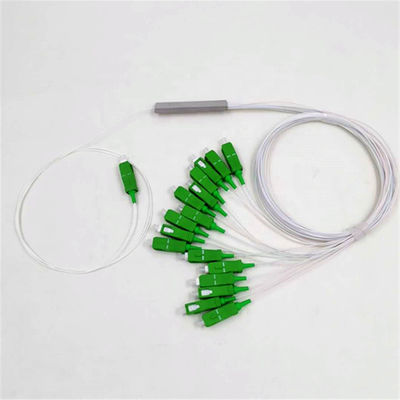

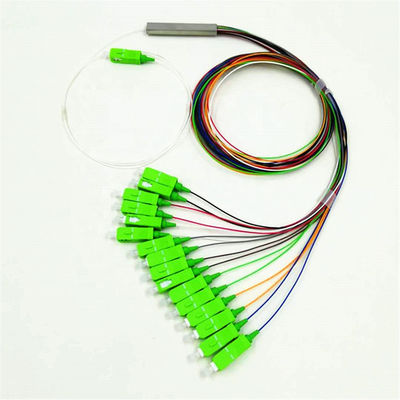

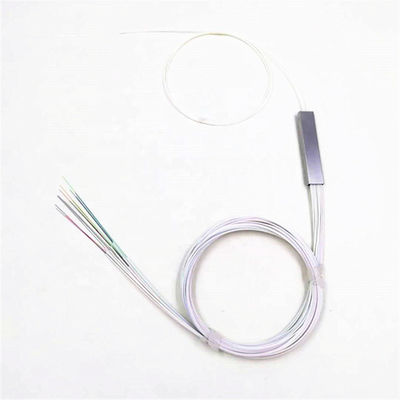

FCC FTTH FTTB FTTX 16 Way Fiber Optic PLC Splitter

1 piece
MOQ
FCC FTTH FTTB FTTX 16 Way Fiber Optic PLC Splitter
Features Gallery Product Description Request A Quote
Features
Specifications
Material: PVC ABS
Connector Type: SC FC ST LC UPC
Type: 1*2/1*4/1*8/1*16/1*32/1*64
Application: FTTH FTTB FTTX Network
Highlight:

FCC FTTB Fiber Optic PLC Splitter

,

FCC FTTX Fiber Optic PLC Splitter

,

FTTX 16 Way Fiber Optic PLC Splitter
Basic Infomation
Place of Origin: China
Brand Name: Jiqian
Certification: ISO9001 ROHS CE-EMC FCC SDOC
Model Number: Splitter Terminal Box 16 Way
Payment & Shipping Terms
Packaging Details: Inside plastic case,outside with cartion
Delivery Time: 3-5 days,it depends on order quantity
Payment Terms: L/C, T/T, Western Union,Alipay
Supply Ability: 2000 pieces per month
Product Description

Product Features:

1.Good uniformity and low insertion loss

2.Low Polarization Dependent Loss

3.Excellent Environmental Stability

4.Excellent Mechanical

5.Stability Telcordia GR-1221 and GR-1209



Application:

1.Fiber to The Home (FTTH)

2.Passive optical networks (PON)

3.Local Area Networks (LAN)

4.Cable Television (CATV)

5.Test Equipment



Specification:

Parameter Specification
Operating Wavelength (nm) 1260 ~ 1650
Type 1x2 1x4 1x8 1x16 1x32 1x64 2x4 2x8 2x16
Insertion Loss (dB) Max. ≤4.2 ≤7.5 ≤10.6 ≤13.7 ≤17.2 ≤21 ≤7.8 ≤10.8 ≤13.9
Uniformity (dB) Max ≤0.6 ≤0.8 ≤1.0 ≤1.5 ≤2.0 ≤2.5 ≤1.0 ≤1.5 ≤2.0
PDL(dB)Max <0.2 <0.2 <0.2 <0.3 <0.3 <0.4 <0.3 <0.3 <0.4
Directivity (dB) Min 55
Return Loss (dB) Min 55(50)
Operating Temperature (°C) -45~ +85
Storage Temperature (°C) -5~ +75
Fiber length 1m or custom length
Fiber Type Corning G656A1 or Fiberhome G657A1
Connector Type Custom specified



Power Handling (mW)

 300
