FTTH SC APC Connector 1x2 1x8 Fiber Optic PLC Splitter

1 piece
MOQ
FTTH SC APC Connector 1x2 1x8 Fiber Optic PLC Splitter
Features Gallery Product Description Request A Quote
Features
Specifications
Polishing: PC/UPC/APC
Channel No: 1*2 1*4 1X8 1X16 1X32
Application: FTTH FTTB FTTX Network
Type: PLC Splitter
Operation Wavelength: 1260~1650nm
Highlight:

FTTH 1x8 Fiber Optic PLC Splitter

,

FTTH 1x2 Fiber Optic PLC Splitter

,

SC APC 1x8 plc splitter
Basic Infomation
Place of Origin: China
Brand Name: Jiqian
Certification: ISO9001 ROHS CE-EMC FCC SDOC
Model Number: 1x2 1x8 Mini PLC Optical Fiber Splitter 2 Way
Payment & Shipping Terms
Packaging Details: Inside plastic case,outside with cartion
Delivery Time: 3-5 days,it depends on order quantity
Payment Terms: L/C, T/T, Western Union,Alipay
Supply Ability: 2000 pieces per month
Product Description

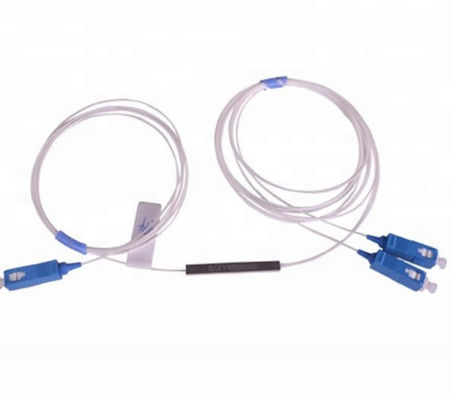

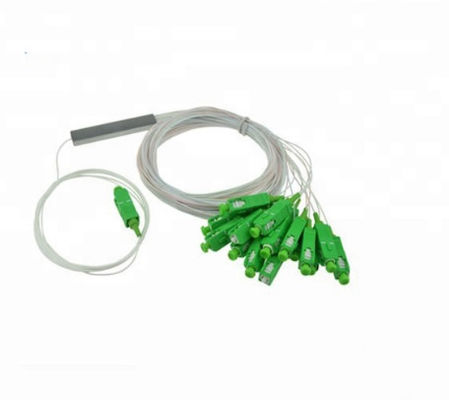

High quality SC APC connector 1x2 1x8 mini PLC optical fiber splitter 2 way PLC
FTTH SC APC Connector 1x2 1x8 Fiber Optic PLC Splitter 0

Key Features:

1. Low Insertion loss

2.Low PDL

3. High Return Loss

4. Uniform Power Splitting

5. Compact Design

6. Wide Operating Wavelength

7. Wide Operating Temperature

8.Excellent Environmental & Mechanical Stability

9. Qualified Under Telcordia GR-1221 and GR-1209



Type & Parameter
Parameter
Unit
Specification
Operation Wavelength
nm
1260~1650
Channel Number

1✖2
1✖4
1✖8
1✖16
1✖32
1✖64
Insertion Loss(Max.)
dB
4.2
7.3
10.5
13.5
17.2
21.5
Uniformity(Max.)
dB
0.5
0.8
1
1.4
1.6
2
Polarization Dependent Loss
dB
0.2
0.3
0.3
0.3
0.3
0.5
Return Loss
dB
≥50
Directivity
dB
≥50
