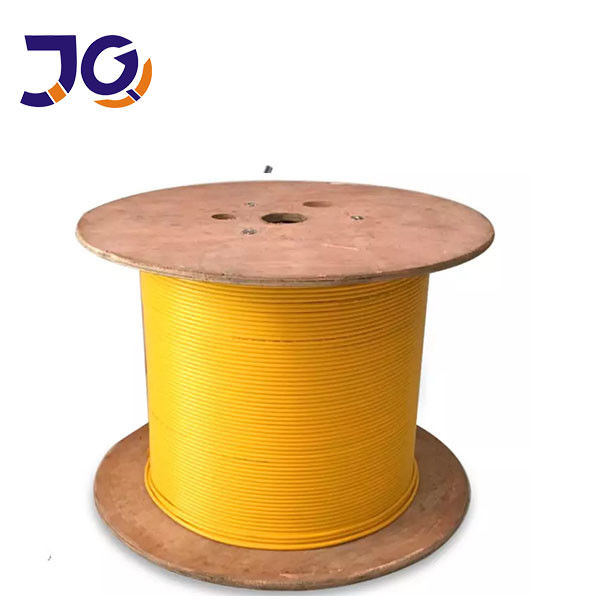

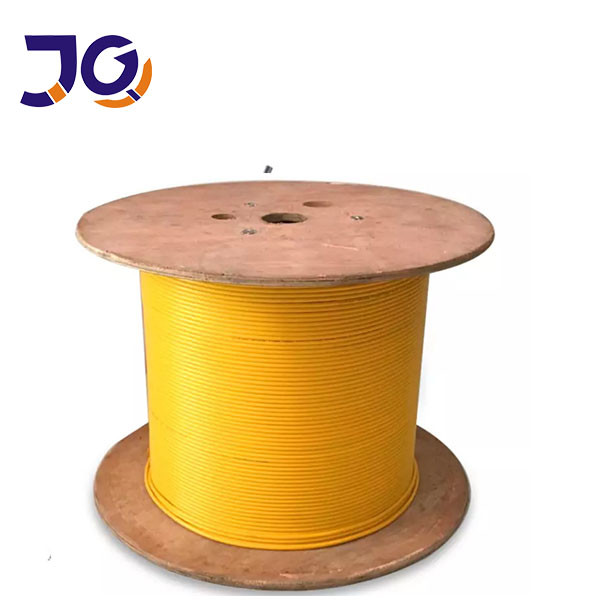

GJFJV Ftth Fiber Optic Cable

Payment & Shipping Terms:
Minimum Order Quantity: 2km
Packaging Details: Wooden drum
Delivery Time: 3-5 days,it depends on order quantity
Payment Terms: L/C, T/T, Western Union,Alipay
Supply Ability: 4500 per month

Detail Information

Place Of Origin: Guangzhou,China Brand Name: Jiqian
Certification: ISO9001 ROHS CE-EMC FCC SDOC Model Number: GJFJV
Number Of Fiber: 24 Sheath: LSZH/PVC
MOQ: 2KM Application: Telecommunication
Port: Guangzhou/Shenzhen Manufacturer: Yes
High Light:

GJFJV ftth fiber optic cable

,

GJFJV ftth optical fiber cable

,

GJFJV indoor optical fiber cable

Product Description

Ftth GJFJV Tight Buffer Single Mode 24 Core G652D Fibre Optical Cable

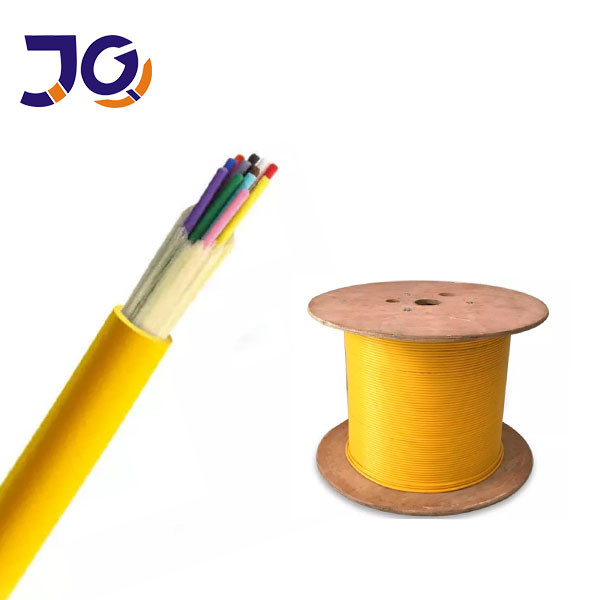

GJFJV indoor fiber optic cable is made by evenly applying strands of Aramid yarns as the strength member over 900μm or 600μm tight buffer fibers, then completed with PVC(LSZH)jacket.



GJFJV Ftth Fiber Optic Cable 0

Features

1.Good uniformity of the outer diameter of tight buffer fiber and excellent strippability.

2.Good performance of flame-retardant

3.Steady performance both in extremely high and low temperature.

4.Excellent geometrical dimension of the fiber.



Technical Parameters
Cable
Count
Outside
Diameter

Tight

buffer
Diameter

Weight Minimum
allowable Tensile
Strength
(N)
minimum allowable
Crush Load
(N/100mm)
Minimum Bending
Radius
(MM)
Storage
temperature
(MM) (MM) (KG) short term long term short term long term short term long term (℃)
2 3 0.9 15 600 200 1000 200 20D 10D -40+60
4 5 0.9 22 600 200 1000 200 20D 10D -40+60
6 5 0.9 23 600 200 1000 200 20D 10D -40+60
8 5.5 0.9 28 600 200 1000 200 20D 10D -40+60
12 6 0.9 38 600 200 1000 200 20D 10D -40+60
16 7.2 0.9 42 600 200 1000 200 20D 10D -40+60
24 8.3 0.9 58 600 200 1000 200 20D 10D -40+60
48 10 0.9 96 600 200 1000 200 20D 10D -40+60






FAQ



1,Q:Are you a factory or trade company?
A:We are a factory


2,Q:What is the MOQ?

A:The MOQ of Fiber Optic cable is 2km.



3.Q:Which brand of fiber do you use?

A:YOFC,Fiberhome,etc



4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.


5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.



6.Can you supply customized products and logo?

A:Yes. We supply OEM service.



7.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
