12 Conductors Underground Outdoor Fiber Optic Cable GYTA

Product Details:
Place of Origin: CHINA
Brand Name: jiqian
Certification: ISO
Model Number: GYTA
Payment & Shipping Terms:
Minimum Order Quantity: 1000m

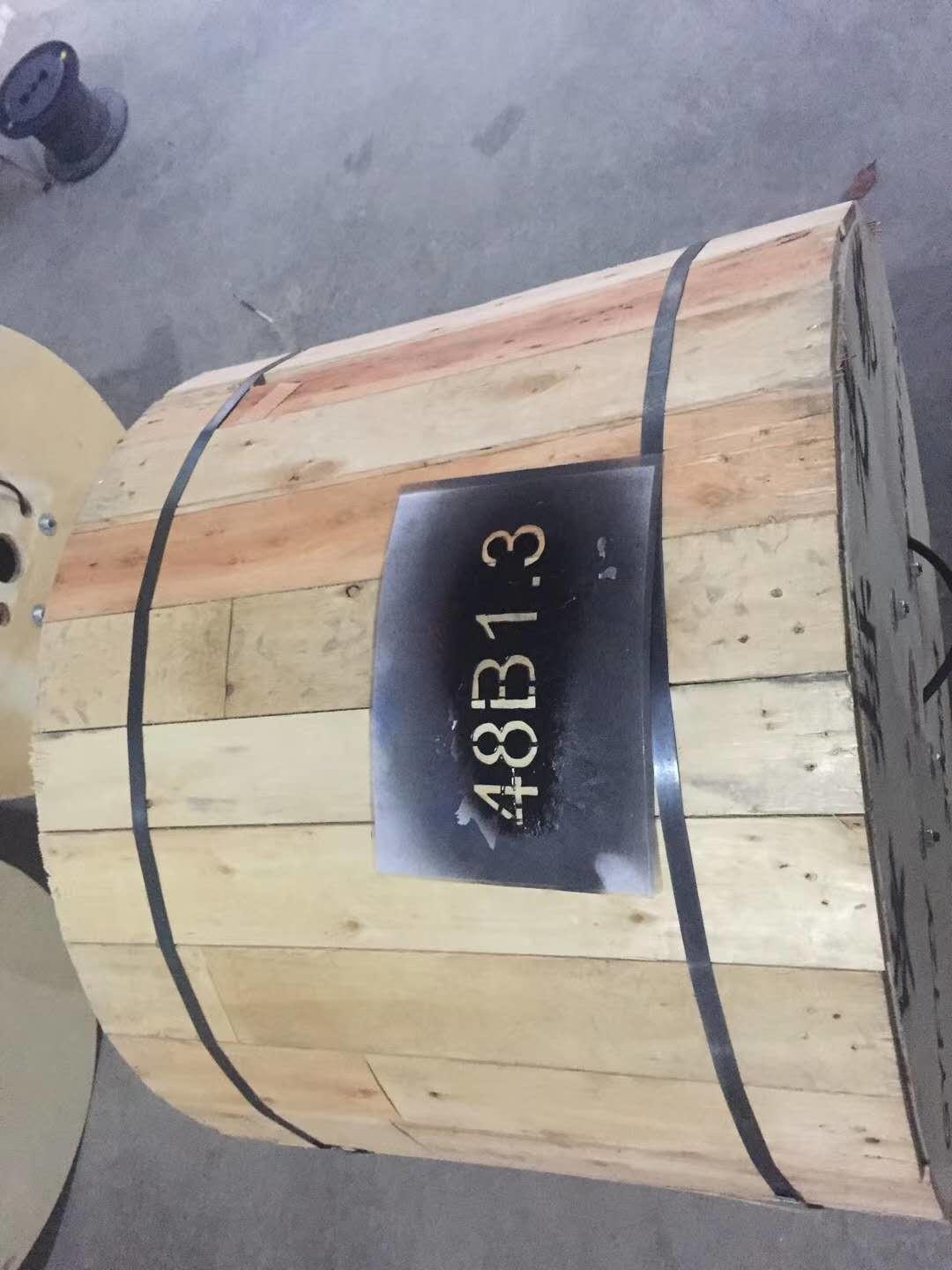

Packaging Details: wooden drum
Delivery Time: 2-4day
Payment Terms: Western Union, MoneyGram, T/T, L/C
Supply Ability: 100km per 2 day

Detail Information

Fiber Type: G657A1/A2/G652D/G657A1/G657A2 Oem: Available
Application: Aerial/duct Number Of Conductors: 4 6 8 12
Structure: Stranded Loose Tube Operating Temperature: -40 ~ +60 C
Central Strength Member: Aluminium Wires
High Light:

Underground Outdoor Fiber Optic Cable

,

GYTA Outdoor Fiber Optic Cable

,

Aerial Outdoor Fiber Optic Cable

Product Description

outdoor underground G652D single mode armoured Fibre optic cable GYTA

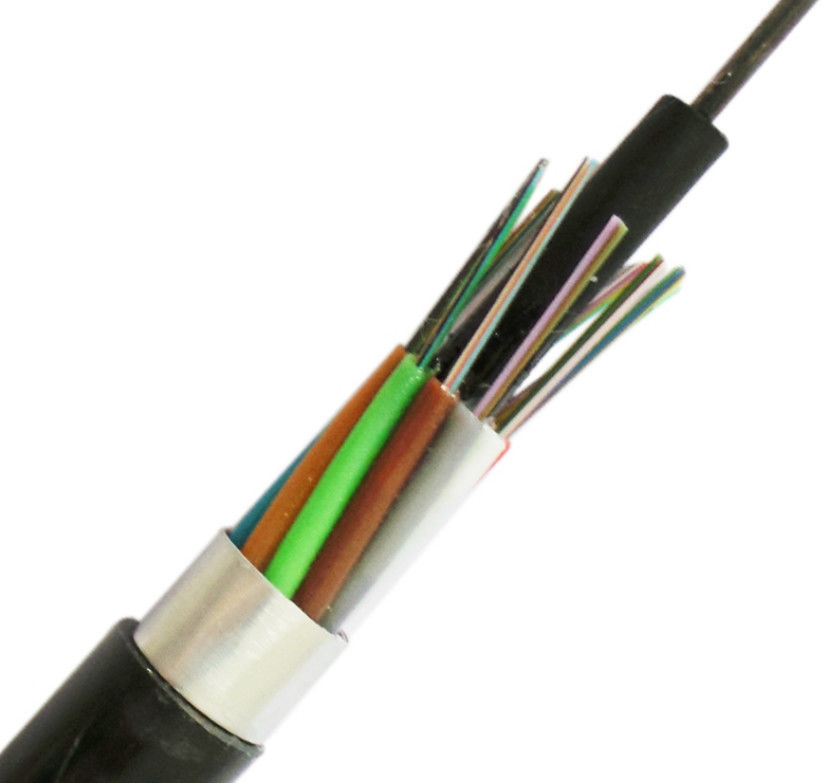

GYTA The optical fiber is 250µm, the loose tube is made of high modulus plastic, which is filled with waterproof compound. The center of the cable core is a metal reinforced core, Tubes (and fillers) are stranded around the strength member into a compact and round cable core, which is filled with the waterproofing compound to protect it from water ingress. Plastic coated aluminum tape (APL) is longitudinally wrapped and extruded into a polyethylene sheath to form a cable

12  Conductors Underground Outdoor Fiber Optic Cable GYTA 0



Characteristics:

3. The PE sheath has good resistance to ultraviolet radiation and environmental stress cracking resistance.

4. Use the following measures to ensure the waterproof performance of the optical cable:

a) Single steel wire center reinforcement;

b) Fill the loose tube with special fiber paste;

c) 100% cable core filling;

d) GYTA double-sided plastic coated aluminum tape (APL) improves the moisture resistance of optical cables;

e) Good water-blocking material prevents longitudinal water seepage of the optical cable.

12  Conductors Underground Outdoor Fiber Optic Cable GYTA 1





Optical Characteristics

G.652
G.655
50/125μm
62.5/125μm
Attenuation
(+20℃)
'@850nm

≤3.0 dB/km
≤3.0 dB/km
'@1300nm

≤1.0 dB/km
≤1.0 dB/km
'@1310nm
≤0.36 dB/km
≤0.40 dB/km

'@1550nm
≤0.22 dB/km
≤0.23 dB/km

Bandwidth
(Class A)
'@850nm

≥500 MHz·km
≥200 MHz·km
'@1300nm

≥1000 MHz·km
≥600 MHz·km
Numerical Aperture

0.200±0.015NA
0.275±0.015NA
Cable Cut-off Wavelength λcc
≤1260nm
≤1480nm






Tensile Strength Long Term (N) 1000
Short Term (N) 3000
Crush Resistance Long Term (N) 1000
Short Term (N) 3000
Bending Radius Static (mm) 10D
Dynamic (mm) 20D







Fiber Count



Dia
(mm)



Weight
(kg/km)

Allowable Tensile Strength(N)

Allowable Crush Resistance
(N/100mm)

Short Term

Long Term

Short Term

Long Term

2-30

9.5

86









≥1500










≥600









≥1000










≥300


32-60

10.2

99
62-72
10.9
123
74-84
12.2
148
86-96
12.2
148
98-120
14.0
183
122-144
14.5
220
146-216
16.1
229
218-300
18.5
290



12  Conductors Underground Outdoor Fiber Optic Cable GYTA 2




FAQ:

12  Conductors Underground Outdoor Fiber Optic Cable GYTA 3
1. Are you the real manufacturer?

Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?

1KM. We support new project of our customers, trial order is available

3.Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.

5.Delivery time?

Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?

Yes, we supply OEM&ODM service, pls feel free to contact.
