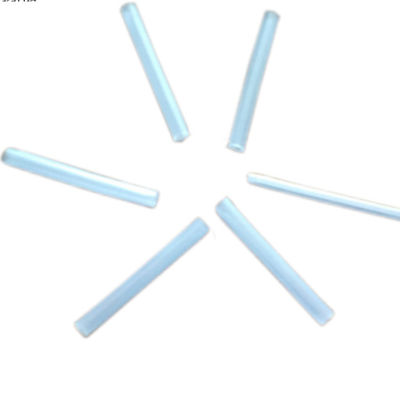

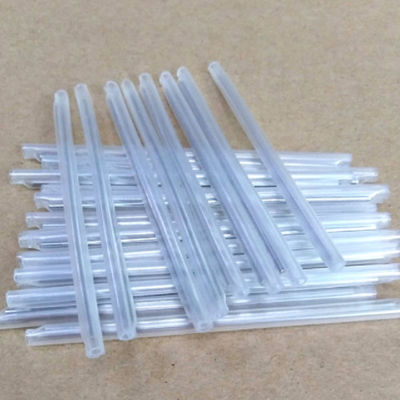

2.The material of protection tube is PE, and EVA is optional to make the tube soft. The dual port of the tube are hot melted for fixing the steel rod. Its length is 60 mm.

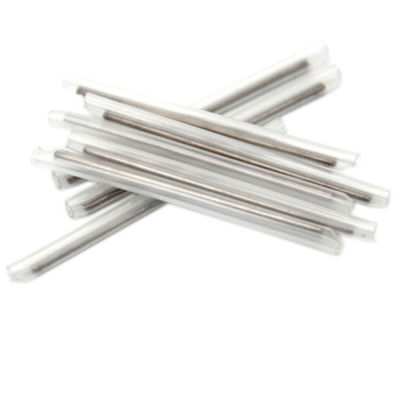

3.The material of steel rod is 304# steel. The dual port of the rod are polished to be smooth in case scratching the tube during inserting. Its diameter is 1.0 mm or 1.2 mm.
Product Features:
1. Sleeves shrink tightly to exclude air and hold the rod firmly, preventing abrasion of delicate glass fibers
2. Does not affect the optical conductivity of the fiber.
3. Protect the connection point and increase the mechanical strength.
4. Simple operation, reducing the risk of damage to the fiber during installation.
5. Transparent casing makes it easy to see the fiber connection status.
6. The sealing structure makes the connection have good temperature and humidity resistance.
2. Does not affect the optical conductivity of the fiber.
3. Protect the connection point and increase the mechanical strength.
4. Simple operation, reducing the risk of damage to the fiber during installation.
5. Transparent casing makes it easy to see the fiber connection status.
6. The sealing structure makes the connection have good temperature and humidity resistance.
Installation diagram
1. Drop cable through heat shrinkable tube
2 Peel off the fiber sheath and bare fiber
3. Use a cutting knife to cut the fiber
4. Fusion splicing fiber
5. Heating processing
6. Processing is complete
