Underground Fiber Optic Cable GYTA33 24 32 36 48 72 96 144 Cores G652D SM Submersible Underwater Cable For Direct Buried Laying
Contact Person : JQ CABLE
Phone Number : +8618122383351
whatsapp : +8618122383351
| Minimum Order Quantity : | 5km | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 9 days | Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 6800KM Per Month |
| Place of Origin: | China | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | ISO9001/RoHs/CE | Model Number: | GYTA53-48B1.3 |
|
Detail Information |
|||
| Fiber Type: | YOFC,Fiberhome, Corning | Color: | Black Or Orange |
|---|---|---|---|
| Jacket: | PE,HDPE/LSZH/AT | Strength Member: | Steel Wire Or FRP |
| Fiber Count: | 4-144 Cores | Installation: | Direct Buired & Underground |
| Armored: | Steel & Aluminium Tape | Product Name: | GYTA53 Underground Fiber Cable |
| Fiber Type: | Single Mode And Multimode OM3/OM4 | Drum Length: | 2km Or 3km |
| Highlight: | Directly Buried Outdoor Fiber Optic Cable,GYTA53 Outdoor Fiber Optic Cable,Double Armored Fiber Optic Cable |
||
Product Description
Product Description

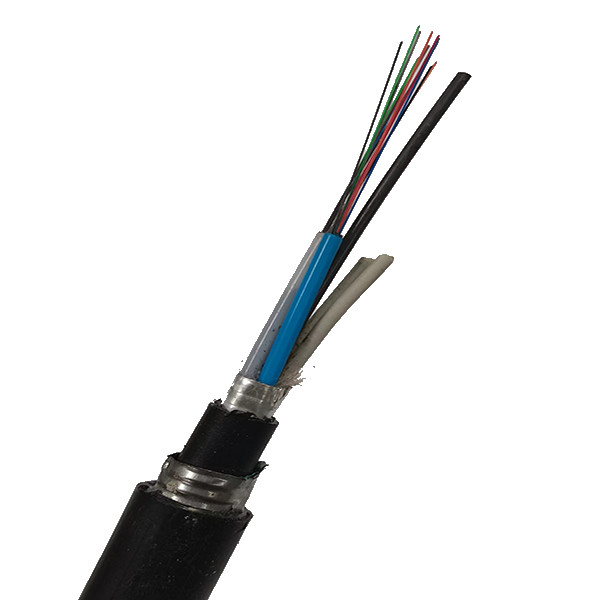

GYTA53 Outdoor Optical Cable is a steel belt armored outdoor direct buried optical cable. The center of the cable core is a metal reinforced core. For some optical cables with a certain number of cores, a layer of polyethylene (PE) needs to be extruded outside the metal reinforced core. The loose tube (and filling rope) is twisted around the central reinforcing core, coated with plastic aluminum strip (APL) longitudinally and extruded with a layer of polyethylene inner sheath, and the double-sided plastic coated steel strip (PSP) is longitudinally wrapped to form a cable with polyethylene sheath.
1. Long distance and Local Area Network (LAN) communication.
2. Suitable for direct buired or pipeline laying method.
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Parameters
| Fiber Count |
Diameter (MI) |
Weight (KG/KMI) |
Min.Bend Radius | Mlin.Tension (N) |
Crush (N/100MMl) |
|||
| Static | Dynamic | Long Term | Short Term | Long Term | Short Term | |||
| 2-24 | 12.0 | 180 |
10 times Diameter
|
20 Times
|
1000 | 3000 | 1000 | 3000 |
| 26-36 | 12.2 | 195 | 1000 | 3000 | 1000 | 3000 | ||
| 38-60 | 12.5 | 205 | 1000 | 3000 | 1000 | 3000 | ||
| 62-72 | 12.8 | 225 | 1000 | 3000 | 1000 | 3000 | ||
| 74-96 | 13.5 | 245 | 1000 | 3000 | 1000 | 3000 | ||
| 98-120 | 14.4 | 275 | 1000 | 3000 | 1000 | 3000 | ||
| 122-144 | 16.5 | 315 | 1000 | 3000 | 1000 | 3000 | ||
Product showes
FAQ
1. Are you factory direct?
as a professional Cable manufacturer, specialized in Fiber Optic Cable, MPO Breakout Cable, Fiber Optic Patch Cord. Our products are mainly exported to Europe, South America, and some other countries and areas.
2. What is your main products?
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS
Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord
3. Product quality guarantee period?
20 years Guarantee for fiber optic cable
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
