Double Jacket G657A1 Gyfty53 Underground Fiber Optic Cable

Minimum Order Quantity : 1000m Packaging Details : wooden drum
Delivery Time : 2-4day Payment Terms : Western Union, MoneyGram, T/T, L/C
Supply Ability : 100km per 2 day
Place of Origin: CHINA Brand Name: jiqian
Certification: ISO Model Number: GYFTY53

Detail Information

Fiber Type: G657A1/A2/G652D/G657A1/G657A2 Oem: Available
Application: Direct Bury Number Of Conductors: 48 96 72 96
Structure: Stranded Loose Tube Operating Temperature: -40 ~ +60 C
Cable Diameter:: 9.6mm
High Light:

Gyfty53 Underground Fiber Optic Cable


G657A1 Underground Fiber Optic Cable


9.6mm Gyfty53 waterproof fiber optic cable

Product Description

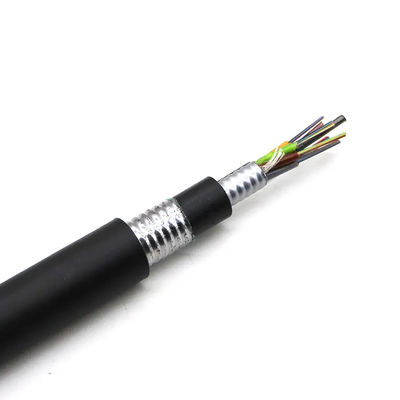

Double Jacket Stranded Armoured Steel Wire Member outdoor Fiber Optic Cable Gyfty53

The Underground Direct Buried Fiber Optic Cable GYFTY53 are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including direct buried. With fiber counts up to 288 and S-Z strand designs.


Double Jacket G657A1 Gyfty53 Underground Fiber Optic Cable 0



1. Direct burial

2. Underground

3. Backbone Internet

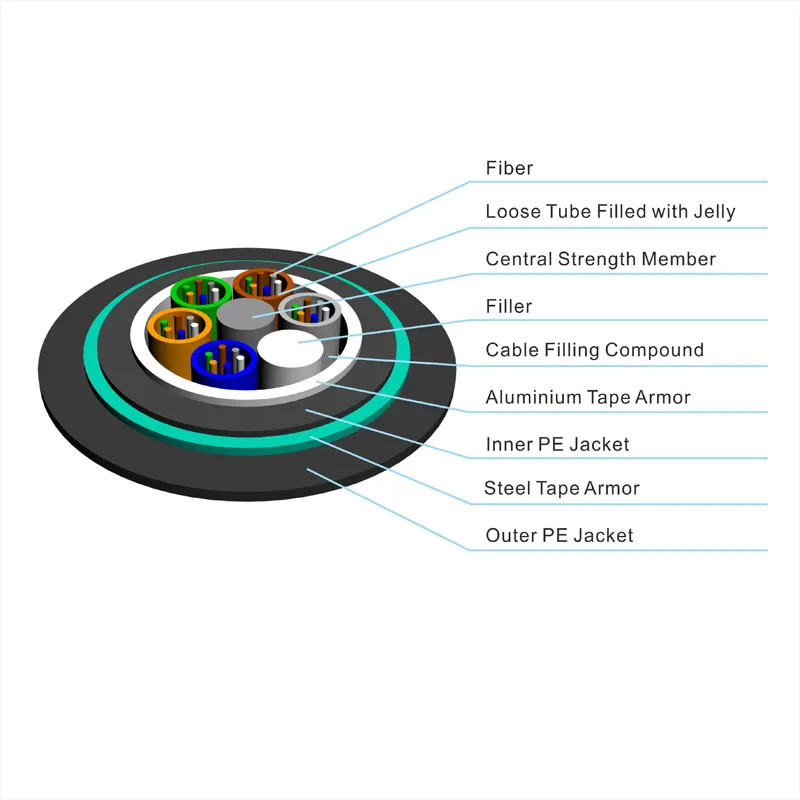

Cable performance:

Item Parameters


Loose tube

Material PBT
Color All colors display
Filler Material PE
Color Black
CSM Material FRP
Inner jacket Material MDPE
Color Black
Outer armoured Material Plastic coated steel strip
Outer jacket Material MDPE
Color Black
Min. bending radius Static 12.5 times cable diameter
Dynamic 25 times cable diameter

Repeating bending


Load:150N;number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage.

Tensile performance Short term 1500N
Crush Short term 3000N/100mm
Torsion Load:150N; number of cycles:10; twist angle:±180° No obvious addition attenuation, no fiber break and no cable damage.


Dimensions of cable constructions:


Fiber count

Structure Fibers per tube

Loose tube diameter


diameter/pad diameter


Thickness of

Inner jacket


Thickness of

outer jacket


Cable diameter


Cable weight


12 1+6 6 1.8 ±0.1 2.2 /2.2 0.9±0.1 1.6±0.1 12.4 ±0.5 138
24 1+6 6 1.8 ±0.1 2.2 /2.2 0.9±0.1 1.6±0.1 12.4 ±0.5 140
48 1+6 12 2.0±0.1 2.3 /2.3 0.9±0.1 1.6±0.1 12.9 ±0.5 152
96 1+8 12 2.0±0.1 2.6/3.5 0.9±0.1 1.6±0.1 14.1 ±0.5 182
144 1+12 12 2.0±0.1 3.0 /6.3 0.9±0.1 1.6±0.1 16.9 ±0.5


Packing details:


Cable type Drum





Inner diameter




Drum type
GYFTY53-12 950 760 400 2 Wooden drum
GYFTY53-24 950 760 400 2 Wooden drum
GYFTY53-48 1000 760 400 2 Wooden drum
GYFTY53-96 1150 760 450 2 Wooden drum
GYFTY53-144 1300 760 500 2 Wooden drum

 Guangzhou jiqian fiber optical cable co., LTD is located in guangzhou city, guangdong province mingying west 2 road industrial zone, xintang town, is a collection of scientific research, development, production, sales for the integration of large-scale specialization of high-tech joint-stock enterprise, specializing in the production of various specifications of 2-288 core cable.


1. Are you the real manufacturer?
Yes, we are factory in guangzhou china, welcome to visit us!
2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is available
3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.
4.What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.
5.Delivery time?
Generally 3-7 working days, also it is according to qty.
6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.Double Jacket G657A1 Gyfty53 Underground Fiber Optic Cable 1
