cable de fibra optica ADSS 24hilo
Contact Person : Lillian
Phone Number : +8618122384553
whatsapp : +8618122384553
Minimum Order Quantity : | 1KM | Price : | 338 |
---|---|---|---|
Packaging Details : | Wooden drum | Delivery Time : | 3-5 days |
Payment Terms : | L/C, T/T,Alipay | Supply Ability : | 4500km per month |
Place of Origin: | China | Brand Name: | Jiqian |
---|---|---|---|
Certification: | ISO 9001 FCC CE RoHS | Model Number: | ADSS-24 |
Detail Information |
|||
Model Number: | ADSS -24B1 | Brand Name: | Jiqian |
---|---|---|---|
OEM: | Available | Fiber Type: | Single Mode |
Strength Yarn: | Kevlar Yarn/Aramid Yarn | Application: | Overhead |
Certification: | ISO 9001 FCC CE RoHS | Packing: | Wooden Drum |
Storage Operating Temperature: | -40 To +70 °C | Manufacturer: | Yes |
Colour: | Black | ||
Highlight: | OEM ADSS Fiber Optic Cable,Overhead ADSS Fiber Optic Cable,Aramid Single mode Fiber Cable |
Product Description
Good Quality Factory Directly Sell 24Core 48Core SM G652D Single-Sheath All-Dielectric ADSS Aerial Fiber Optic Cable

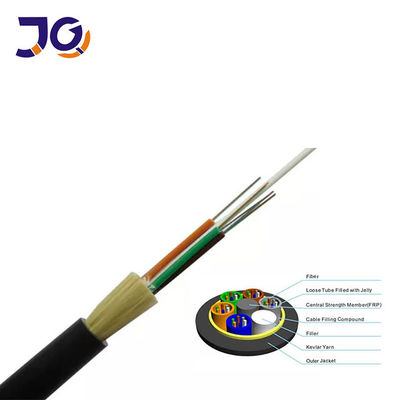

ADSS is one kind of loose tube stranded cable. 250μm's fibers are positioned in the loose tube which is made of high modulus plastics. The tubes are filled with a water-resistant filling compound. And we use the FRP(fiber reinforced plastic) as the central strength member. The loose tube with the fibers and the FRP are stranded together first, and then we use the PE sheath and the aramid yarn to protect the fibers. Because of the structure, ADSS cable have a very excellent performance during the storage, oprating and using.
Fiber G652D parameter:
Item | Unit | Specification | |
Fiber Type | G.652D | ||
Mode field diameter | 1310nm | mm | 9.2±0.4 |
1550nm | mm | 10.4±0.8 | |
Cladding diameter | mm | 125.0±1 | |
Cladding non-circularity | % | ≤1.0 | |
Core/cladding concentricity error | mm | ≤0.5 | |
Coating diameter | mm | 245±5 | |
Coating non-Circularity | % | ≤6.0 | |
Coating/cladding concentricity error | mm | ≤12.0 | |
Cable cut-off wavelength | nm | ≤1260 | |
Attenuation Coefficient | 1310nm | dB/km | ≤0.36 |
1550nm | dB/km | ≤0.22 | |
Proof stress level | kpsi | ≥100 |
Dimensions of Cable Constructions
Fiber count | Structure | Fibers per tube | Loose tube diameter(mm) | CSM central strength member(mm) | Nominal Thickness of outer jacket (mm) | Cable diameter(mm) | Cable net weight (kg/km) |
12 | 1+6 | 6 | 2.0 | 2.0 | 1.8±0.2 | 9.8±0.2 | 80 |
24 | 1+6 | 6 | 2.0 | 2.0 | 1.8±0.2 | 9.8±0.2 | 80 |
48 | 1+6 | 12 | 2.0 | 2.0 | 1.8±0.2 | 10.0±0.2 | 85 |
72 | 1+6 | 12 | 2.0 | 2.0 | 1.8±0.2 | 10.5±0.3 | 88 |
96 | 1+8 | 12 | 2.0 | 2.0/3.4 | 1.8±0.2 | 11.8±0.3 | 123 |
Certification
Company profile:
1.Located in Guangzhou China
FAQ:
Q1.What is your terms of packing?
A: Generally, we pack our goods in drum with pallet for export.2KM/3KM/4KM/5KM of one drum or as per your requirements
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of Trade?
A: EXW, FOB, CFR, CIF
Q4. How about your delivery time?
A: Generally, it will take 5 to 7days after receiving your initial. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you provide OEM or ODM
A: Yes
Q6. What is your sample policy?
A: We provide FREE sample if we have them in stock
Q7. Do you test all your goods before delivery?
A: Yes, all of cables have to be tested before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
