MGXTSV Fiber Optic Cable Fire Retardant Anti-Rodent LSZH Armored Mining Duct Telecommunication

Product Description

anti-rodent flame retardant mining fiber cable MGXTSV

Product Description

1.MGXTSV mining optical cables represent a specialized adaptation of fiber-optic technology tailored for underground mining environments. Designed primarily for coal extraction operations, these cables also serve critical communication functions in metallic/non-metallic ore mines (e.g., gold/iron mines), addressing the unique challenges of subterranean infrastructure



2.

1. These cables integrate baseline fiber-optic transmission capabilities with mandatory safety enhancements for mining applications:

   • ‌Flame-retardant composition‌: Utilizes halogen-free materials meeting IEC 60332-1 vertical flame test standards
   • ‌Rodent-resistant construction‌: Reinforced sheath layers prevent gnawing damage in biodiverse mine shafts
   • ‌Intrinsic safety certification‌: Complies with GB 3836 explosion-proof regulations and MA (Mine Safety) certification requirements.

3.

1. As standardized by China's State Administration of Coal Mine Safety (SACMS), MGXTSV specifications have become the de facto industry benchmark. This regulatory framework mandates uniform adoption across all mineral extraction sectors regardless of ore type, ensuring interoperability and simplified compliance in hybrid mining operations.









Features



▶

1. Features of MGTSV mining optical sables

2. It has good mechanical and temperature properties.

3. Loose casing material itself has goad water resistance and high strength.

4. The tube is filled with special oll paste, which provides key protection to the optical fibre.

5. Good pressure reustance

6. Double-eided plastic-coated steal strip (PSP) imprtines the maisture-reaintant ability of aptical cables and ham the function of anti-mouse

7. Biue flame-retardant PVC is need for mecondary sheathing, so that the oplical cable has a good flame netardant affect.



 Applications:



▶

• Utilize microtubule resources, particularly for backbone networks, access networks, and fiber-to-the-home (FTTH) solutions.

• Cabling costs are affordable, making it ideal for upgrading urban infrastructure and building new networks.

• The MGXTSV cable meets the MT386-1995 standard, testing the flame retardancy of cables used in coal mines.





Optical Characteristics

Items		Unit	Specification
			G652D
Mode Field Diameter	1310nm	um	9.2±0.4
	1550nm	um	10.4±0.5
Cladding Diameter		um	124.8±0.7
Cladding Non-Circularity		%	≤0.7
Core-Cladding Concentricity Error		um	≤0.5
Coating Diameter		um	245±5
Coating Non-Circularity		%	≤6.0
Cladding-Coating Concentricity Error		um	≤12
Cable Cutoff Wavelength		nm	acc≤1260
Attenuation(max.)	1310nm	dB/km	≤0.36
	1550nm	dBkm	≤0.22

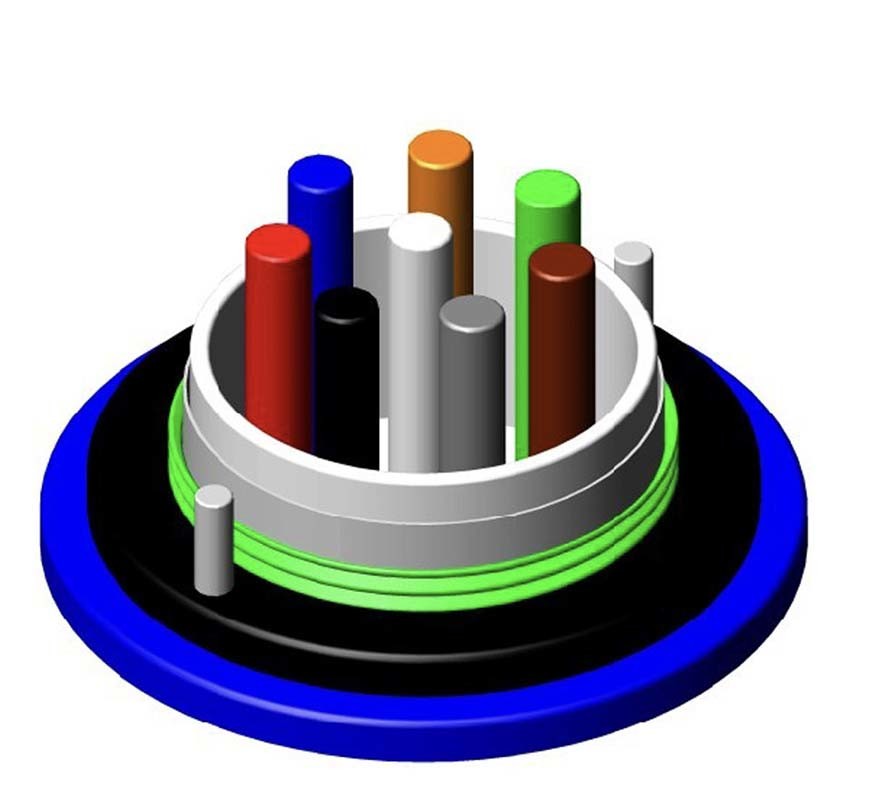

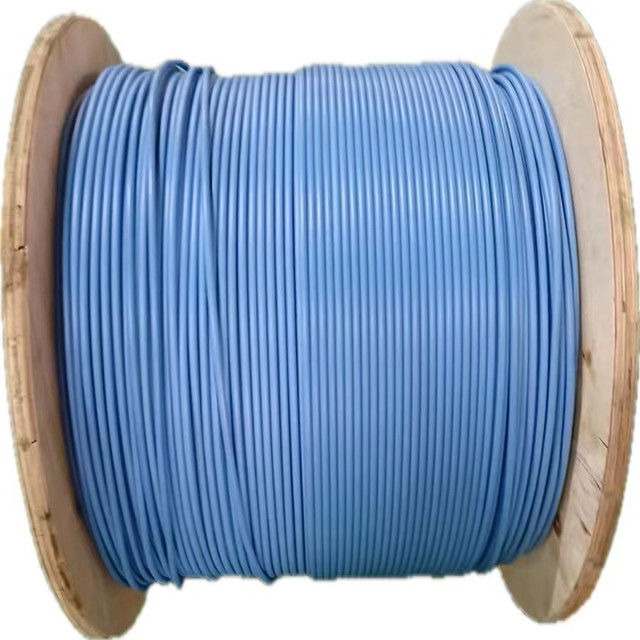

Detail product pictures

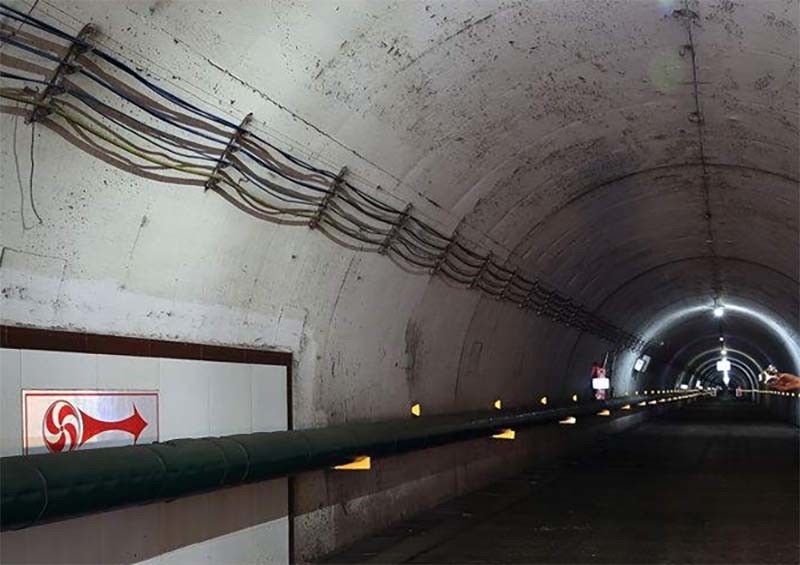

                                                           Mining application













   factory shows
