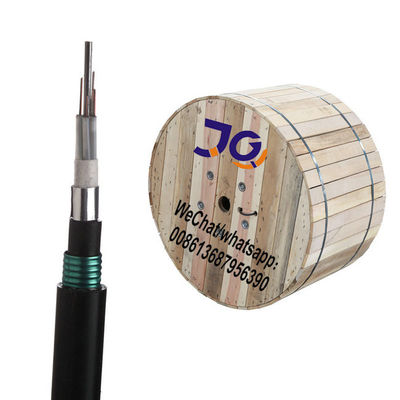

GYTY53 GYFTY53 48 96 Direct Buried Single Armor Double Jacket Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 1km | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 5-8 work days | Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 4500KM Per Month |
| Place of Origin: | Guangzhou,China | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | ISO9001/ ROHS/ CE/ FCC | Model Number: | GYTA53 |
|
Detail Information |
|||
| Fiber Type: | G652D | Color: | Black |
|---|---|---|---|
| Outsheath: | PE | Fiber Count: | 2-288cores |
| Product Name: | Stranded Loose Tube Armored Cable | Length: | 2km Or Customized Length |
| Installation: | Aerial & Duct | Oem: | Available |
| Application: | Telecommunication | Type: | Singlemode &Multimode |
| Name: | DJDA Outdoor Fiber Optic Cable | Jacket: | Black Double Jacket |
| High Light: | Double Armoured Underground Fiber Optic Cable,GYTA53 Underground Fiber Optic Cable,GYTA53 buried fiber optic cable |
||
Product Description
Double Armoured Outdoor Fiber Optic Cable Communication

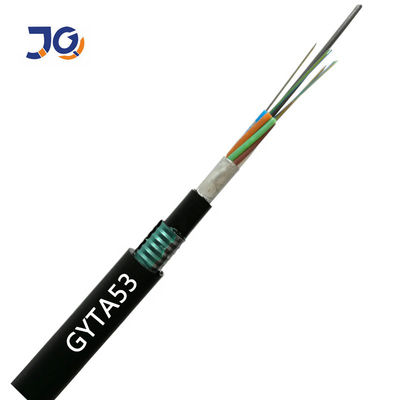

Aluminum Armored Directly Buired Fiber Optic Cable GYTA53
The Underground Direct Buried Fiber Optic Cable GYTA53 are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including direct buried. With fiber counts up to 288 and S-Z strand designs
Features
Has good mechanical properties and temperature characteristics.
Loose tube material itself has good water resistance and high strength.
The tube is filled with a special grease to protect the fiber.
The specially designed compact cable structure effectively prevents the casing from retracting.
PE jacket has excellent UV radiation resistance,ensure the waterproof performance of the cable.
Single wire center reinforcement core.The loose tube is filled with a special waterproof compound.
Full core filling.Plastic coated aluminum tape (APL) moisture barrier
Application
Suitable for directly buired laying method
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Feature:
● Adopting "SZ" bidirectional layer twisting technology
● Filling water-blocking ointment step by step, water-blocking in full section
● The steel (aluminum) belt has reliable bonding with the edge, high strength, and no cracking when twisted
● Stable fiber excess length control
● After the cable is formed, the additional attenuation of the fiber is almost zero, and the dispersion value does not change
● Excellent environmental performance, applicable temperature range is -10 ℃ ~ + 70 ℃
Specification:
| Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Max Fibers per Tube | Max No. of (Tubes+fillers) | Allowable Tensile Load (N) | Allowable Crush Resistance (N/100mm) |
||
| Short Term | Long Term | Short Term | Long Term | |||||
| 2~30 | 13.2 | 162 | 6 | 5 | 3000 | 1000 | 3000 | 1000 |
| 32~48 | 13.8 | 175 | 8 | 6 | 3000 | 1000 | 3000 | 1000 |
| 50~72 | 14.6 | 205 | 12 | 6 | 3000 | 1000 | 3000 | 1000 |
| 74~96 | 16.0 | 230 | 12 | 8 | 3000 | 1000 | 3000 | 1000 |
| 98~144 | 17.6 | 285 | 12 | 12 | 3000 | 1000 | 3000 | 1000 |
| >144 | Available upon customer’s request | |||||||
Note:
1. For flame retardant cable, outer sheath can be made of low-smoke halogen-free (LSZH) material, and the type is GYTZS.
2.Upon customer’s request, cables with longitudinal color strip on outer sheath can be offered. More details, please refer to GYTA series.
3. Special cable structure can be designed and manufactured on customer’s request.
Packing
1/2/3/4km or customized length export wooden drum
