G657D300m Span Self Supporting Aerial Fiber Cable PE Jacketed
G657D300m Span Self Supporting Aerial Fiber Cable PE Jacketed G657D300m Span Self Supporting Aerial Fiber Cable PE Jacketed G657D300m Span Self Supporting Aerial Fiber Cable PE Jacketed G657D300m Span Self Supporting Aerial Fiber Cable PE Jacketed
Contact Now

G657D300m Span Self Supporting Aerial Fiber Cable PE Jacketed

Minimum Order Quantity : 1KM Packaging Details : wooden drum
Delivery Time : 3-5 days, it depends on your quantity Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 60000KM/month
Place of Origin: Guangdong,China Brand Name: Jiqian
Certification: CE/ISO9001 Model Number: ADSS

Detail Information
Fiber Count: 2-144Cores Jacket Material: PE
Jacket Color: Black Lift Time: 25 Years
Factory: Yes Fiber Brand: YOFC
Fiber Type: G652d,G657d Length: 1km/2km/3km/4km
Strength Member: FRP
High Light:

300m all dielectric self supporting cable

,

300m self supporting aerial fiber cable

,

G657d all dielectric self supporting cable

Product Description



Outdoor Double Sheath 8 12 24 48 96 Core 300m Span ADSS Fiber Optic Cable

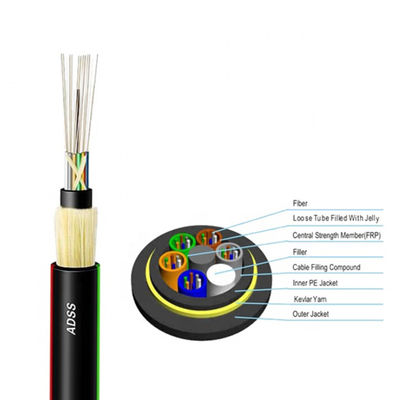

G657D300m Span Self Supporting Aerial Fiber Cable PE Jacketed 0





Double Layer Aerial ADSS Cable is used for communication cable of overhead high-voltage electricity transmission system,

it also can be used as communication cable at the areas where lighting is frequent or distance is big.

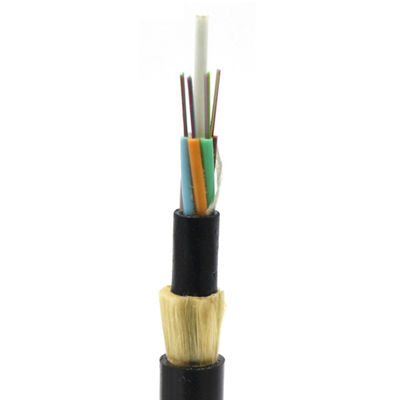

G657D300m Span Self Supporting Aerial Fiber Cable PE Jacketed 1



Feature:
--Can be installed without shutting off the power
---Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
---Large span lengths
---Good performance of tensile strength and temperature
--- Arc-erosion-resistant AT jecket
---The design life span is 30 years

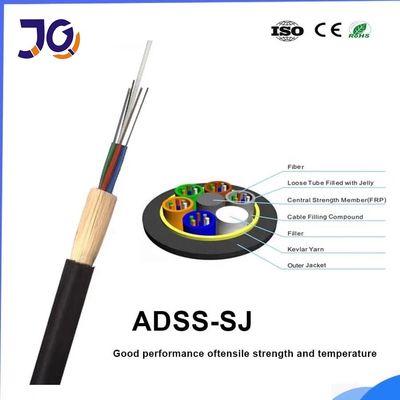

G657D300m Span Self Supporting Aerial Fiber Cable PE Jacketed 2

Fiber parameter

Item Unit Specification
Fiber Type G.652D
Mode field diameter 1310nm mm 9.2±0.4
1550nm mm 10.4±0.8
Cladding diameter mm 125.0±1
Cladding non-circularity % £1.0
Core/cladding concentricity error mm £0.5
Coating diameter mm 245±5
Coating non-Circularity % £6.0
Coating/cladding concentricity error mm £12.0
Cable cut-off wavelength nm £1260
Attenuation Coefficient 1310nm dB/km £0.36
1550nm dB/km £0.22
Proof stress level kpsi ≥100

Note: Other parameters meet standard ITU-T G.652

G657D300m Span Self Supporting Aerial Fiber Cable PE Jacketed 3



Packaging Details
1.Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed;
2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet, then sealed by strong wooden battens.



G657D300m Span Self Supporting Aerial Fiber Cable PE Jacketed 4



Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
G657D300m Span Self Supporting Aerial Fiber Cable PE Jacketed 5
Factory Show
G657D300m Span Self Supporting Aerial Fiber Cable PE Jacketed 6
We still have more. Please feel free to contact me. Whatsapp: +86 18122383351
G657D300m Span Self Supporting Aerial Fiber Cable PE Jacketed 7
