OEM 144 Core Outdoor Duct GYFTY Aerial Fiber Optic Cable
Contact Person : colleen
Phone Number : 8618122384446
whatsapp : +8618122384446
Minimum Order Quantity : | 1km | Packaging Details : | Plywood drum |
---|---|---|---|
Delivery Time : | Normally 5-7 days,it depends on order quantity | Payment Terms : | L/C, T/T, Western Union,Alipay |
Supply Ability : | 6000km per month |
Place of Origin: | China | Brand Name: | Jiqian |
---|---|---|---|
Certification: | ISO9001 ROHS CE FCC | Model Number: | ADSS 72B1 |
Detail Information |
|||
Place Of Origin: | Guangzhou China | Brand Name: | Jiqian |
---|---|---|---|
Number Of Conductors: | ≥ 10 | Strength Member: | Aramid Yarn,FRP |
Storage/operating Temperature:: | -40 To +70 °C | Application: | Aerial |
OEM: | Available | Manufacturer: | Yes |
Cable Type: | All Dielectric | Package: | Plywood Drum |
High Light: | All Dielectric Aerial ADSS Cable,144 Cores Aerial ADSS Cable |
Product Description

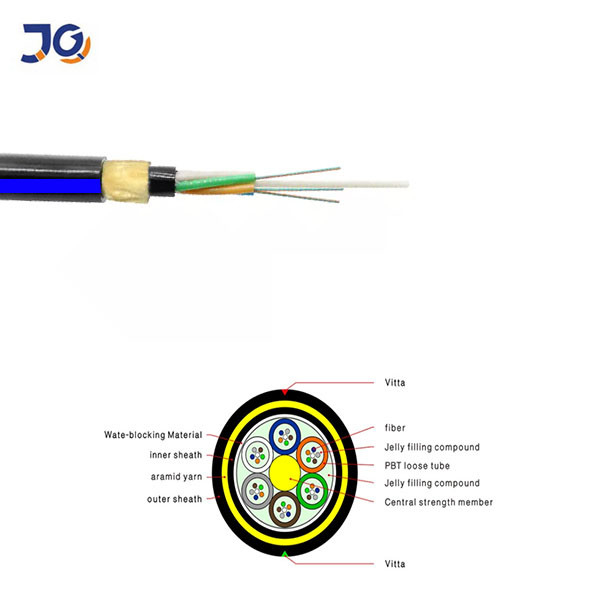

All-Dielectric Aerial ADSS Cable Optic 24 48 72 96 144 Cores Fiber Adss
Cable Performance
Item |
Contents |
Value | |||
6/12/24 | 48 | 72 | 96 | ||
Structure | Type | 1+6 | 1+6 | 1+8 | 1+12 |
Loose tube |
Max Fiber counts/tube | 6 | 12 | 12 | 12 |
Outer diameter (mm) | 1.9±0.1 | 2.2±0.1 | 2.2±0.1 | 2.2±0.1 | |
Central strength member |
Material | FRP | |||
Diameter (mm) | 1.4 | 1.6 | 2.0 | 2.2 | |
PE layer diameter (mm) | -- | -- | 3.5 | ||
Peripheral strength member | Material | FRP | |||
Sheath |
Material | HDPE | |||
Color | Black | ||||
Thickness (mm) | Nominal: 1.8 | ||||
Cable diameter(mm) Approx. | 9.8±0.2 | 10.0±0.2 | 10.5±0.3 | 11.8±0.3 | |
Cable weight(kg/km) Approx. | 85 | 89 | 99 | 124 |
Fiber parameter
Item | Unit | Specification | |
Fiber Type | G.652D | ||
Mode field diameter | 1310nm | μm | 9.2±0.4 |
1550nm | μm | 10.4±0.8 | |
Cladding diameter | μm | 125.0±1 | |
Cladding non-circularity | % | ≤1.0 | |
Core/cladding concentricity error | μm | ≤0.5 | |
Coating diameter | μm | 245±5 | |
Coating non-Circularity | % | ≤6.0 | |
Coating/cladding concentricity error | μm | ≤12.0 | |
Cable cut-off wavelength | nm | ≤1260 | |
Attenuation Coefficient | 1310nm | dB/km | ≤0.36 |
1550nm | dB/km | ≤0.22 | |
Proof stress level | kpsi | ≥100 |

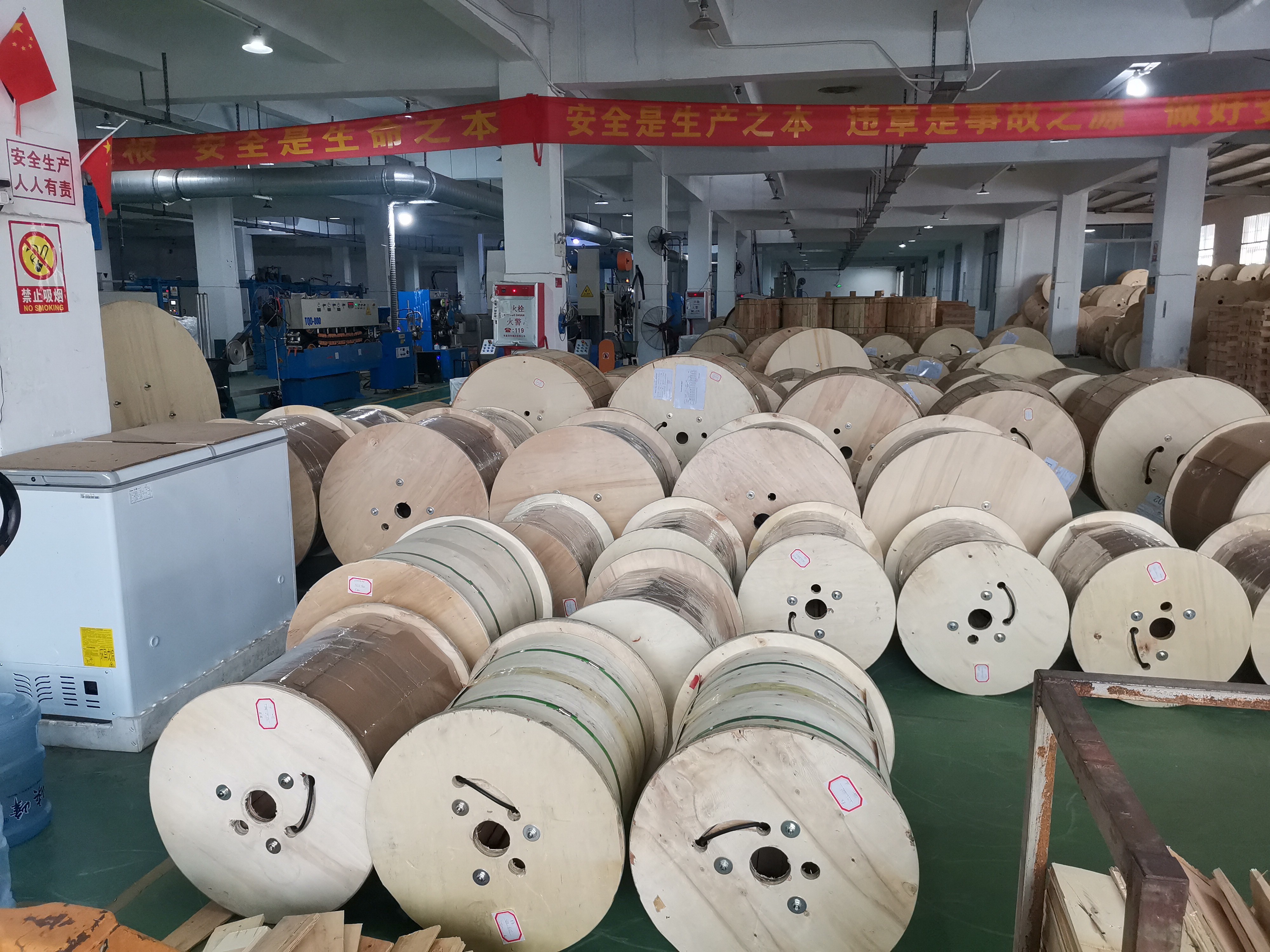

Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling
communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable for over 10 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or design any structure of fiber optic cable for you. The main poducts of our company are: optical fiber cables/FTTH Drop Cable. All of the products are widely use in
FAQ:
1.Are you a manufacturer or trade company?
Yes. We are a factory in Guangzhou,China
2.Do you provide samples? is it free or charched?
Yes, sample is available, It's free,just pay for shipping cost
3.Do you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5.Which kind of certification you have ?
ISO9001/CE/FCC/ROHS
6.What is your delivery time?
Usually 5-7 working days,It depends on order quantity
7.What is your fiber brand?
Corning,YOFC ,Fiberhome
8.What is your payment way?
T/T, L/C, Western Union
9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your requirements
