Water Resistant 48 Core 500m Span OFC ADSS Fiber Optic Cable
Contact Person : colleen
Phone Number : 8618122384446
whatsapp : +8618122384446
Minimum Order Quantity : | 1km | Packaging Details : | wooden drum/customized |
---|---|---|---|
Delivery Time : | 2-4days | Payment Terms : | Western Union, MoneyGram, T/T, L/C |
Supply Ability : | 100km per Month |
Place of Origin: | CHINA | Brand Name: | jiqian |
---|---|---|---|
Certification: | ISO9001/CE/FC/ROHS | Model Number: | ADSS 12 Core |
Detail Information |
|||
Fiber Type: | G652D | Application: | Aerial |
---|---|---|---|

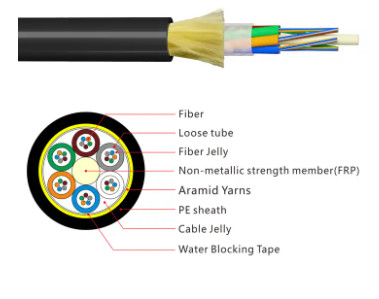

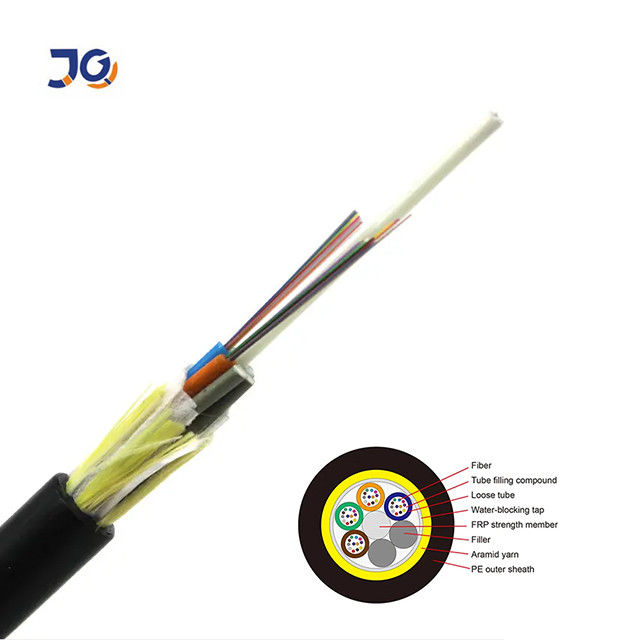

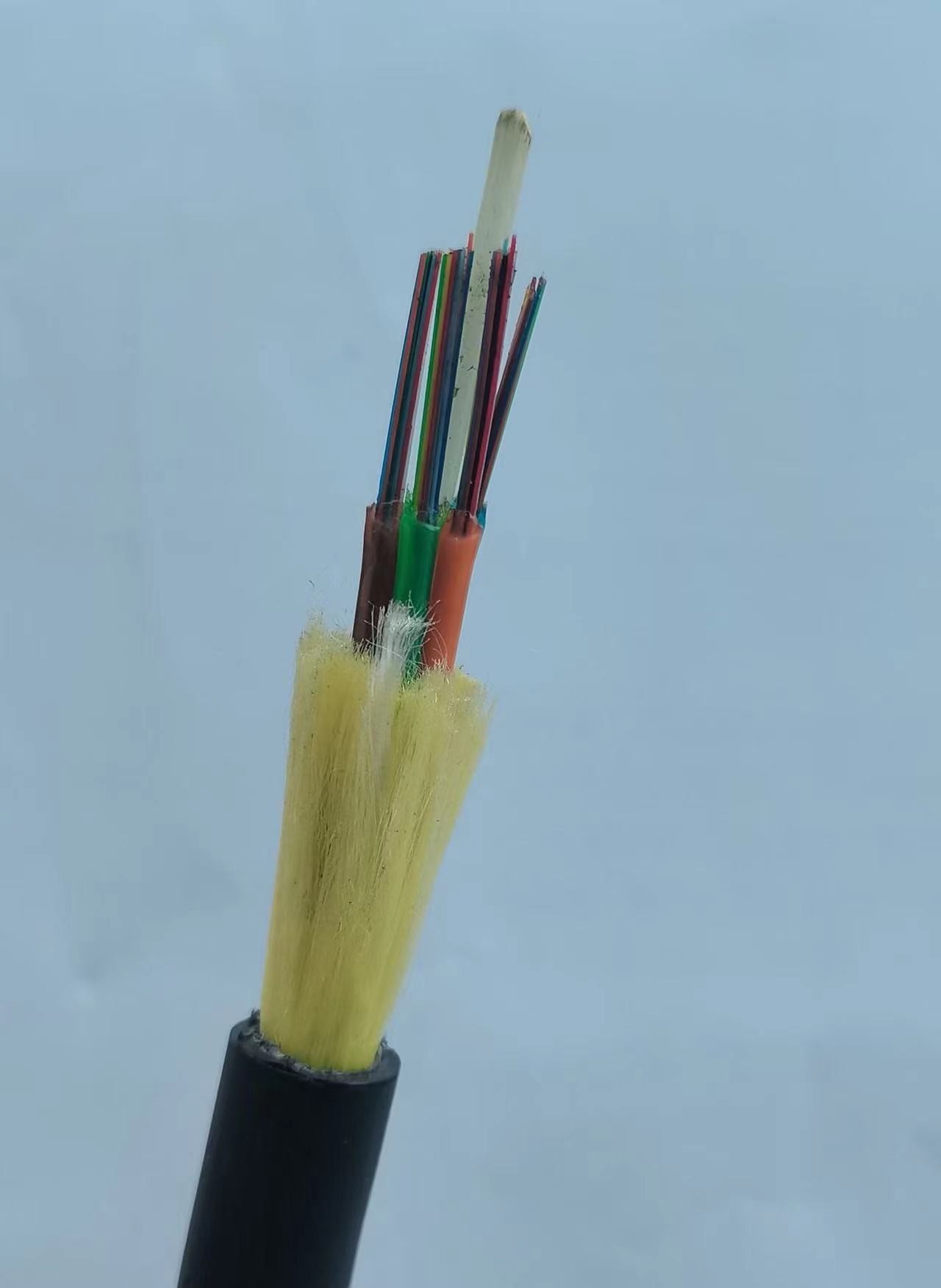

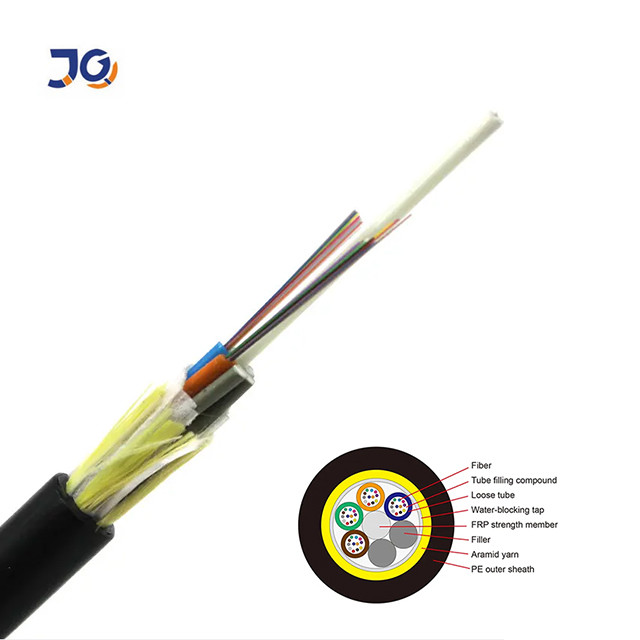

Number Of Conductors: | 12core | Structure: | Stranded Loose Tube |
Operating Temperature: | -40 ~ +60 C | Central Strength Member: | FRP |
Span: | 80m 100m 150m | Streghten Members: | Aramid Yarns |
Jacket Material: | PE /LSZH/HDPE | ||
High Light: | Armid Yarns Outdoor Fiber Optic Cable,Outdoor Fiber Optic Cable 12 Core |
Product Description
Double Jacket ADSS span 100m :
Single Jacket ADSS span 50m/100m :
G.652 | G.655 | 50/125μm | 62.5/125μm | ||
Attenuation (+20℃) |
@850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
@1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
@1310nm | ≤0.00 dB/km | ≤0.00dB/km | |||
@1550nm | ≤0.00 dB/km | ≤0.00dB/km | |||
Bandwidth(Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
@1300nm | ≥500 MHz·km | ≥500 MHz·km | |||
Numerical aperture | 0.200±0.015NA | 0.275±0.015NA | |||
Cable Cutoff Wavelength | ≤1260nm | ≤1480nm |
Characteristics
1. Can be installed without shutting off the power
2. Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach 25kV
3. Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
4. Large span lengths and the largest span is over 1000m
5 Good performance of tensile strength and temperature
6.The design life span is 30 years
Application
1:The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed.
2:For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied.
3:The dedicate design of aramid quantity and stranding process can satisfy the demand on variou.
4:Standards All Dielectric Self-Supporting Fiber cable complies with Standard IEEE P 1222 as well as IEC 60794-1.

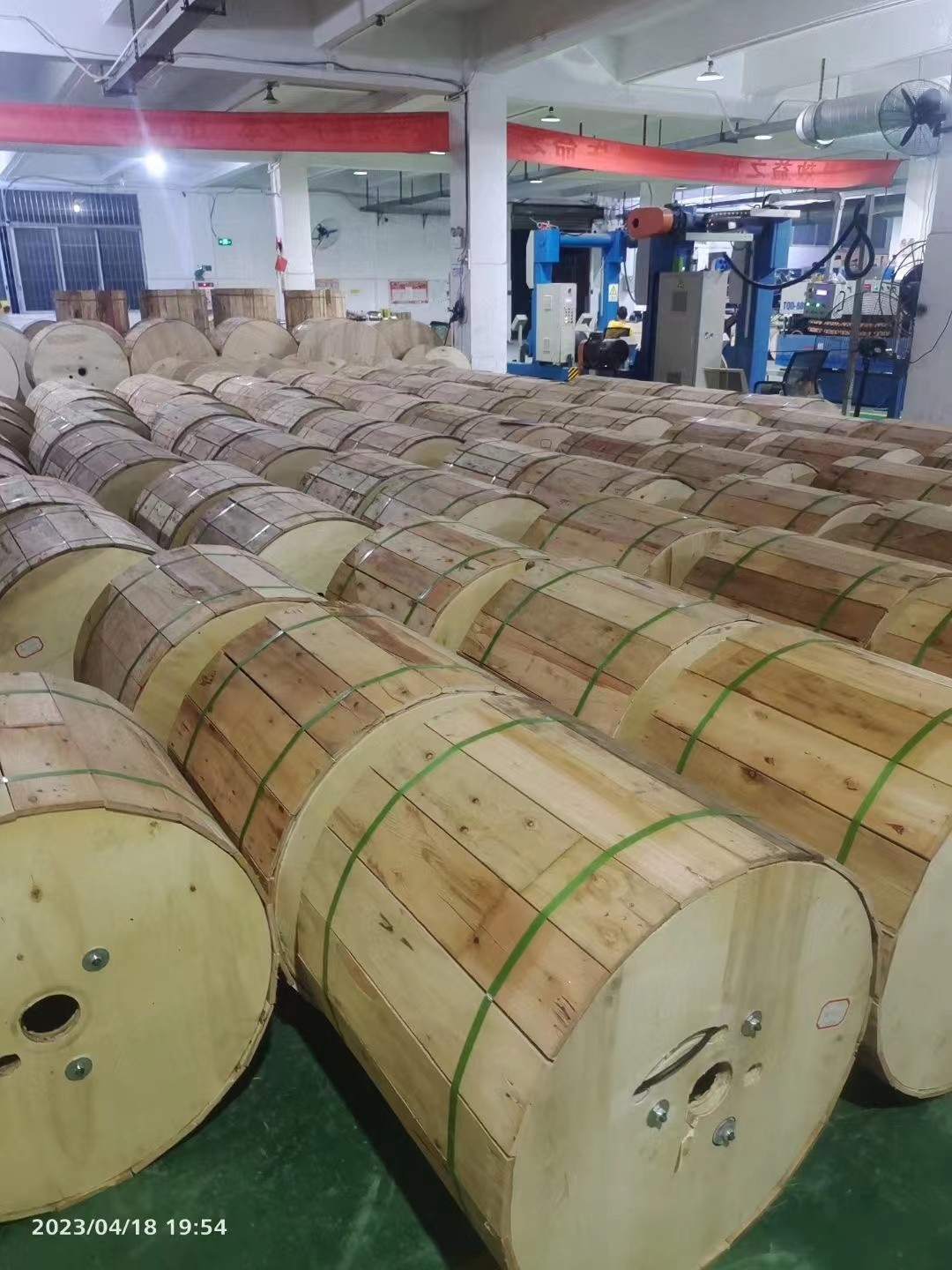

1.One wooden reel of the cable packed in a carton
The time of shipping:1-500km will be shipped in eight days,above 500km can be negotiated about
