Home ProductsOutdoor Fiber Optic CableOutdoor G652D GYTZA Single Mode 4c 12c 36c 72c 96c Flame Retardant Optical Fiber Cable

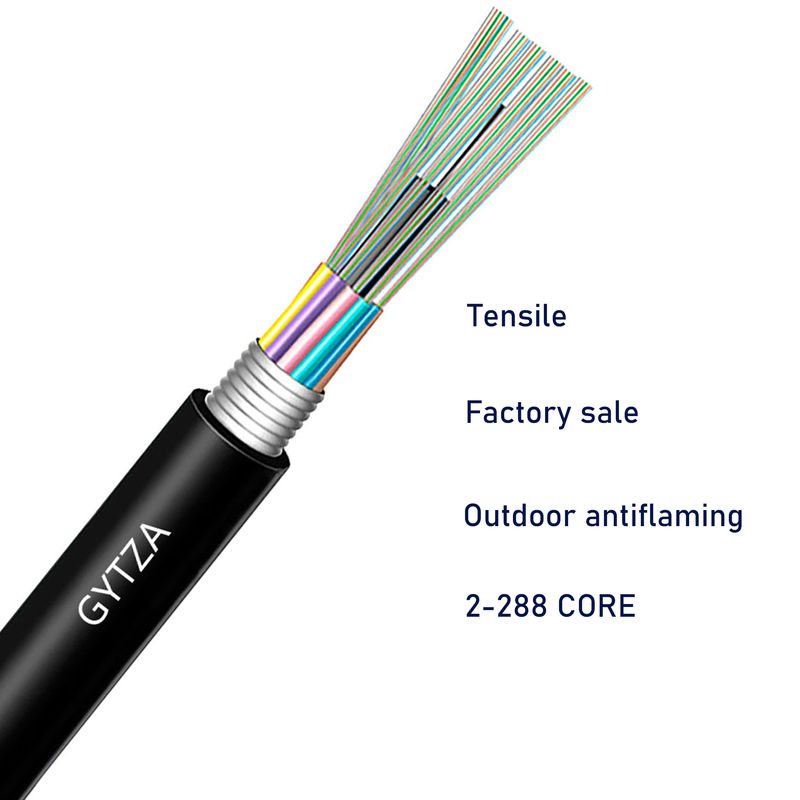

Outdoor G652D GYTZA Single Mode 4c 12c 36c 72c 96c Flame Retardant Optical Fiber Cable
Outdoor G652D GYTZA Single Mode 4c 12c 36c 72c 96c Flame Retardant Optical Fiber Cable Outdoor G652D GYTZA Single Mode 4c 12c 36c 72c 96c Flame Retardant Optical Fiber Cable Outdoor G652D GYTZA Single Mode 4c 12c 36c 72c 96c Flame Retardant Optical Fiber Cable Outdoor G652D GYTZA Single Mode 4c 12c 36c 72c 96c Flame Retardant Optical Fiber Cable Outdoor G652D GYTZA Single Mode 4c 12c 36c 72c 96c Flame Retardant Optical Fiber Cable
Contact Now

Outdoor G652D GYTZA Single Mode 4c 12c 36c 72c 96c Flame Retardant Optical Fiber Cable

Minimum Order Quantity : 1KM Price : 60-200USD/KM
Packaging Details : wooden drum Delivery Time : 3-5 days, it depends on your quantity
Payment Terms : L/C, D/A, T/T, Western Union, MoneyGram Supply Ability : 60000KM/month
Place of Origin: Guangdong,China Brand Name: Jiqian
Certification: CE/ISO9001 Model Number: GYTZA

Detail Information
Fiber Count: 2-288Core Strength Member: Metal Reinforcement
Warranty: 25 Years MOQ: 1KM
OEM: Yes Amoured: Yes
Length: 1/2/3/4/5KM Feature: Flame Retardant Sheath,LSZH Outer Sheath
High Light:

Outdoor G652D Optical Fiber Cable

,

Single Mode Optical Fiber Cable

Product Description

Product Description

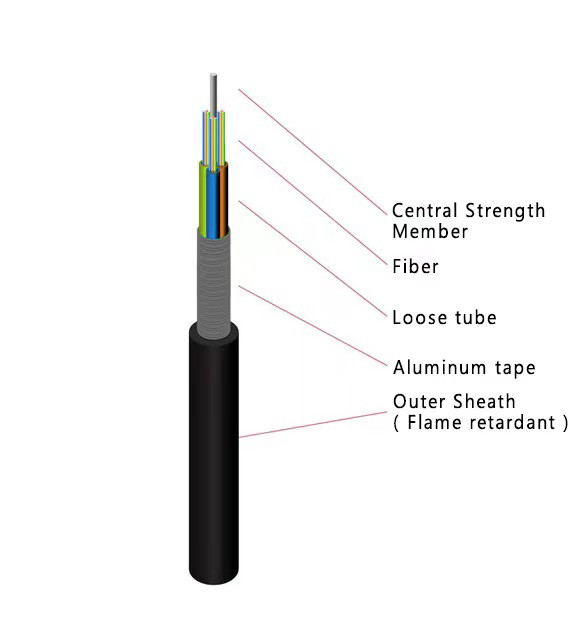

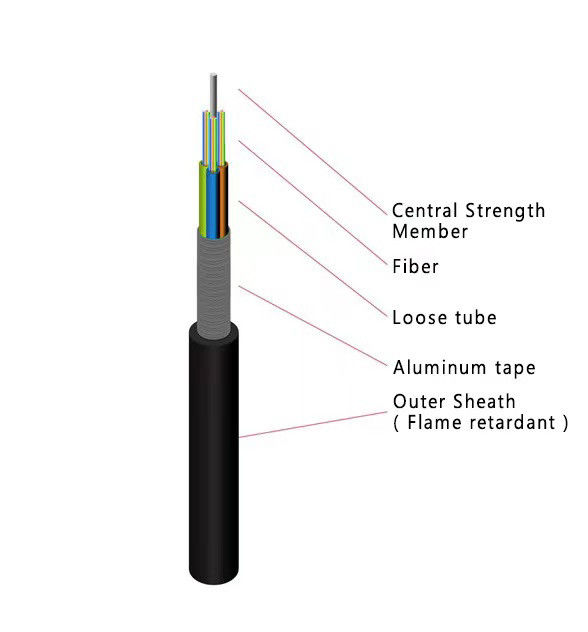

Outdoor flame retardant optical fiber cable

LZSH outer sheath
Outdoor G652D GYTZA Single Mode 4c 12c 36c 72c 96c Flame Retardant Optical Fiber Cable 0
Outdoor G652D GYTZA Single Mode 4c 12c 36c 72c 96c Flame Retardant Optical Fiber Cable 1

Application

1. aerial,overhead installation

Outdoor G652D GYTZA Single Mode 4c 12c 36c 72c 96c Flame Retardant Optical Fiber Cable 2
Outdoor G652D GYTZA Single Mode 4c 12c 36c 72c 96c Flame Retardant Optical Fiber Cable 3

Cable Specification:
Item Name:Outdoor flame retardant optical fiber cable
Optical Mode:Singlemode/Multimode
Fiber Diameters:G652, G655, 50/125μm, 62.5/125μm
Total Fiber Count:2-288
Bend Radius(Static/Dynamic):10D/20D
Working Life:More than 25 years
Application:Aerial or duct,Local network,Local network,Long distance network communication.

characteristic:
1. High quality fiber,low loss,stable network environment,faster and stable transmission
2. Flame retardant sheath to prevent burning
3. Special ointments to protect fibers
4. Armouring sheath is compressive and tensile

Outdoor G652D GYTZA Single Mode 4c 12c 36c 72c 96c Flame Retardant Optical Fiber Cable 4
Specification
Product Name
Factory price outdoor G652D GYTZA single mode 4c 12c 36c 72c 96c Flame Retardant optical fiber cable
Fiber Count
2-288 Fibers,can be customized according to customers' requirement
Construction
Center beam tube type
Fiber Type
Singlemode G.652D / G.657A1
Outer Jacket Material
high quality flame resistant material
Application
overhead,aerial
Diameter
depends on quantity of fiber and structure
Cable Length
1km,2km,3km,5km per drum,can be customized
Test Wavelength
1310/1550nm
Operation Temperature
-40℃ to +70℃
Strengthen
aramid yarn or glass yarn
Color
usually black,can be customized
Outdoor G652D GYTZA Single Mode 4c 12c 36c 72c 96c Flame Retardant Optical Fiber Cable 5
Fiber Parameter
Item
Unit
Specification
Fiber Type
G. 652
Mode field diameter
1310nm
μm
9.2 ± 0.4
1550nm
μm
10.4 ± 0.8
Cladding diameter
μm
125.0 ± 1
Cladding non-circularity
%
≤1.0
Core/cladding concentricity error
μm
≤0.5
Coating diameter
μm
242 ± 7
Coating/cladding concentricity error
μm
≤12
Cable cut-off wavelength
nm
≤12
Attenuation Coefficient
1310nm
dB/km
≤0.36
1550nm
dB/km
≤0.22
Proof stress level
kpsi
≥100
Related Products
Outdoor G652D GYTZA Single Mode 4c 12c 36c 72c 96c Flame Retardant Optical Fiber Cable 6
Packing & Delivery
Outdoor G652D GYTZA Single Mode 4c 12c 36c 72c 96c Flame Retardant Optical Fiber Cable 7
Outdoor G652D GYTZA Single Mode 4c 12c 36c 72c 96c Flame Retardant Optical Fiber Cable 8
Outdoor G652D GYTZA Single Mode 4c 12c 36c 72c 96c Flame Retardant Optical Fiber Cable 9
Outdoor G652D GYTZA Single Mode 4c 12c 36c 72c 96c Flame Retardant Optical Fiber Cable 10

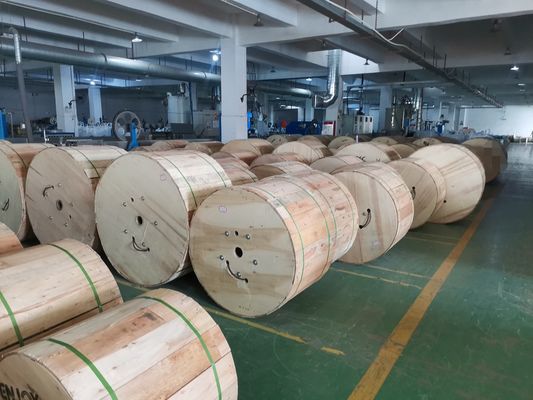

Packaing detail:
1km/ 2km/3km/4km 5km per plywooden drum

Shipping:
By sea/by air or express delivery,it depends on the order quantity
Company Profile
Guangzhou Jiqian fiber optic cable co.,ltd is a high-tech company engaged in researching, manufacturing, selling communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable and patch cord over 8 years, with ISO 9001:2015 certificate. OEM is available and we can design any kind of fiber optic cables for you.The main products of our company are optical fiber cables and related optical fiber components. All of the products are widely used in telecom, and exported to many countries,for example Egypt, Pakistan, Maldives India,Brazil and Chile etc.
