OEM 144 Core Outdoor Duct GYFTY Aerial Fiber Optic Cable
Contact Person : colleen
Phone Number : 8618122384446
whatsapp : +8618122384446
| Minimum Order Quantity : | 1 Kilometer | Packaging Details : | Wooden Drum |
|---|---|---|---|
| Delivery Time : | 2-5days | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 8000 kilometers per month |
| Brand Name: | JQ/OEM | Certification: | CE/ISO9001 |
|---|
|
Detail Information |
|||
| Place Of Origin: | Guangdong, China | Model Number: | GYXY |
|---|---|---|---|
| Type: | Outdoor Fiber Optic Cable | Number Of Conductors: | ≥ 10 |
| Fiber Type: | G652D Single Mode Or As Your Request | Length: | As Required |
| Color: | Customized | Jacket: | PE,MDPE,LSZH,PVC |
| Package: | Wooden Drum/Customized | Application: | Duct/Aerial |
| Oem: | Available | Tube: | Central Loose Tube |
| High Light: | 12 core Outdoor Fiber Optic Cable,4 core Outdoor Fiber Optic Cable,2 core Outdoor Fiber Optic Cable |
||
Product Description
Product Description:

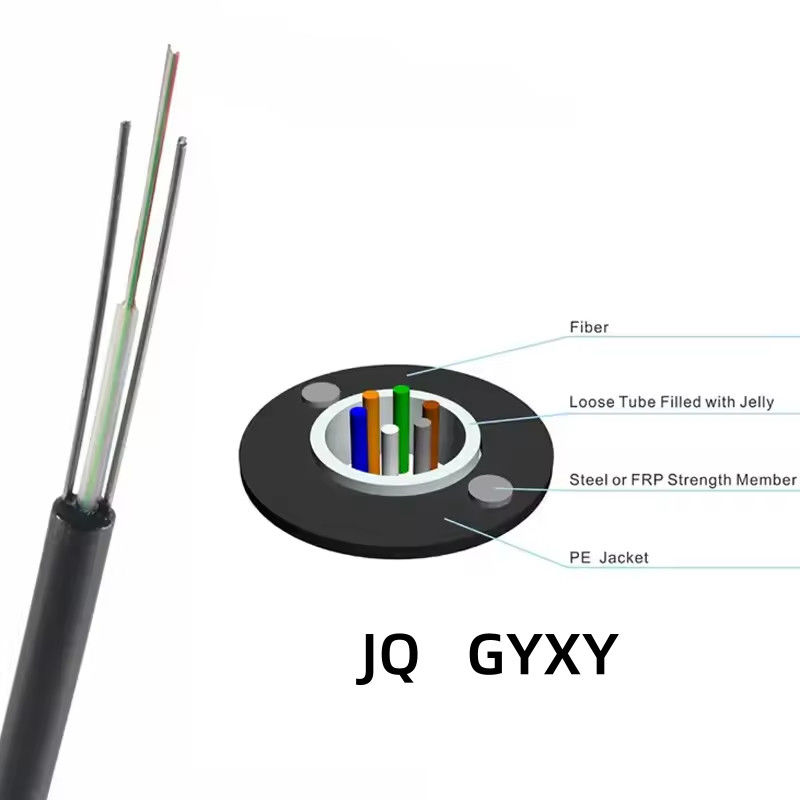

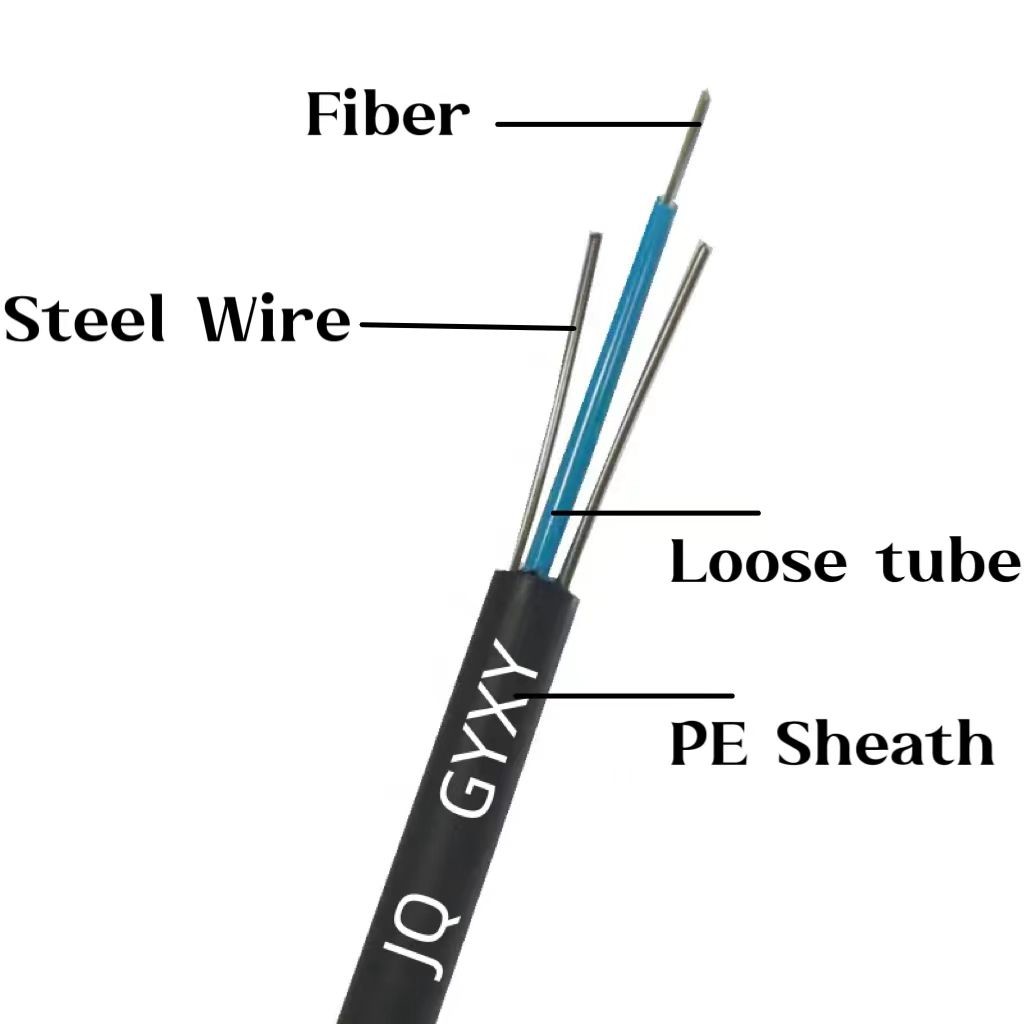

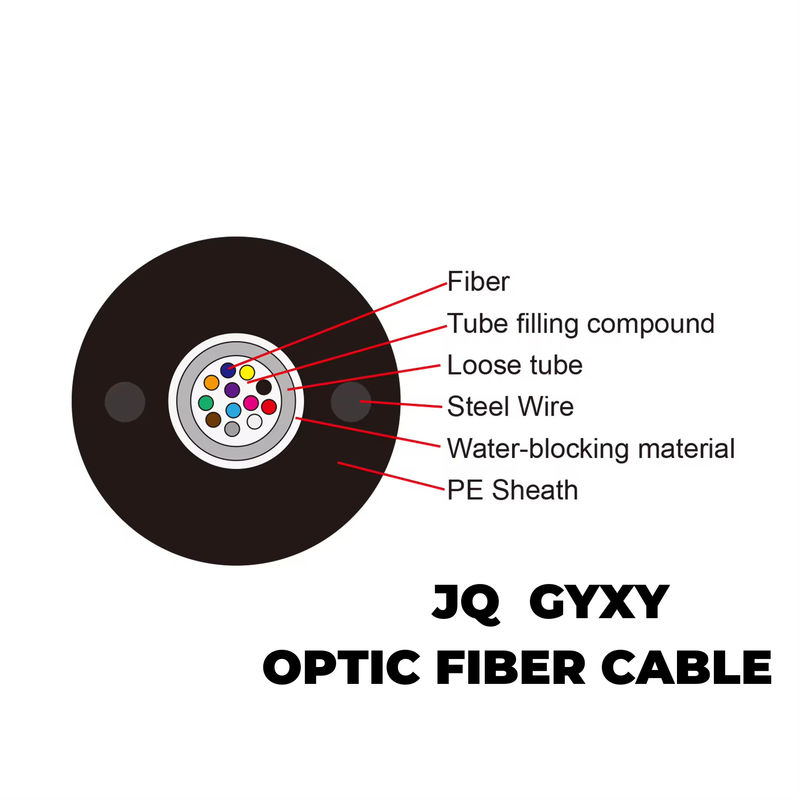

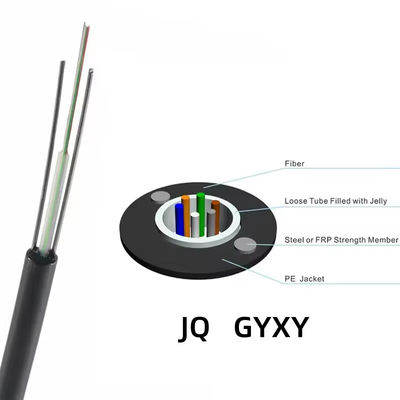

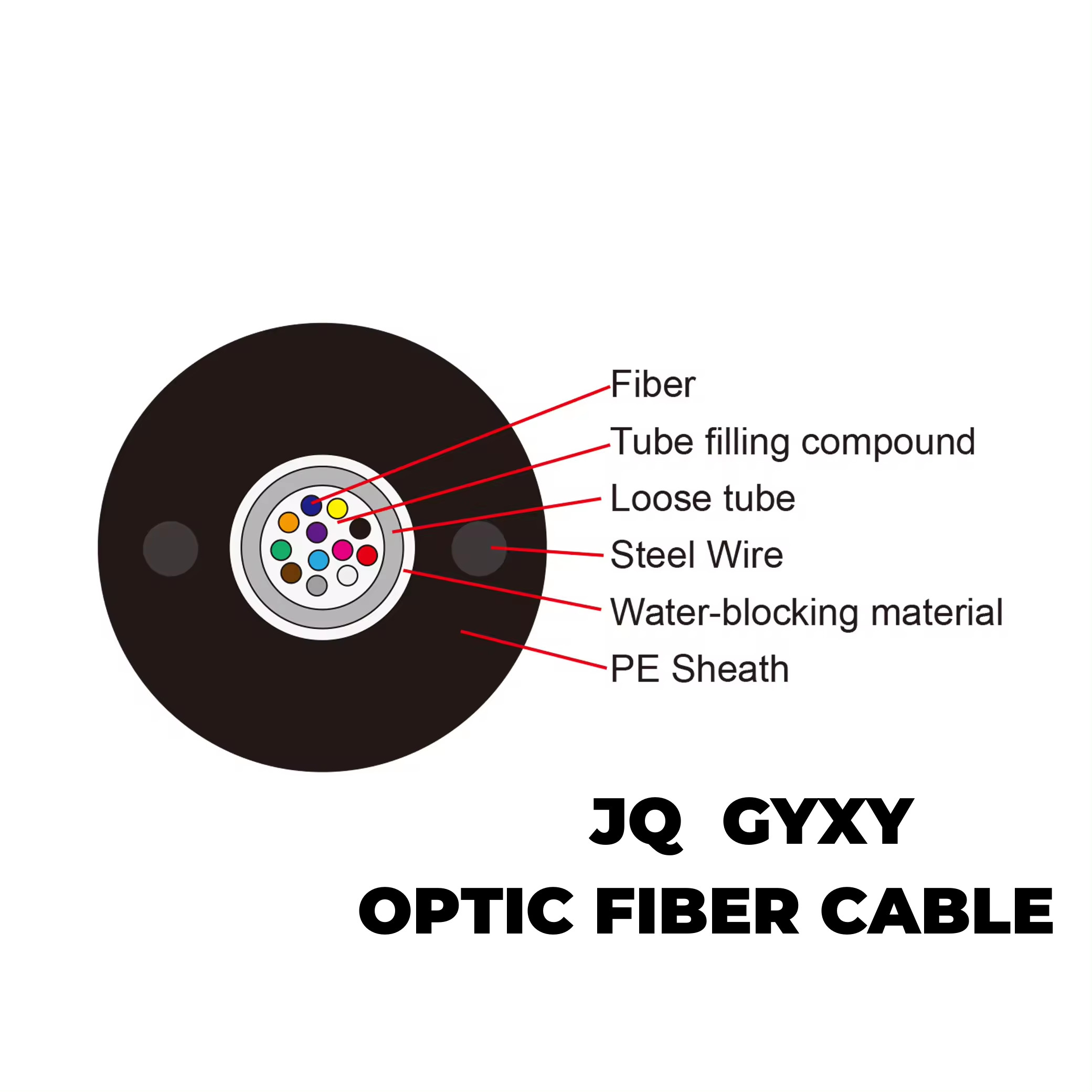

The fibers, 125μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel steel wires are placed at the two sides. The cable is completed with a polyethylene (PE) sheath.
Features:
■Good mechanical and temperature performance.
■High strength loose tube that is hydrolysis resistant.
■Special tube filling compound ensure a critical protection of fiber.
■rush resistance and flexibility.
■Two parallel steel wires ensure tensile strength.
■PE sheath protects cable form ultraviolet radiation.
■Small diameter, light weight and friendly installation.
Application:
■Usable in Duct / Aerial.
■Suitable for communication between bureaus, metropolitan network, access network
■especially suitable for the situation where high-density fibers is expected.
Specification:
| item | value |
| Model Number | GYXY |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Guangzhou,China |
| Brand Name | Haiso/jiqian |
| Structure | uni-tube non armored |
| Number of Conductors | ≥ 10 |
| Fiber type | G652.D |
| Fiber | single mode |
| Filling compound | Jelly |
| Tube | Central loose tube |
| Loose tube | PBT |
| strength member | steel wire |
| Material of jacket | PE |
| Color | Customized |
| Package | Fumigation free wooden drum/Customized |
| Operating/Storage Temperature | - 40 ~ 70 ℃ |
| Application | Outdoor aerial and duct |
| Use | FTTX |
| Certificate | CE/ROHS/ISO9001 |
Optical Characteristics:
| 50/125μm | 62.5/125μm | |
| G.652D | ||
| Attenuation (+20℃) | @850nm | |
| @1300nm | ||
| @1310nm | ≤0.34 dB/km | |
| @1550nm | ≤0.21 dB/km | |
| Bandwidth (Class A) | @850nm | |
| @1300nm | ||
| Numerical Aperture | ||
| Cable Cut-off Wavelength λcc | ≤1260nm | |
Company Profile:
Guangzhou Jiqian Fiber Optic Cable Co.Ltd. is located in 2nd Floor,Building B3,Building 3 No.43 Lixin 9th Road,Xintang Town,Zengcheng District,Guangzhou city,Guangdong province,China.It is a large-scale high-tech specialized joint-stock enterprise that integrates scientific research, development,production, and sales. It specializes in producing various types and specifications of optical cables with 2-288 cores. The company adheres to the corporate spirit of "integrity, speed, flexibility, efficiency, and innovation", and strives for perfection, appreciation for customers, and paving the way for success, Adhere to the standard that "customer satisfaction is the most important measure of our performance". We promise to work together with you with high-quality products, discounted prices,and first-class services to create a brilliant career.
We sincerely welcome customers all over the world to visit our factory and build long term relationship with each other.
WHY CHOOSE US:
Certification:
FAQ:
1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
4. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
